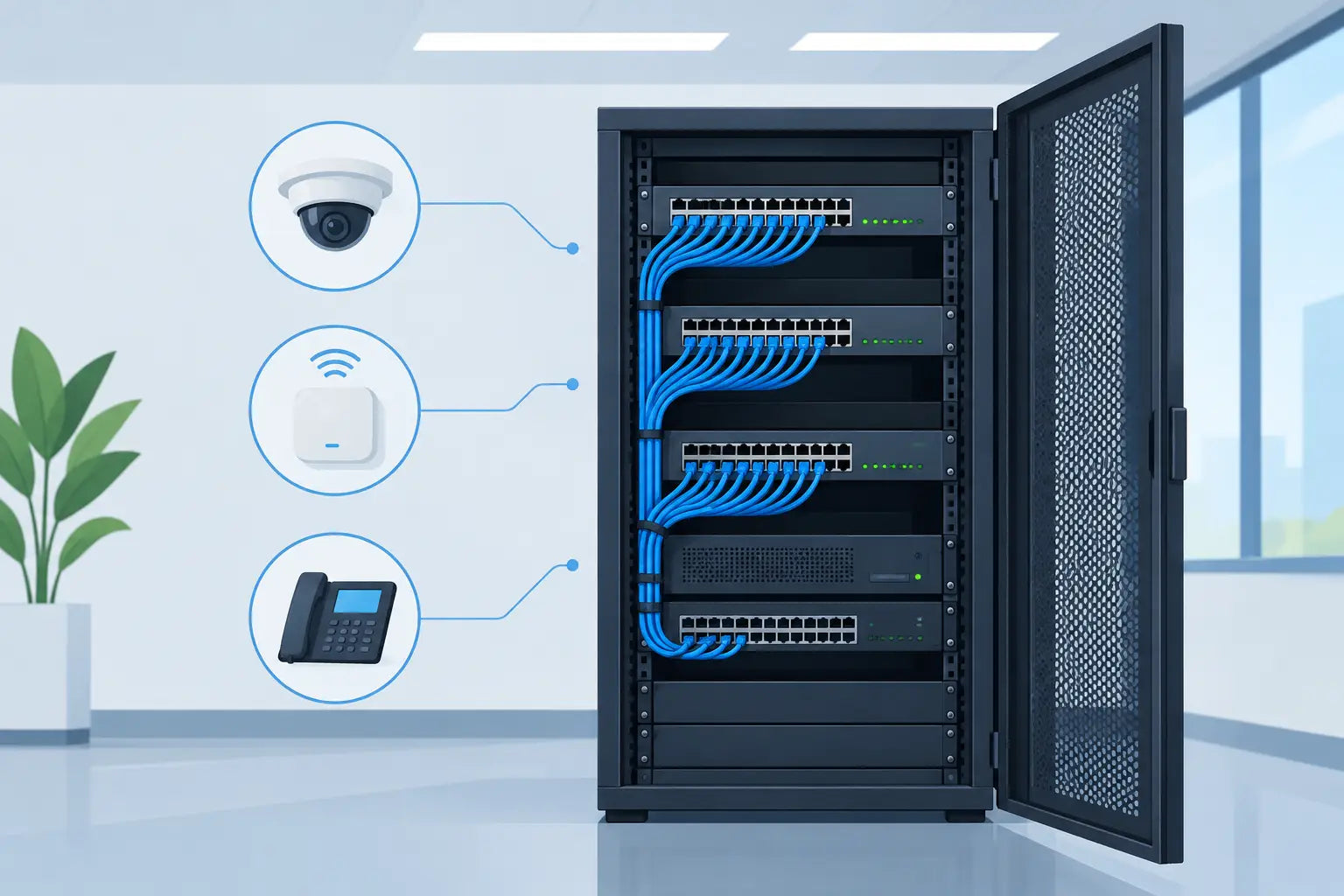

PoE Deployment Guide for Clean, Reliable Racks
, 7 min reading time
This PoE deployment guide helps installers size power budgets, plan cable runs, protect switch capacity, and build clean, serviceable network racks with confidence.
A camera that disappears from a switch after dark, an access point that reboots under load, or a rack that becomes impossible to trace six months later usually points to the same problem: PoE was treated as a cabling convenience rather than a power system. This PoE deployment guide approaches it the way a professional installation deserves - as a coordinated plan for switch capacity, cable performance, physical layout, and future serviceability.
Power over Ethernet can remove a considerable amount of local power hardware from ceilings, walls, and remote enclosures. That simplicity is valuable, but it moves the design responsibility into the rack. The switch, patching, cable pathways, labeling, and heat management now have to work together. A clean result is not only more attractive. It is faster to commission, easier to expand, and far less stressful to troubleshoot.
Start the PoE deployment guide with the endpoint load
Do not begin by counting ports. Begin by documenting every powered endpoint and the power it may actually request. Access points, PTZ cameras, door controllers, intercoms, LED controllers, VoIP phones, and small switches can have very different startup and peak requirements.
Manufacturer figures deserve careful reading. A listed maximum draw may apply when an access point is operating multiple radios at full power, or when a camera heater, illuminator, and motor are active simultaneously. That maximum is not always the normal draw, but designing only around typical consumption is a shortcut that can fail at the least convenient time.
For each device, record its PoE standard, maximum wattage, location, cable length, and whether its load changes with conditions. A fixed indoor camera has a predictable demand. An outdoor PTZ camera with infrared lighting is a different class of endpoint entirely. It may need 802.3at PoE+ or 802.3bt power, especially during cold, dark conditions.
The standards provide a useful first filter. Original 802.3af PoE is suitable for many phones, basic cameras, and low-power access points. 802.3at PoE+ supports higher-demand access points and cameras. 802.3bt, often described as Type 3 or Type 4, is intended for substantially higher loads. The power available at the powered device is lower than the power supplied by the switch because cable resistance creates loss. Check the endpoint requirement at the device, not simply the headline wattage printed on the switch carton.
Size the switch budget, not just the port count
A 24-port PoE switch with a 195W budget does not provide 195W on every port. Its total budget is shared across all active powered devices. This distinction is where many otherwise tidy deployments become unreliable.
Add the maximum power requirement of your planned endpoints, then leave meaningful headroom. For a predictable office with fixed phones and access points, 20 to 30 percent reserve may be reasonable. For mixed surveillance, outdoor devices, or future expansion, 30 to 40 percent is safer. Headroom absorbs startup demand, temperature-related load changes, replacement hardware with higher requirements, and the inevitable device added after the project is considered complete.
Consider a small example. Twelve access points at 18W maximum, six cameras at 12W, and four PoE phones at 7W produce a planned load of 316W. A 370W switch may operate the installation, but it leaves little room for growth or peak behavior. A switch with a larger budget, or a split across two properly sized switches, is the more professional choice.
Redundancy is also a design decision, not a universal requirement. A single high-budget switch may simplify a compact rack. Separating cameras from business-critical wireless and voice devices can improve fault isolation and make maintenance less disruptive. The best approach depends on the consequence of a switch failure, the physical layout of the site, and whether UPS runtime is available.
Verify the upstream power path
A switch power budget only matters if the electrical supply can support it. Confirm the circuit capacity, UPS rating, power distribution arrangement, and expected battery runtime. A large PoE switch can consume significant power before its own operating overhead is considered.
Where uptime matters, calculate the UPS load using realistic PoE demand and test the runtime under load. A UPS that supports the switch for an hour with idle endpoints may provide far less time once access points, cameras, and phones are drawing power. Keep power cords dressed separately from data patching wherever possible, and avoid turning the rear of the rack into an untraceable bundle.
Choose cable for the installation you need to maintain
Solid copper Category 6 or Category 6A cable is the sensible baseline for most professional PoE installations. It provides predictable performance, handles modern Ethernet speeds, and manages PoE more comfortably than low-grade alternatives. Copper-clad aluminum cable has no place in a permanent PoE run. Its higher resistance and poorer mechanical characteristics create unnecessary risk in a system designed to deliver power as well as data.
Cable quality matters more as power and bundle density increase. Higher current creates more heat, and heat can affect insertion loss, power delivery, and long-term cable performance. Large, tightly packed bundles in warm ceiling spaces deserve special attention. Use cable rated for the environment, respect bend radius, and avoid crushing runs with overtightened ties.
Channel length is another practical constraint. The familiar 100-meter Ethernet channel limit includes permanent cabling and patch cords. Long runs also increase voltage drop. A device near the maximum channel length may still link successfully, yet be less tolerant of peak PoE demand. If a high-power endpoint is distant, calculate carefully and consider a closer intermediate distribution point rather than hoping the margin is sufficient.
Design the rack around a service path
A polished PoE rack makes the power path visible. A technician should be able to identify the switch port, patch panel position, cable label, and endpoint without dismantling the installation. This is where rack layout becomes operational engineering rather than decoration.
Place patch panels close to their corresponding switches, with horizontal cable management positioned to support short, controlled patch leads. Keep patch leads long enough to route cleanly through managers without tension, but not so long that excess cable fills the rack. Consistent cable lengths and colors make a surprising difference when tracing faults or expanding the system later.
For many builds, a practical vertical order is patch panel, horizontal manager, PoE switch, then another manager for the next patching field. The exact arrangement depends on switch depth, rack size, airflow direction, and whether fiber uplinks or additional non-PoE switches are present. Do not copy a layout blindly. Design around the equipment you are actually installing.
Use a labeling scheme that survives real work. Labels should identify both ends of every permanent link and correspond to a port map that records location, device type, VLAN purpose, and switch port. A label such as CAM-12 is useful only if everyone can quickly determine where CAM-12 is and what it serves. Printed labels, consistent orientation, and documented naming are small disciplines that prevent expensive callouts.
Commission PoE deliberately
Commissioning should confirm more than link lights. Before handover, verify the physical, electrical, and logical behavior of each powered port.
- Confirm each endpoint negotiates the intended PoE standard and receives stable power.
- Check switch power consumption against the planned budget, then test high-demand operating states where applicable.
- Verify link speed, VLAN assignment, addressing, and endpoint functionality.
- Inspect patching, bend radius, labels, grounding, and cable dressing before closing the rack.
- Save a port map, switch configuration backup, and photos of the finished rack.
Plan for the next device
Leave physical and electrical capacity for growth. Spare switch ports are useful, but so are spare patch-panel positions, controlled cable pathways, rack space, and a documented reserve in the PoE budget. A rack that is perfectly full on day one is already difficult to maintain.
NetPatch customers often focus on the finished appearance of a rack, and rightly so. But the best-looking installations are usually the ones designed with disciplined margins: enough cable management for each patch lead, enough power for each endpoint, and enough order that a future change does not unravel the original work.
Treat every powered port as a documented power circuit with a network connection attached. That mindset produces racks that stay clean when the first change request arrives, which is the real test of a successful deployment.
