Description

USW-WAN-RJ45: UniFi WAN Switch with 3x 10GbE Multi-Gigabit RJ45 Ports, Dual AC Power Redundancy, and Centralized Management
Reliable copper-based WAN interface with enterprise-grade redundancy and full UniFi integration.

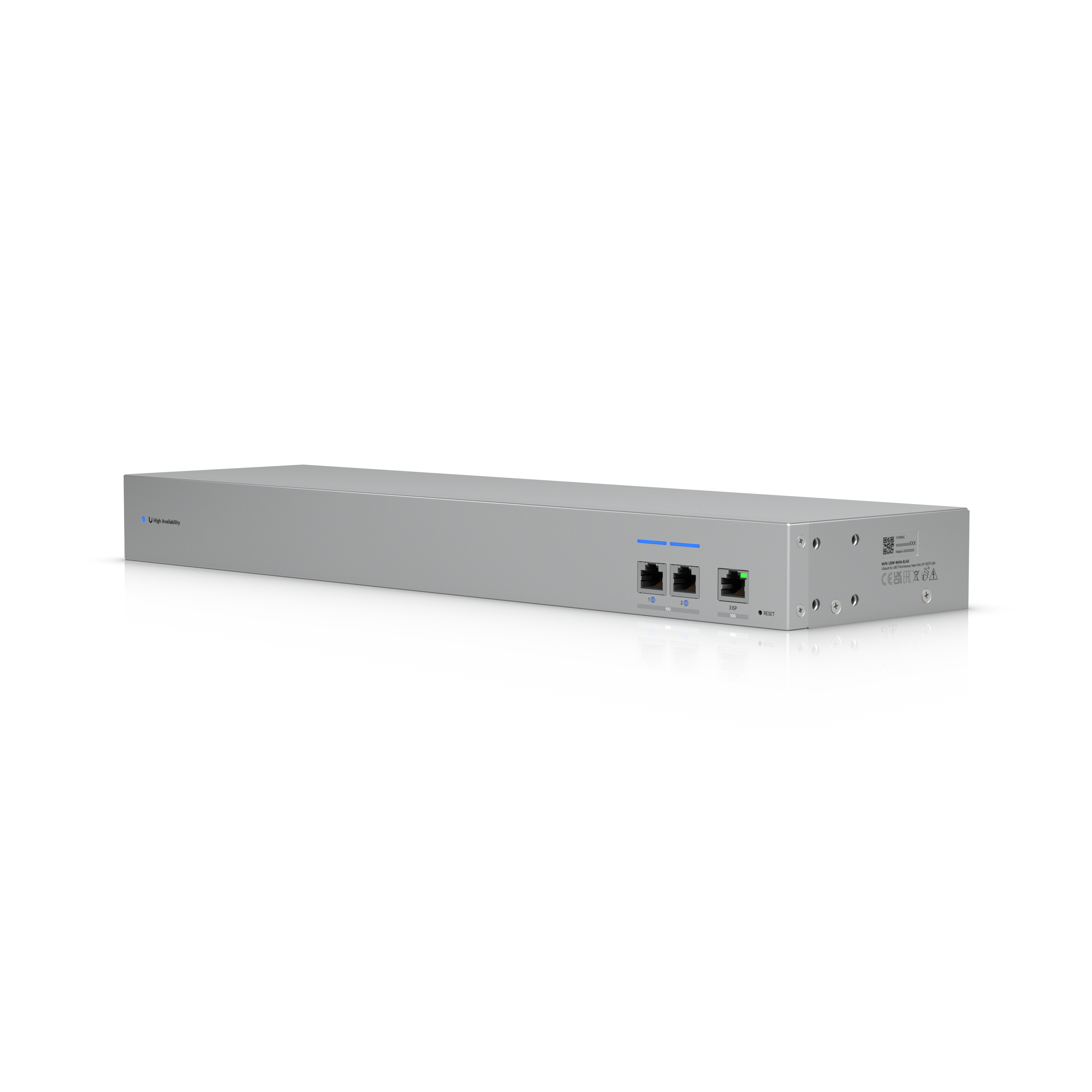

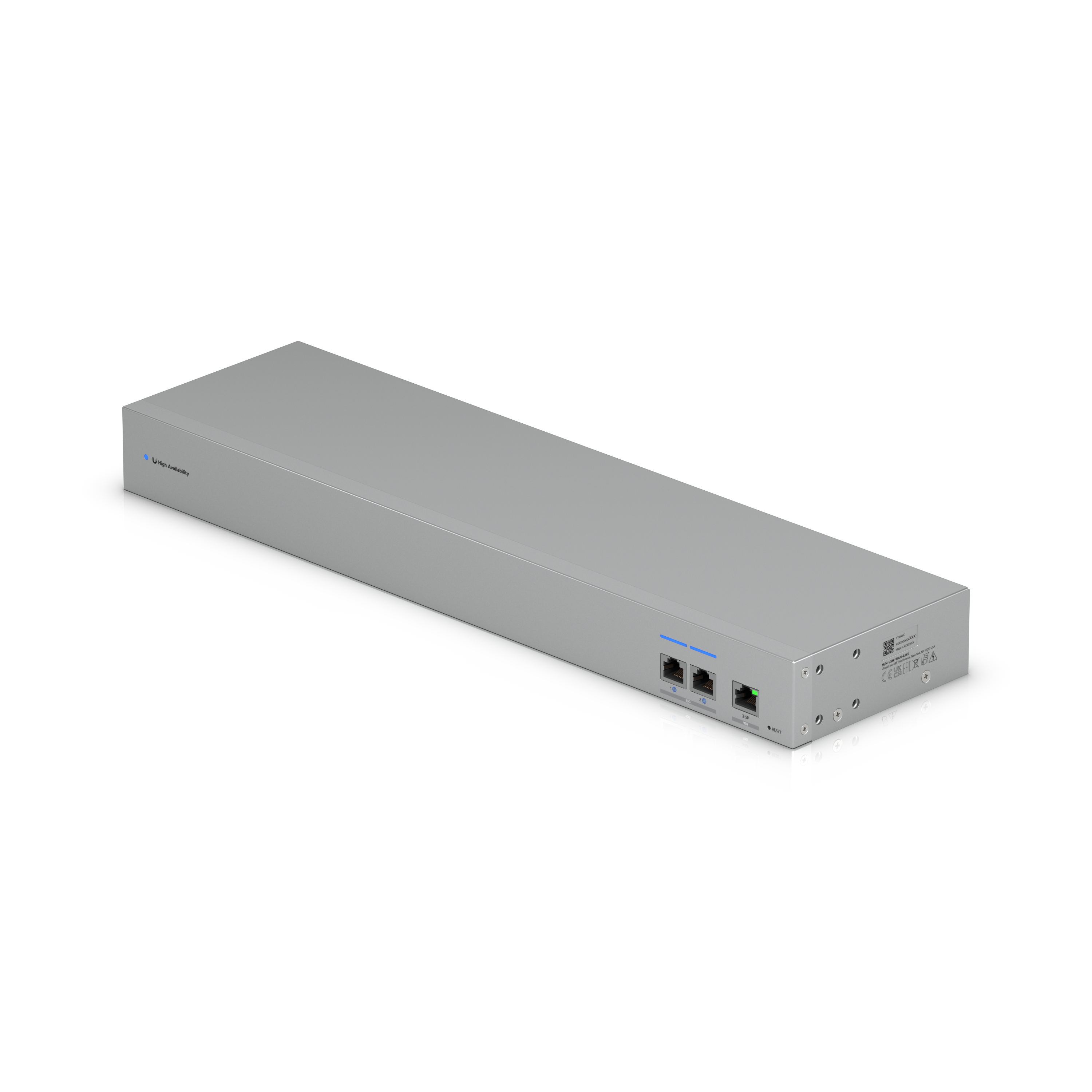

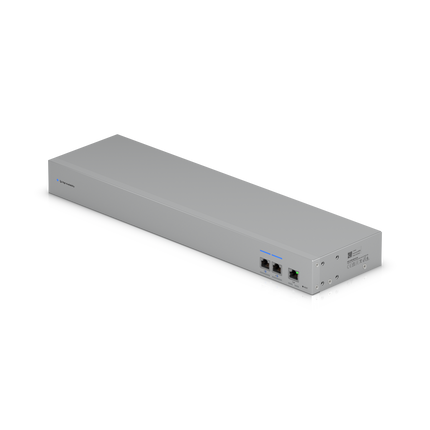

Ubiquiti UniFi Switch WAN RJ45 (USW-WAN-RJ45): Reliable 10GbE Copper WAN Interface with Full Redundancy

The Ubiquiti UniFi Switch WAN RJ45 (USW-WAN-RJ45) is the copper variant of Ubiquiti’s specialized edge switch, designed for WAN aggregation and handoff over Multi-Gigabit Ethernet (RJ45).

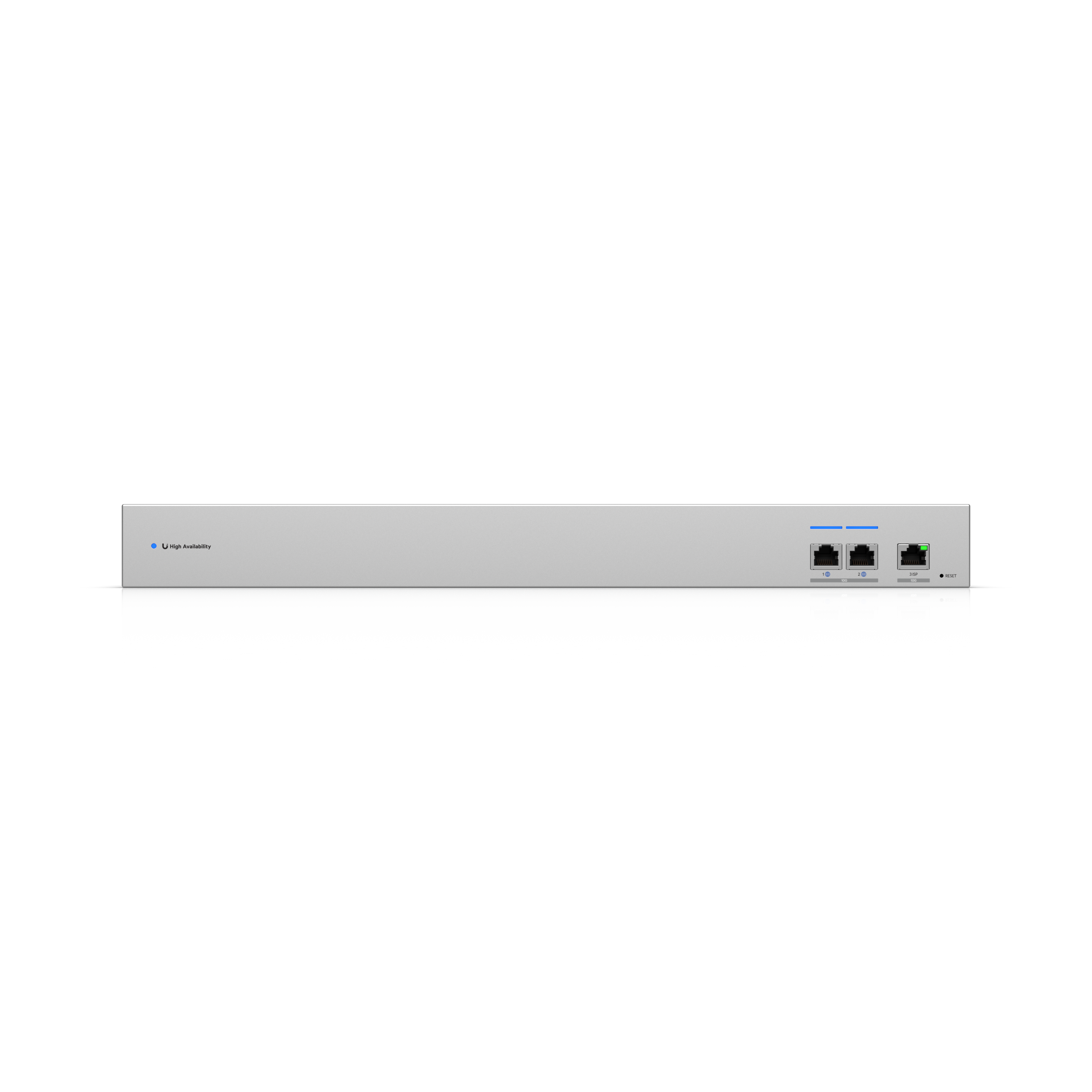

It features three 10GbE RJ45 ports (10G/5G/2.5G/1G/100M) plus an additional Gigabit RJ45 port for management or auxiliary connectivity.
Its key advantage lies in dual internal AC power supplies, providing critical redundancy and maximum reliability for mission-critical deployments.

Compact and 1U rack-mountable, the USW-WAN-RJ45 combines rugged steel construction with low power consumption (18W max), making it ideal for enterprise and service provider environments.
Fully managed through the UniFi Network platform (v9.1.119 or later), it offers centralized monitoring, configuration, and firmware management, keeping full visibility over WAN operations.

Why Choose the USW-WAN-RJ45?

Universal Multi-Gigabit RJ45 Ports

Includes 3x 10GbE RJ45 ports supporting 10G / 5G / 2.5G / 1G / 100M, plus 1x additional GbE port for management or auxiliary connections.

Critical Power Redundancy

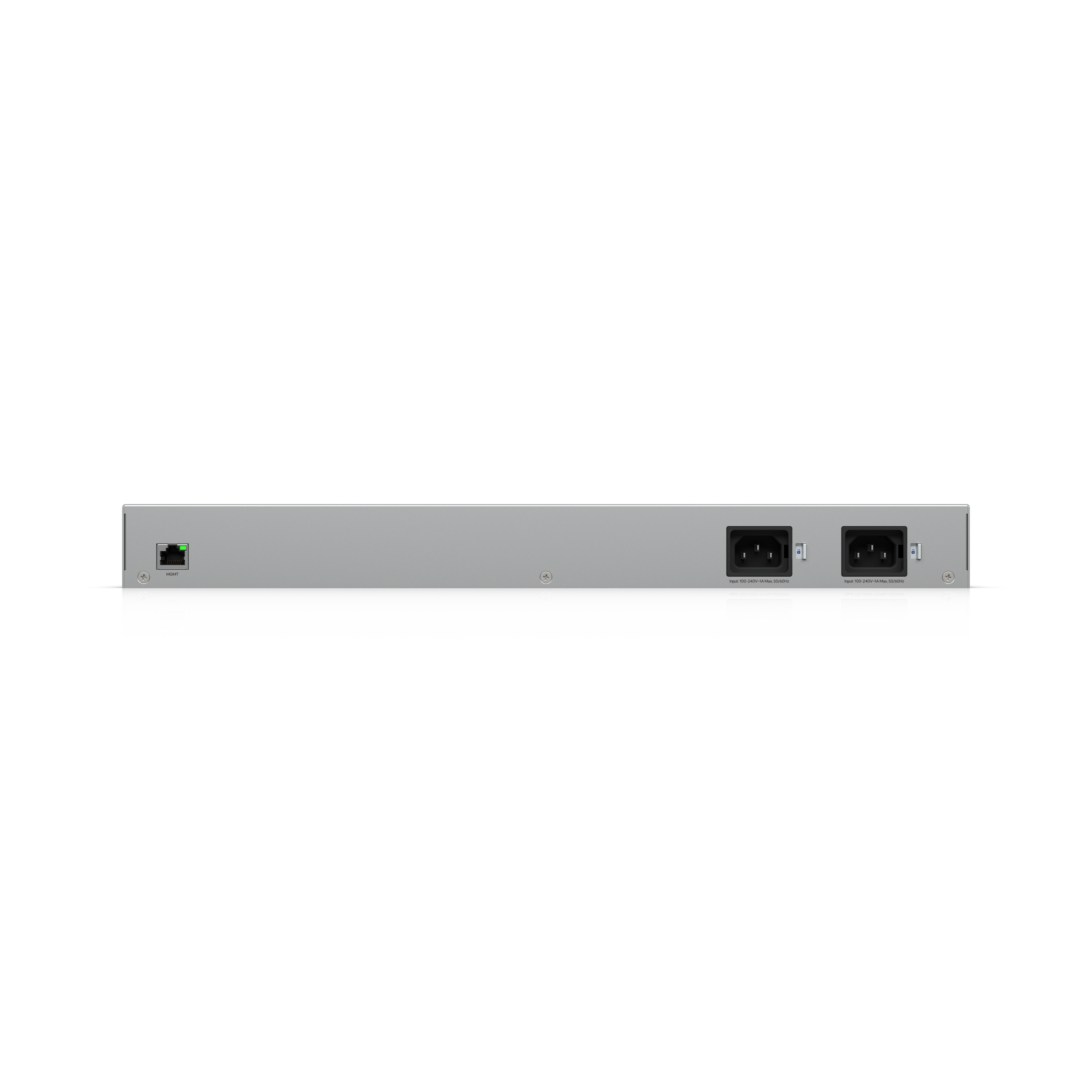

Equipped with dual internal AC power supplies, ensuring continuous operation even if one PSU fails.

Compact, Durable 1U Design

Slim 1U rack-mount format with short depth and robust steel chassis, consuming only 18W, perfect for edge racks or ISP installations.

Centralized UniFi Network Management

Fully integrated into the UniFi Network application, enabling unified configuration, firmware updates, and monitoring alongside other UniFi devices.

Copper-Based WAN Focus

Purpose-built for Ethernet-delivered WAN and backbone connections, ideal where ISPs provide service via RJ45 Multi-Gigabit handoffs.

Key Specifications

• Ports: 3× 10GbE RJ45 (Multi-Gig), 1× GbE RJ45

• Supported Speeds: 10G / 5G / 2.5G / 1G / 100M

• Power: Dual internal AC PSUs (redundant)

• Max Power Consumption: 18W

• Form Factor: 1U rackmount (short-depth)

• Management: UniFi Network (v9.1.119+)

• Construction: Reinforced steel chassis

Ideal For

Businesses with Multi-Gigabit RJ45 WAN Connections

Perfect for environments where ISPs deliver service via 2.5/5/10GbE copper interfaces.

High-Availability Infrastructure

Designed for mission-critical networks requiring redundant AC power for maximum uptime.

UniFi Ecosystem Users

For organizations that need to integrate Multi-Gigabit WAN interfaces into their existing centralized UniFi management platform.

Multi-WAN Aggregation Scenarios

Ideal for combining multiple RJ45 WAN connections from different ISPs or internal network segments.

Ethernet Demarcation Points

Functions as a managed Network Interface Device (NID) in enterprise or service provider deployments.
