Description

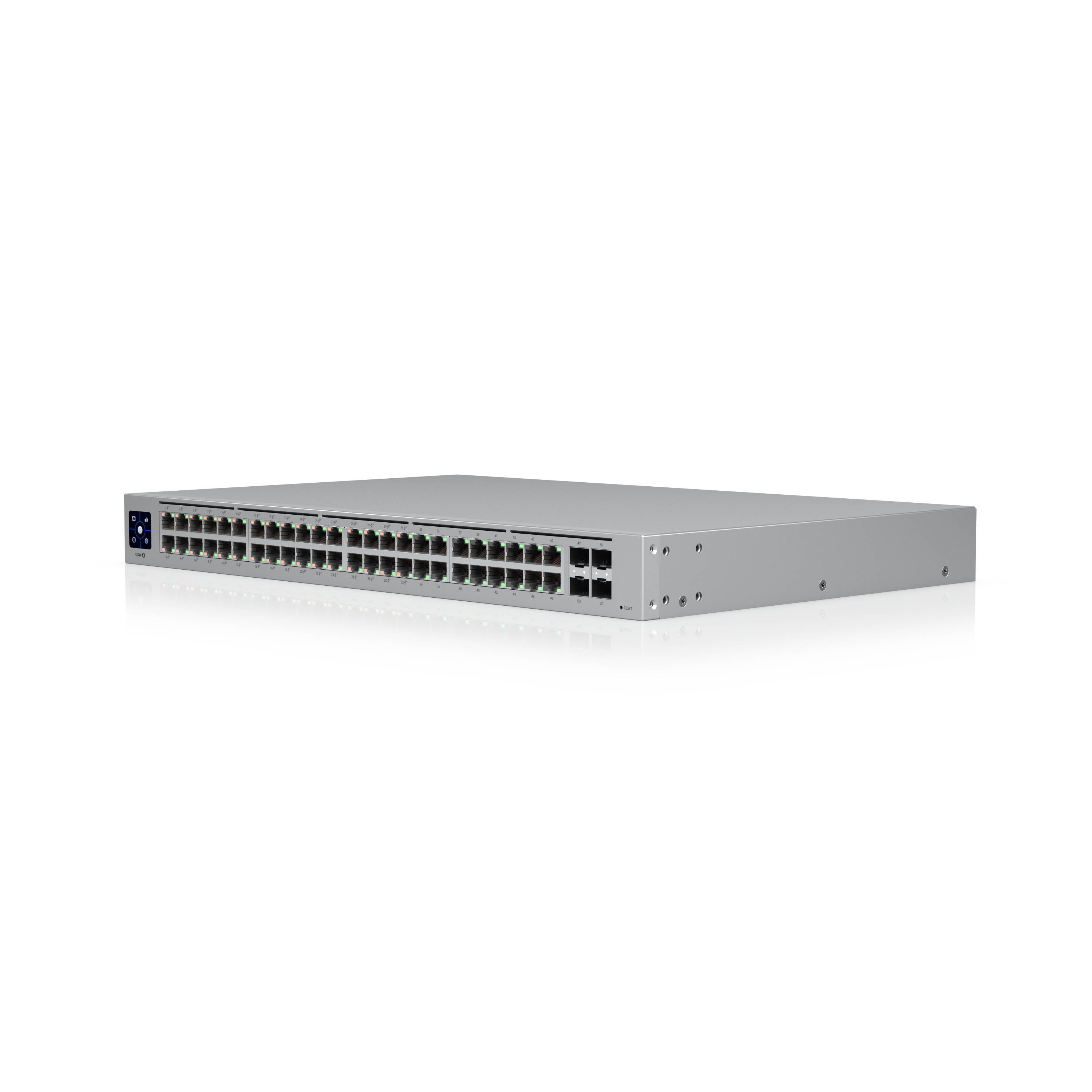

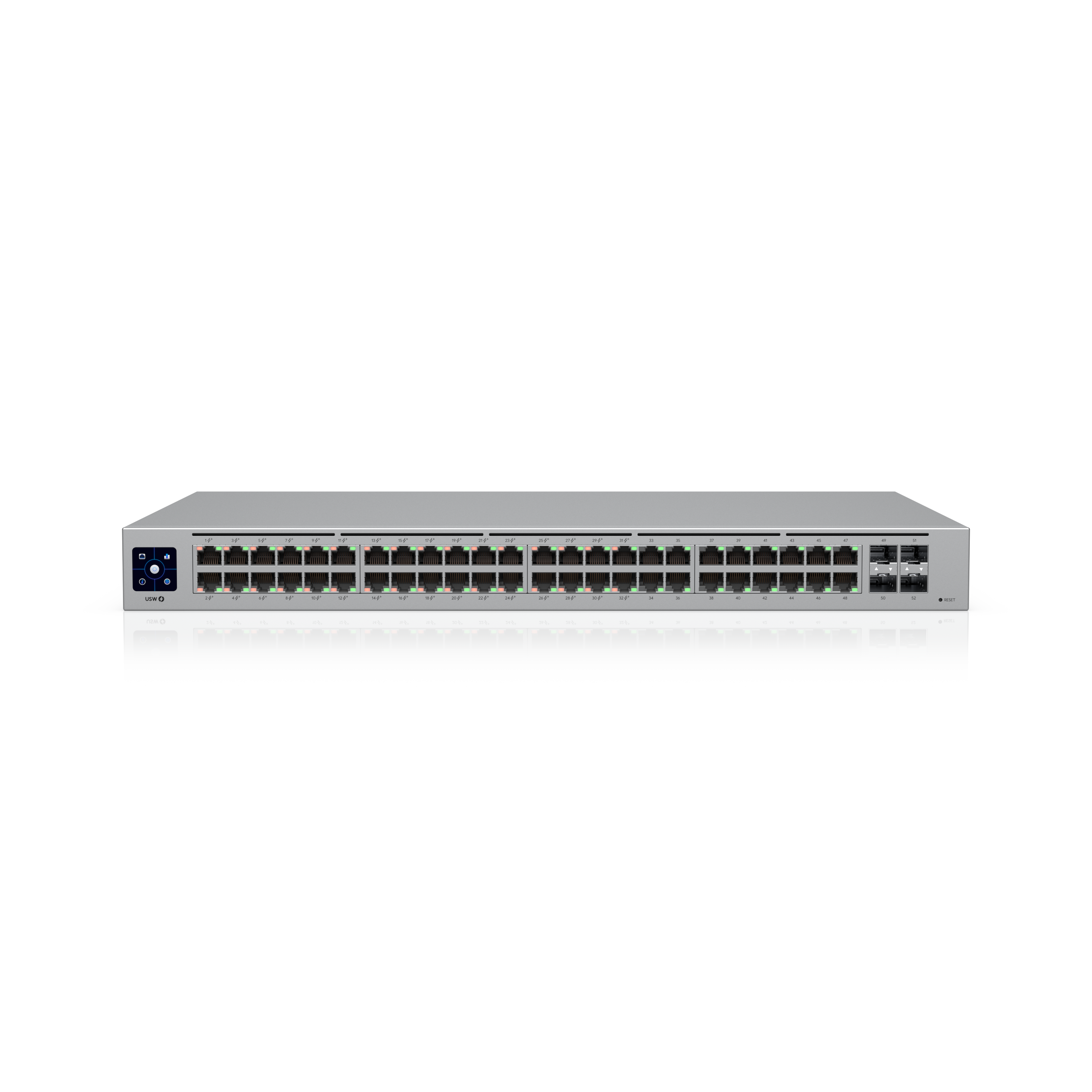

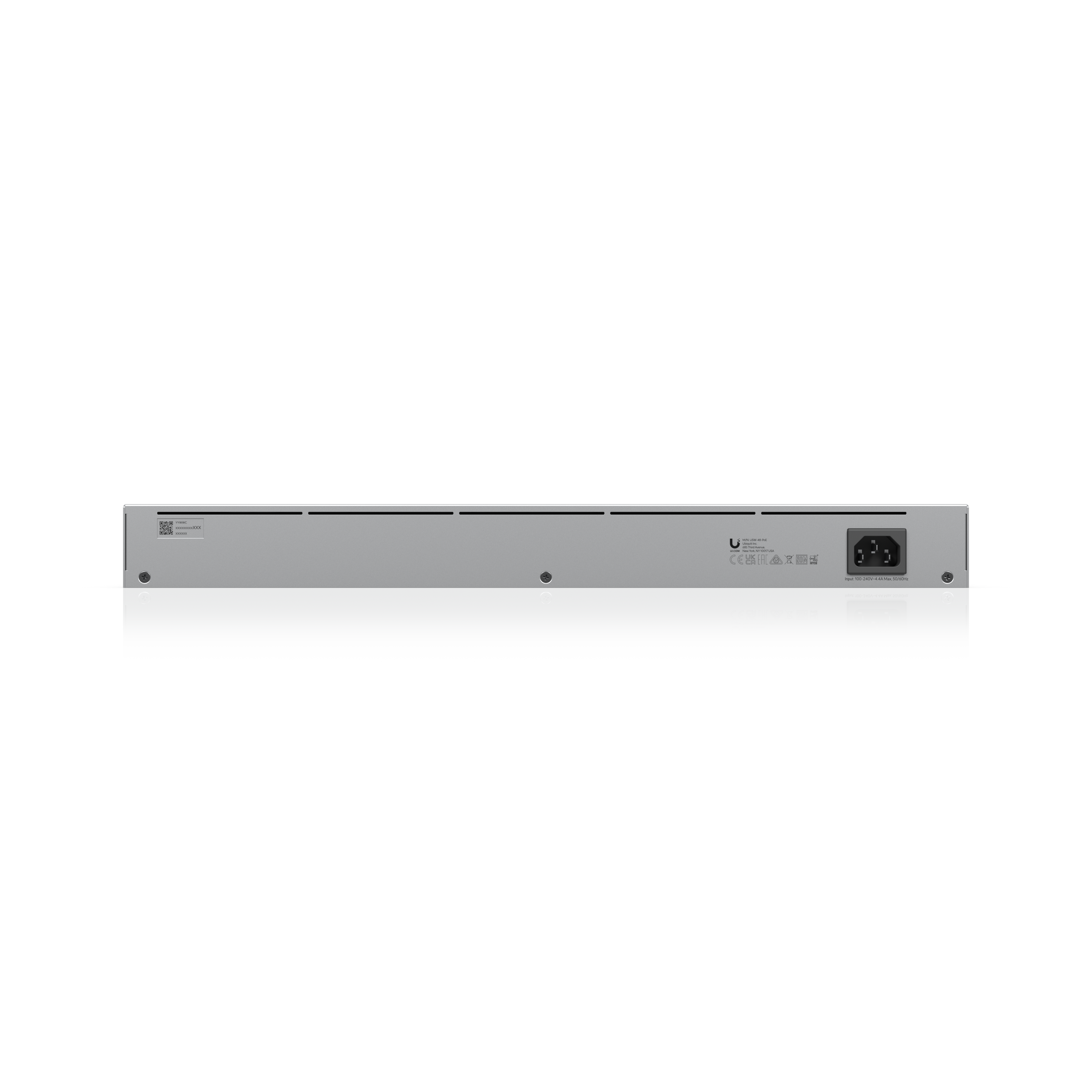

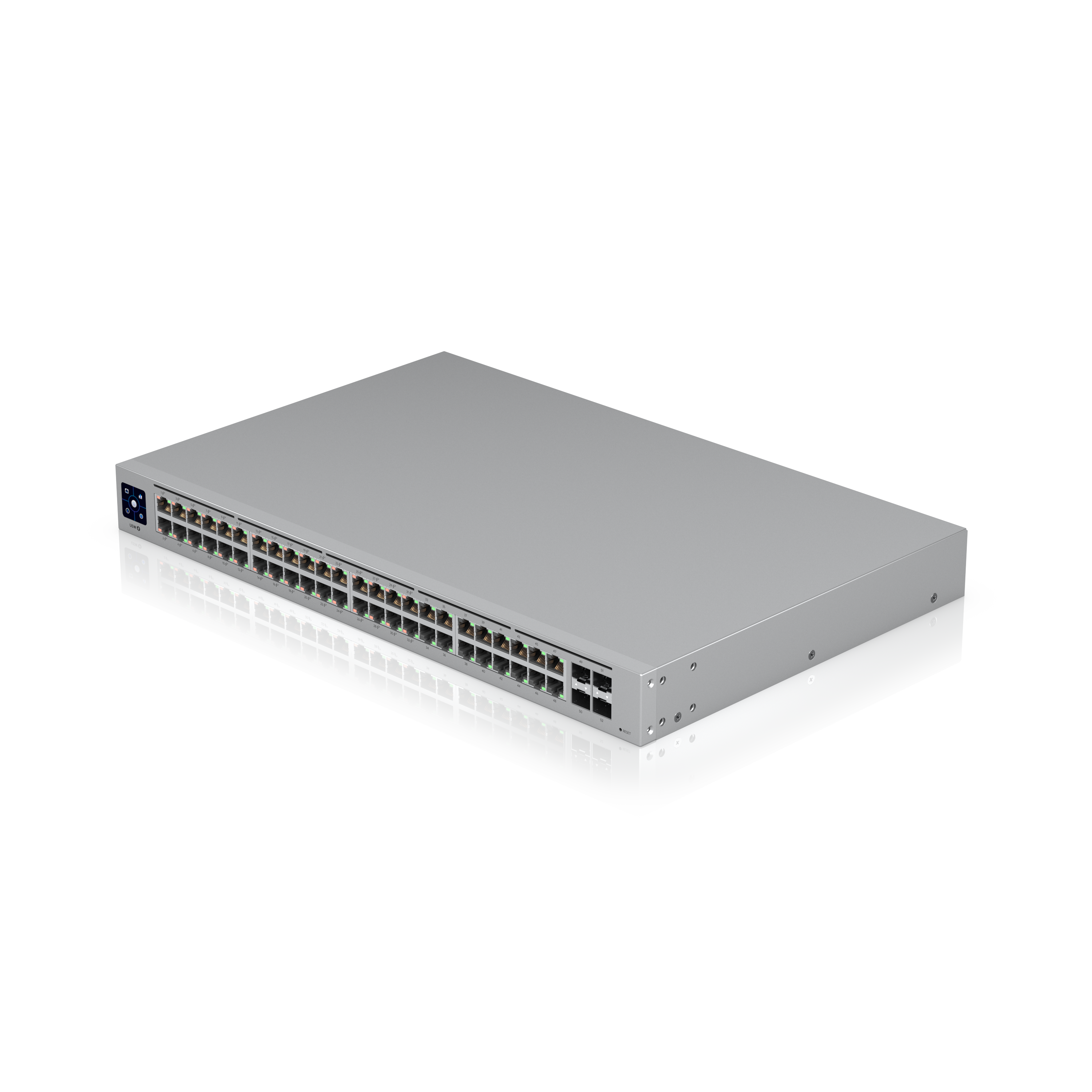

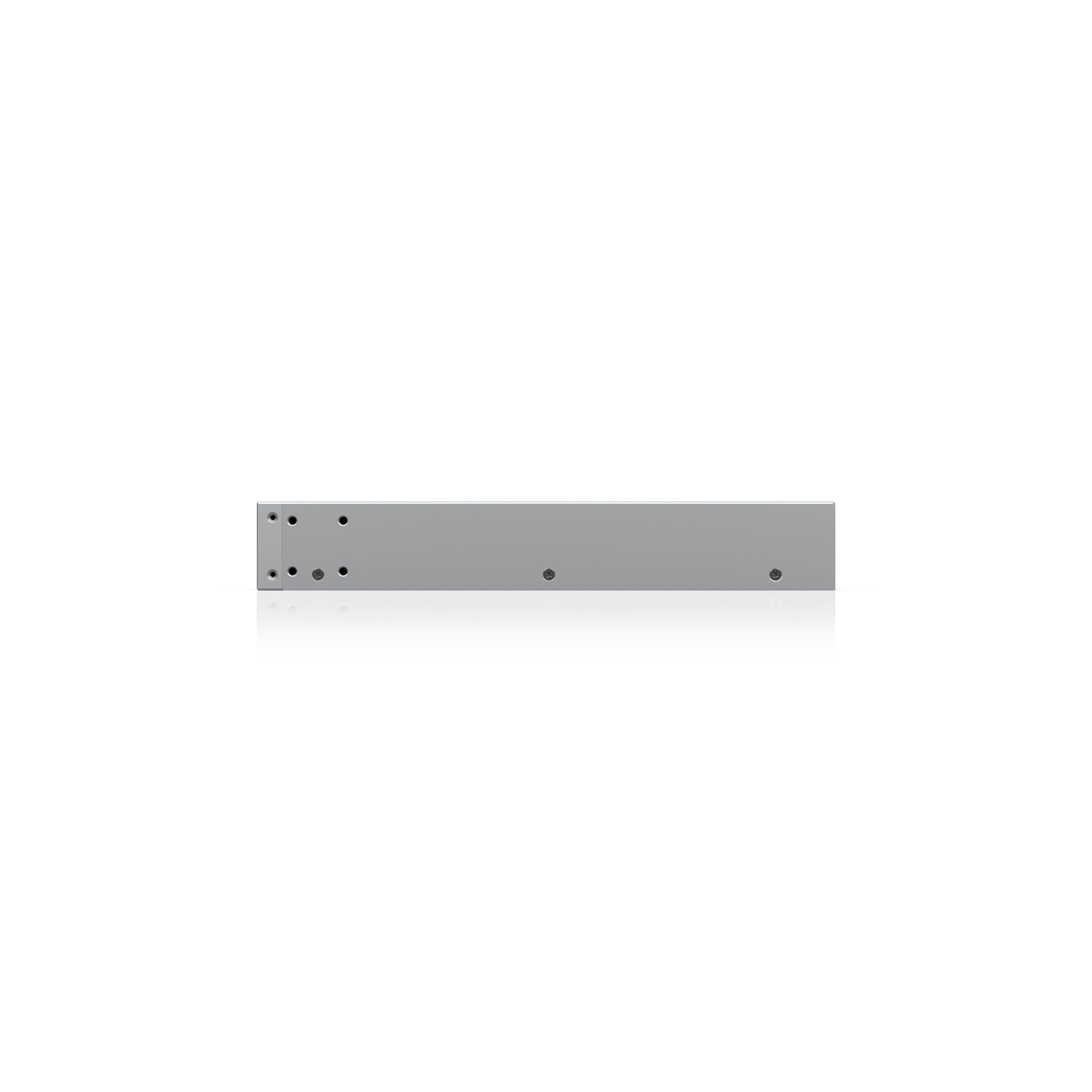

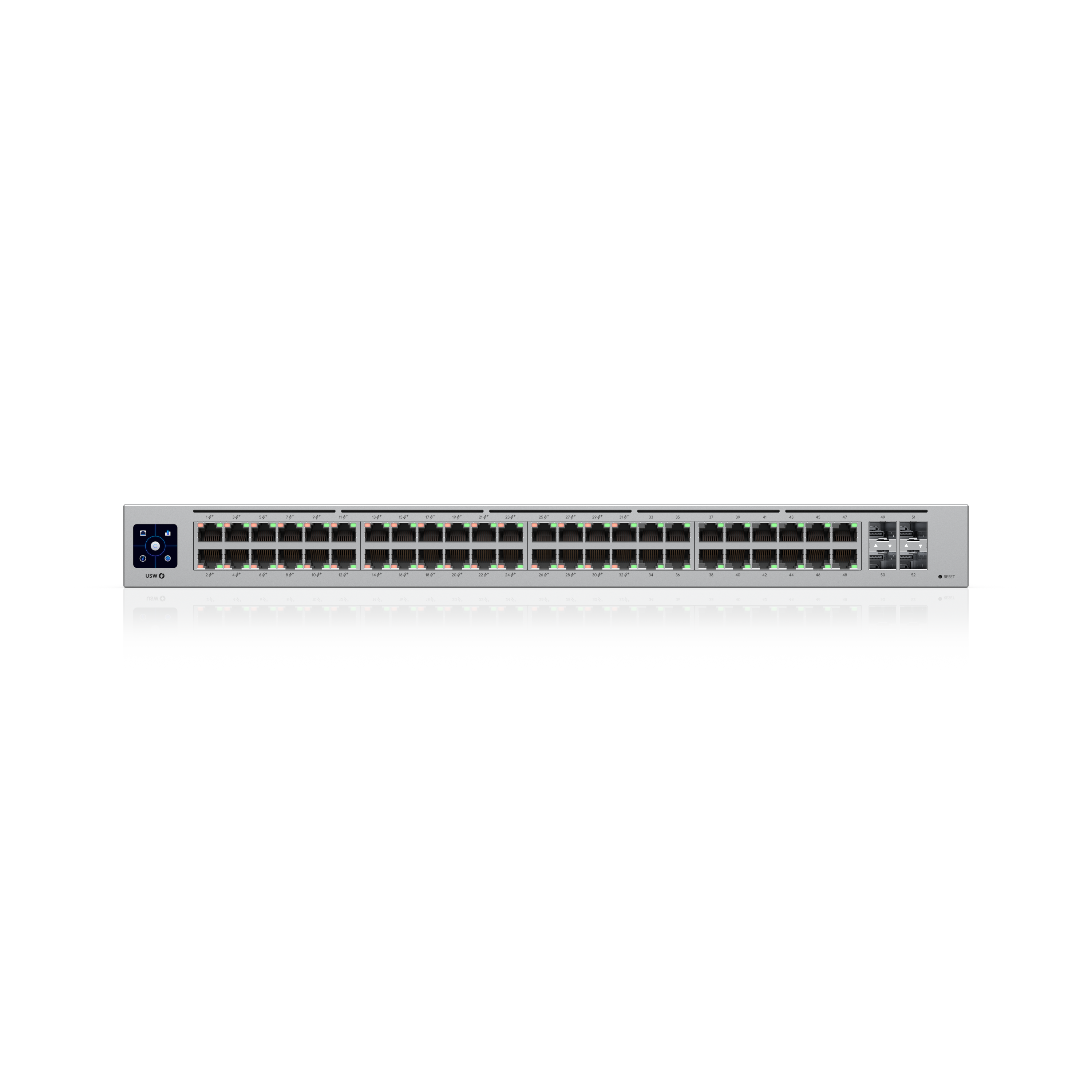

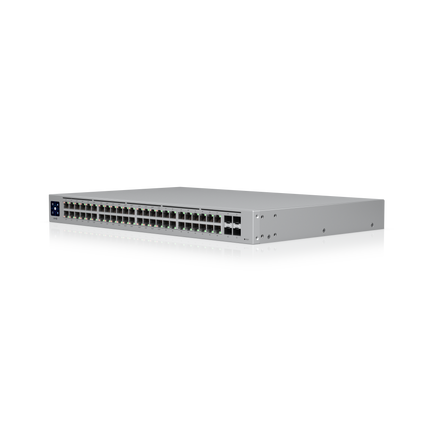

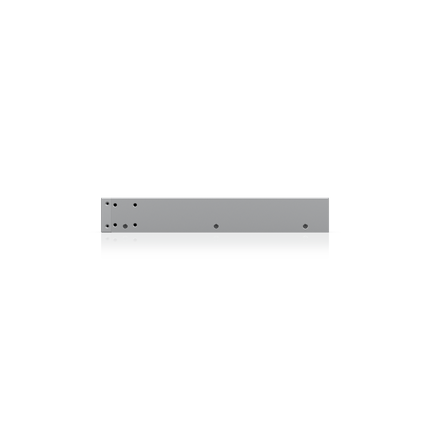

UniFi Switch 48 PoE (USW-48-POE): Managed L2 48-Port (32× PoE+) Switch with SFP and LCM Display

The Ubiquiti UniFi Switch 48 PoE (USW-48-POE) is a high-density, fully managed Layer 2 Gigabit switch built for professional networks requiring power and flexibility. Featuring 48× Gigabit RJ45 ports — 32 with PoE+ (802.3at) — and 4× 1G SFP uplinks, it’s the ideal backbone for enterprise environments, schools, hospitality networks, hospitals, and UniFi Protect surveillance systems.

With a total PoE power budget of 195W, it easily powers WiFi 6 Access Points, UniFi cameras, VoIP phones, and IoT devices, eliminating the need for external PoE injectors or adapters.

A Scalable and Reliable PoE Switch for Modern Networks

The USW-48-POE offers centralized management through the UniFi Network application (web or mobile), allowing administrators to monitor and configure every port from anywhere. Its 1.3” color LCM touchscreen provides real-time system and port status, while AR (Augmented Reality) support via the UniFi mobile app simplifies physical identification and troubleshooting.

With full Layer 2 feature support, including VLANs, LACP, STP/RSTP, IGMP Snooping, ACLs, and 802.1X authentication, the USW-48-POE ensures performance, security, and scalability for any UniFi deployment.

Key Features

⚙️ Comprehensive Layer 2 Switching

Supports VLANs (802.1Q), STP/RSTP, LACP, IGMP Snooping, DHCP Snooping & Guarding, Port Isolation, QoS, ACLs, LLDP-MED, and Voice VLAN — delivering robust control for enterprise-grade traffic management.

🔌 32× PoE+ Ports with 195W Total Budget

Provides up to 32W per port (802.3at) across 32 active PoE+ ports, ideal for powering multiple UniFi Access Points, Protect cameras, or VoIP devices directly via Ethernet.

🌐 4× 1G SFP Uplinks

Includes four dedicated 1G SFP ports for fiber uplinks or daisy-chaining switches, ensuring scalable, high-performance backbone connectivity.

📊 Integrated LCM Touch Display

A 1.3” color touchscreen provides quick insights into system health, port status, and throughput, simplifying on-site diagnostics and monitoring.

🧩 Seamless UniFi Network Integration

Managed entirely through the UniFi Network platform (v7.2.94+), offering intuitive centralized management for switching, APs, and gateways — with full mobile and AR support.

Technical Specifications

General

• Total Ports: 48× RJ45 Gigabit Ethernet (10/100/1000 Mbps)

• PoE+ Ports: 32× (802.3at, Ports 1–32)

• SFP Uplinks: 4× 1G SFP

• PoE Output (per port): Up to 32W

• Total PoE Budget: 195W

• Form Factor: Rackmount 1U

Performance

• Switching Capacity: 104 Gbps

• Non-Blocking Throughput: 52 Gbps

• Forwarding Rate: 77 Mpps

• MAC Address Table: 16,000 entries

• Packet Buffer: 1.5 MB

• Supported VLANs: Up to 1,000

Layer 2 Features

• VLANs (802.1Q), STP/RSTP

• LACP (Link Aggregation)

• IGMP Snooping & Querier

• DHCP Snooping & Guarding

• 802.1X Authentication, ACLs (MAC/IP)

• Port Mirroring, Isolation, LLDP-MED

• Voice VLAN, Rate Limiting, QoS

• Jumbo Frames, Loop Protection

Power & Cooling

• Power Input: Universal AC 100–240V, 50/60 Hz

• Internal PSU: 240W AC/DC

• Power Consumption:

  • 45W (without PoE)

  • 240W (with PoE fully active)

• Cooling: Silent, efficient thermal design

Physical

• Dimensions: 442 × 285 × 44 mm

• Weight: 4.5 kg (4.6 kg with rack brackets)

• Material: SGCC Steel

• Rack Depth Compatibility: 400–1200 mm

• Display: 1.3” color LCM touchscreen

Environment & Certifications

• Operating Temperature: -5 to 40 °C

• Humidity: 10–90% (non-condensing)

• ESD/EMP Protection: ±16 kV (air), ±12 kV (contact)

• Certifications: CE, FCC, IC

• NDAA Compliant: Yes

Software & Management

• Managed via: UniFi Network (web and mobile)

• AR Management Support: Yes

• Minimum UniFi Network Version: 7.2.94+

Ideal For

• Enterprise and SMB networks: Centralized management with PoE power for multiple devices.

• Video surveillance systems: Power and connect dozens of UniFi Protect cameras.

• Educational and hospitality environments: Robust connectivity with silent operation and fiber uplinks.

• Medium to large UniFi deployments: Scalable switching for hundreds of connected clients.
