USW-Pro-XG-10-PoE: Rackmount L3 Switch, 10× 10GbE PoE+++ (90W), 2× 10G SFP+, 400W PoE, Etherlighting™, LCM

UniFi L3 Rackmount Switch with 10× 10GbE PoE+++ (90W)

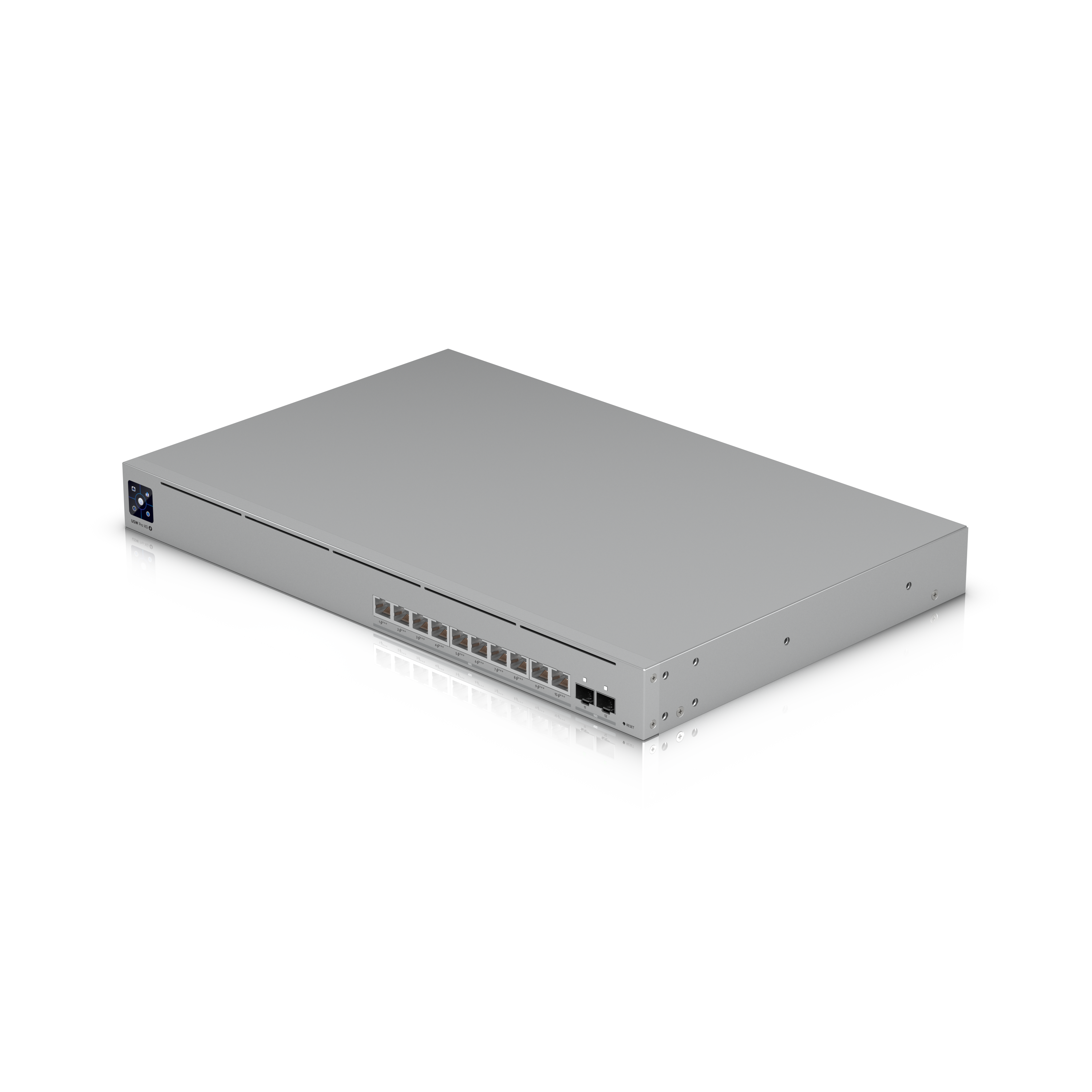

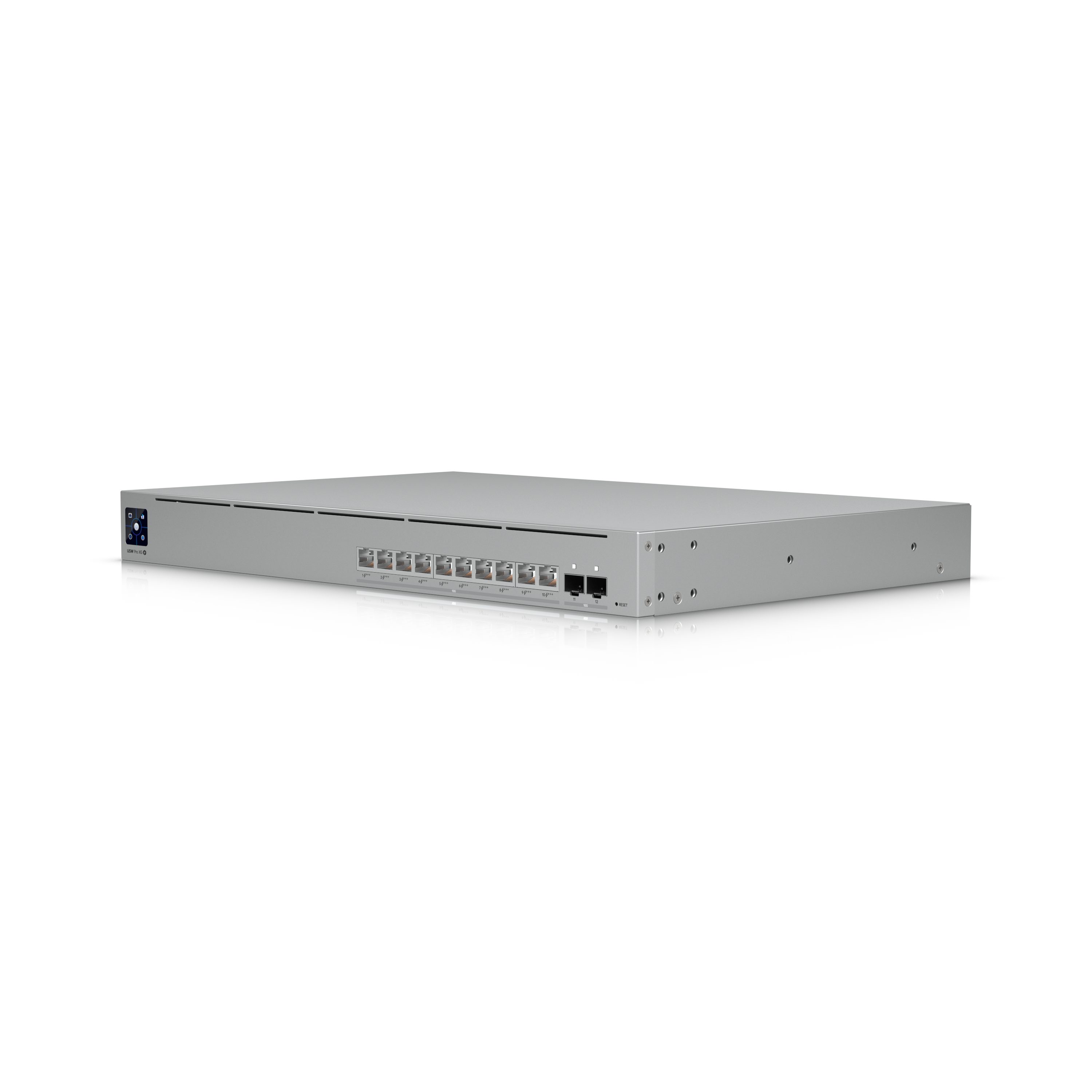

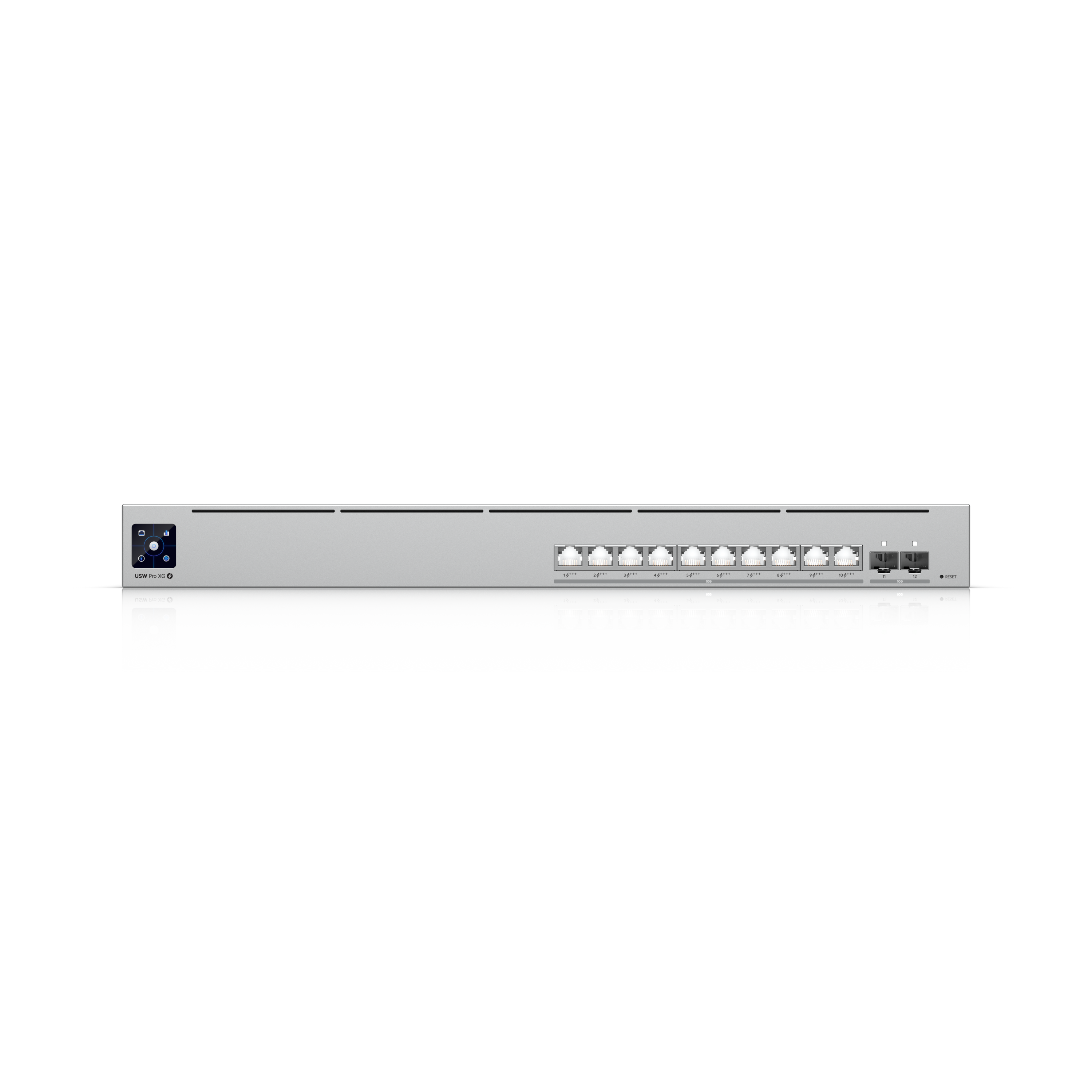

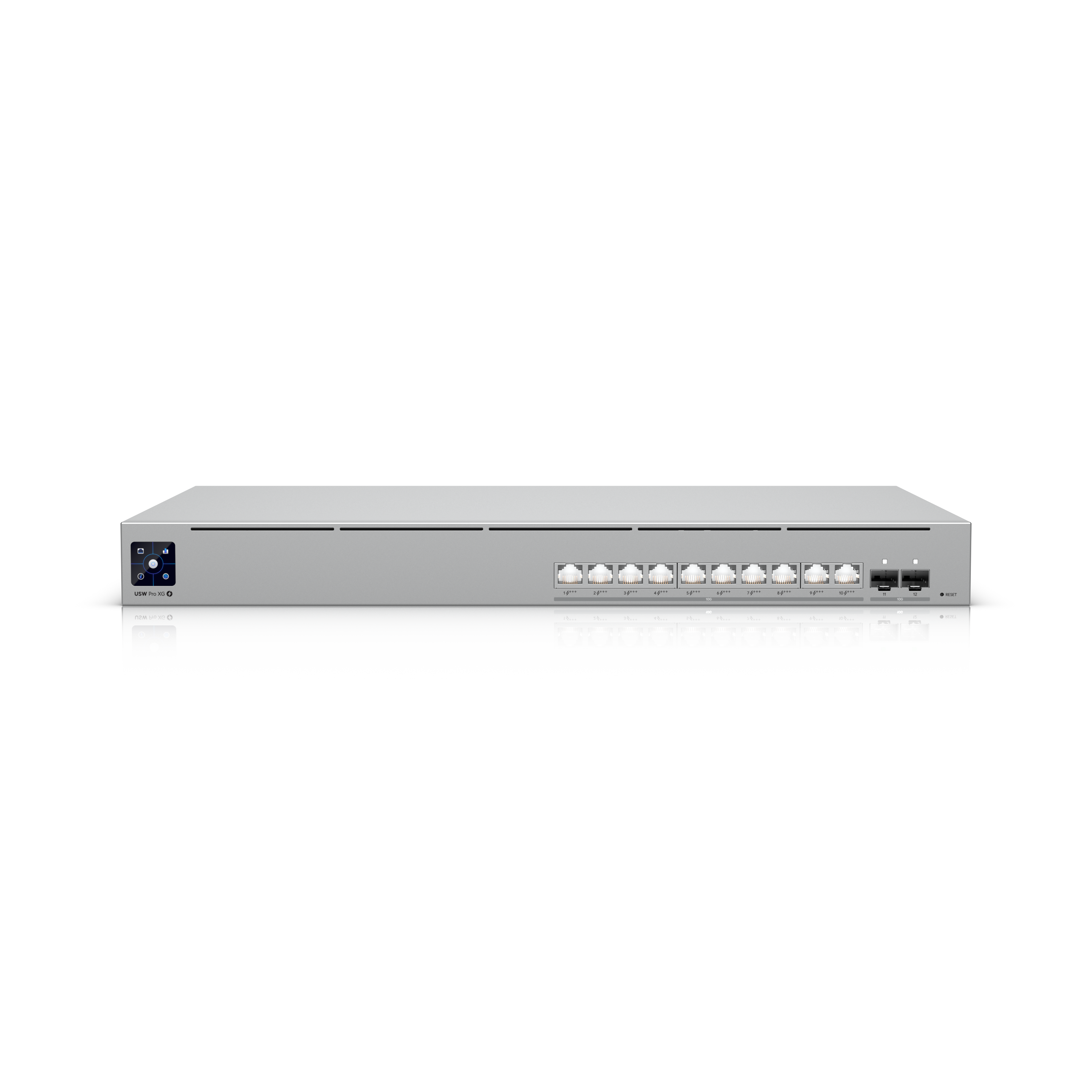

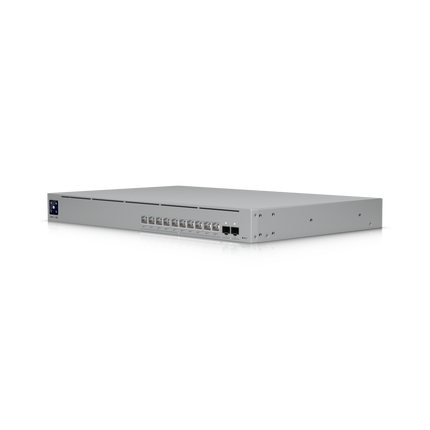

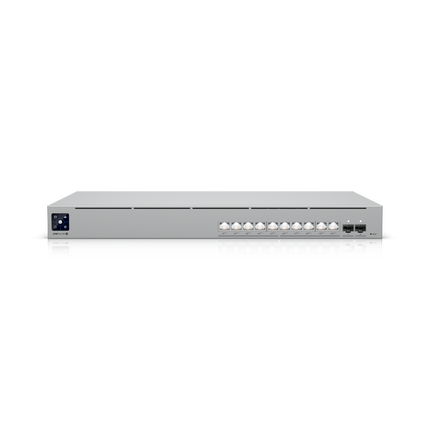

The Ubiquiti UniFi Switch Pro XG 10 PoE (USW-Pro-XG-10-PoE) is a high-performance Layer 3 rackmount (1U) switch that combines 10× 10GbE RJ45 ports with PoE+++ (802.3bt Type 4, up to 90W per port) and 2× 10G SFP+ uplinks, making it the ultimate solution for networks that demand extreme speed and maximum PoE power.
With a total PoE budget of 400W, advanced L3 and Pro AV features, redundant power via USP-RPS, Etherlighting™, and a 1.3" touchscreen LCM, this switch is ideal for professional installations, AV-over-IP systems, and enterprise infrastructures that require uncompromising reliability and performance.

Why Choose the USW-Pro-XG-10-PoE?

90W PoE+++ and Multi-Gigabit 10GbE Power

All 10× 10GbE RJ45 ports support PoE+++ (802.3bt Type 4) delivering up to 90W per port (400W total).
Perfect for powering interactive displays, 4K PTZ cameras, PoE lighting systems, and next-generation WiFi 7 access points.

10G SFP+ Uplinks and Non-Blocking Switching

The 2× 10G SFP+ uplinks allow interconnection with core switches or servers.
Provides 240 Gbps switching capacity and 120 Gbps non-blocking throughput, ensuring full performance even under heavy load.

L3 Capabilities and Pro AV Profiles

Includes inter-VLAN routing, static routes, DHCP server/relay, and pre-optimized AV profiles for Dante, NDI, Q-SYS, AES67, and SDVoE — simplifying professional AV-over-IP deployments.

Reliable Rackmount Design with Power Redundancy

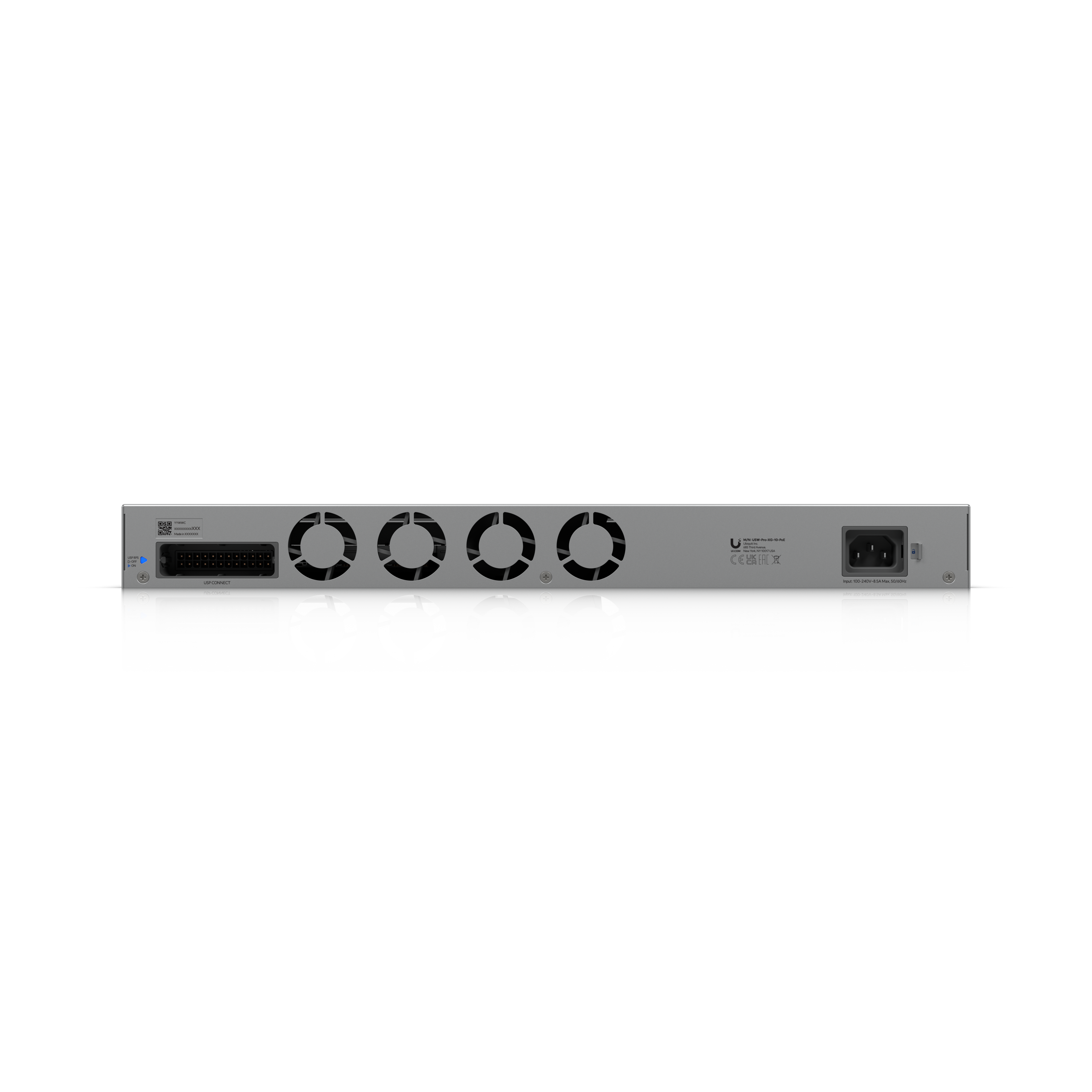

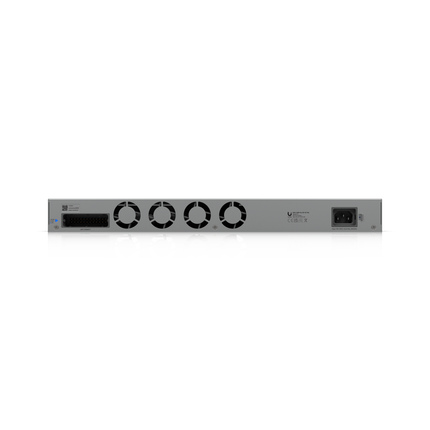

Compact 1U rackmount form factor with internal power supply and USP-RPS input for redundant power, ensuring continuous operation in case of PSU failure.

Advanced UniFi Management with Etherlighting™ and LCM

Fully managed via UniFi Network, featuring visual management tools like Etherlighting™ (RGB LEDs per port) and a 1.3" touchscreen LCM for instant diagnostics and system status.

Key Specifications

• RJ45 Ports: 10× 10GbE (Multi-Gigabit, PoE+++ up to 90W per port)

• SFP+ Ports: 2× 10GbE uplinks

• PoE Budget: 400W total

• Switching Capacity: 240 Gbps

• Throughput: 120 Gbps

• L3 Features: Inter-VLAN routing, static routes, DHCP server/relay

• AV Profiles: Dante, NDI, Q-SYS, AES67, SDVoE

• Redundancy: USP-RPS compatible

• Extras: Etherlighting™, 1.3" touchscreen LCM

• Mounting: 19” 1U rackmount

Ideal For

🔌 High-Power PoE Networks
Powers 4K displays, PTZ cameras, advanced IoT, and WiFi 7 APs requiring up to 90W per port.

🎛️ Professional Pro AV Installations
Optimized for AV-over-IP workflows (Dante, NDI, Q-SYS, SDVoE) with 10GbE connectivity and 400W PoE+++.

🌐 High-Performance Edge Aggregation
Perfect for consolidating multi-gigabit APs, cameras, and IoT devices with 10GbE and high-power PoE.

🏢 Enterprise and SMB Environments Requiring L3 + PoE+++
Compact, reliable switch delivering Layer 3 performance, redundancy, and advanced UniFi management.

💡 High-Density UniFi Deployments
The most powerful PoE rackmount switch in the UniFi lineup — built for speed, scalability, and professional installations.
