Description

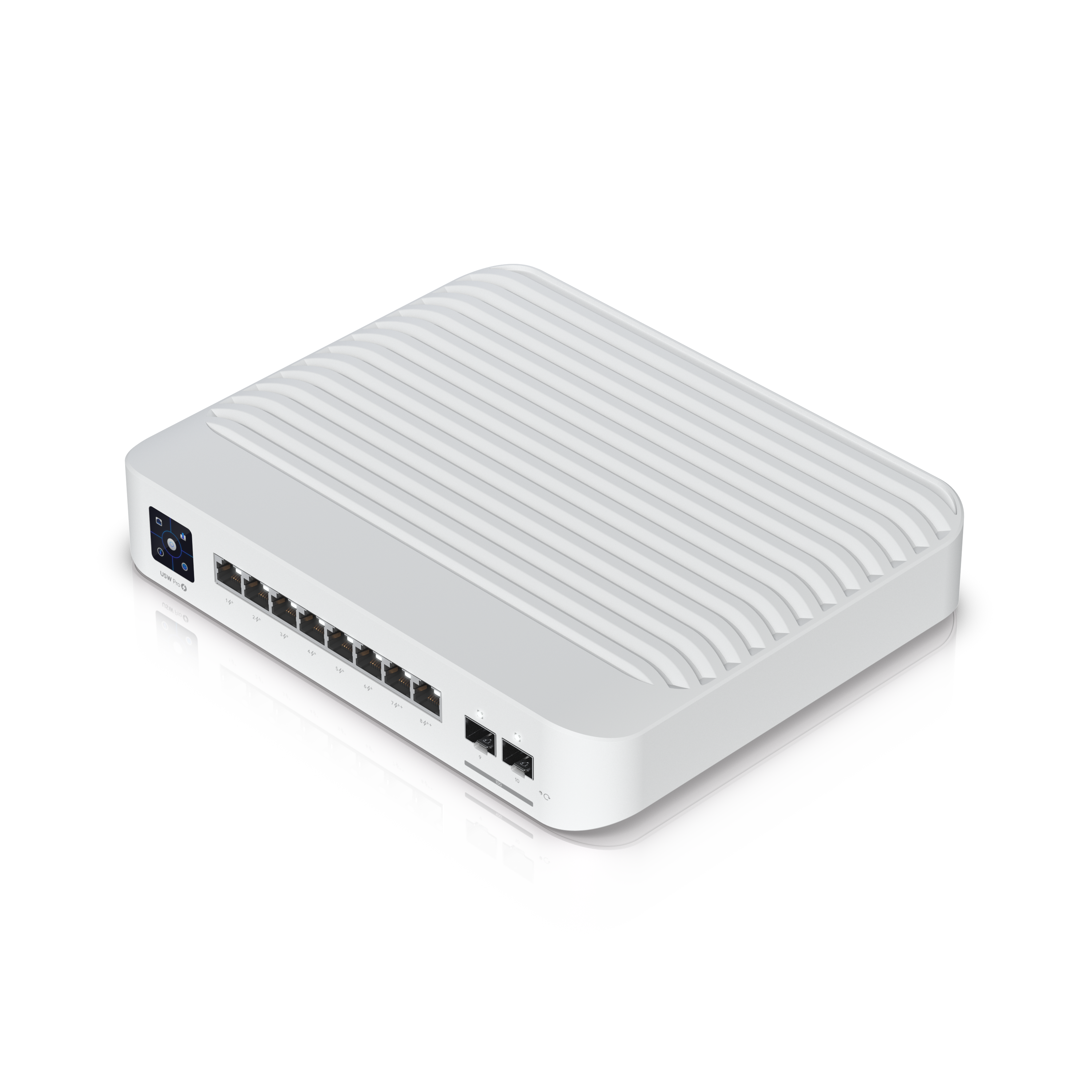

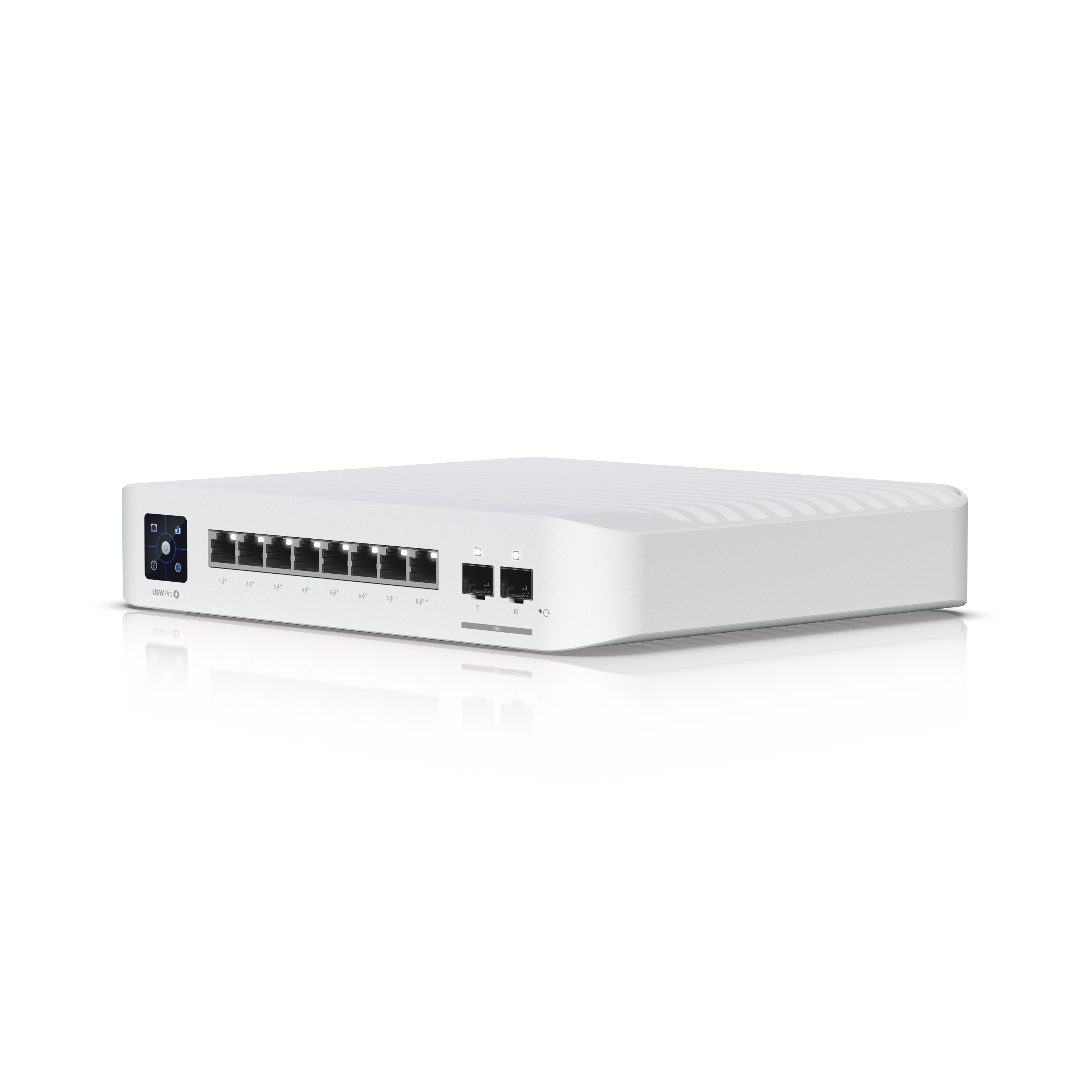

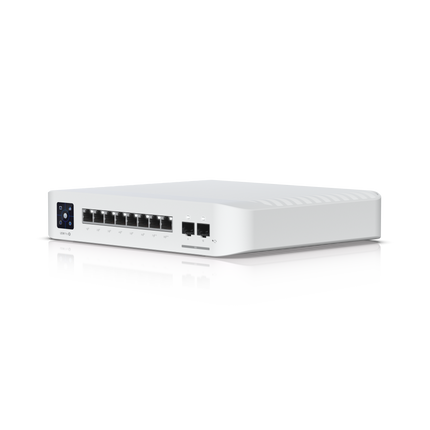

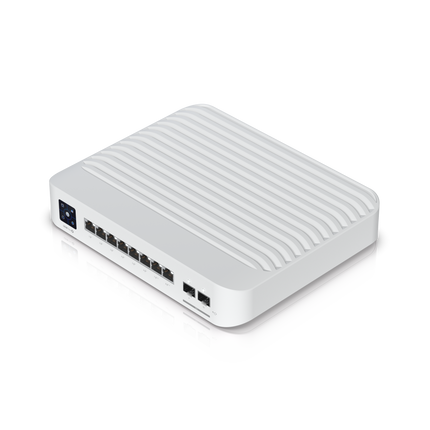

UniFi Switch Pro 8 PoE (USW-Pro-8-PoE): Compact Layer 3 Managed Switch with 8× GbE (6× PoE+, 120W) and 2× 10G SFP+ Uplinks

The Ubiquiti UniFi Switch Pro 8 PoE (USW-Pro-8-PoE) delivers enterprise-grade performance, 10G uplinks, and Layer 3 functionality in a compact, silent, and efficient form factor. Featuring 8 Gigabit RJ45 ports (6 with PoE+ 802.3at, up to 30W each) and 2 SFP+ 10GbE uplinks, it’s the perfect solution for professional environments, creative studios, and small-to-medium networks requiring powerful switching, quiet operation, and advanced management.

⚡ Gigabit Switching with 10G Uplinks

The USW-Pro-8-PoE provides eight 1GbE ports for end devices such as APs, IP cameras, and VoIP phones, plus two 10GbE SFP+ uplinks for high-speed connections to your network core, servers, or NAS systems.
Enjoy non-blocking throughput and ultra-low latency across your wired infrastructure.

🔌 Powerful and Efficient PoE+ (120W Total Budget)

With 6 PoE+ (802.3at) ports delivering up to 30W per port, the switch can power:

• WiFi 6/6E/7 Access Points

• UniFi Protect Cameras

• VoIP Phones

• Network Hubs or Bridges

Its 120W total power budget ensures reliable delivery of power to all connected devices without the need for external injectors.

🧠 Advanced Layer 3 Features

Designed for intelligent traffic management and segmentation, the USW-Pro-8-PoE supports:

• Inter-VLAN Routing

• Static Routes

• DHCP Server and Relay

These capabilities make it ideal for small-to-mid-sized networks that require efficient routing without relying entirely on a dedicated gateway.

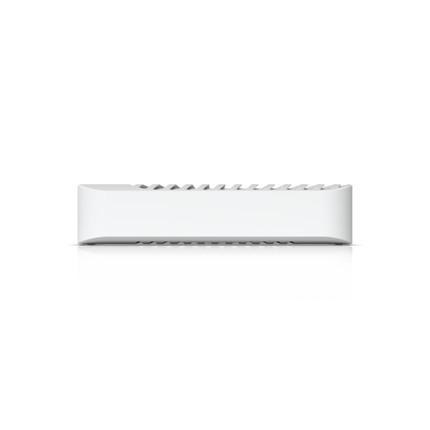

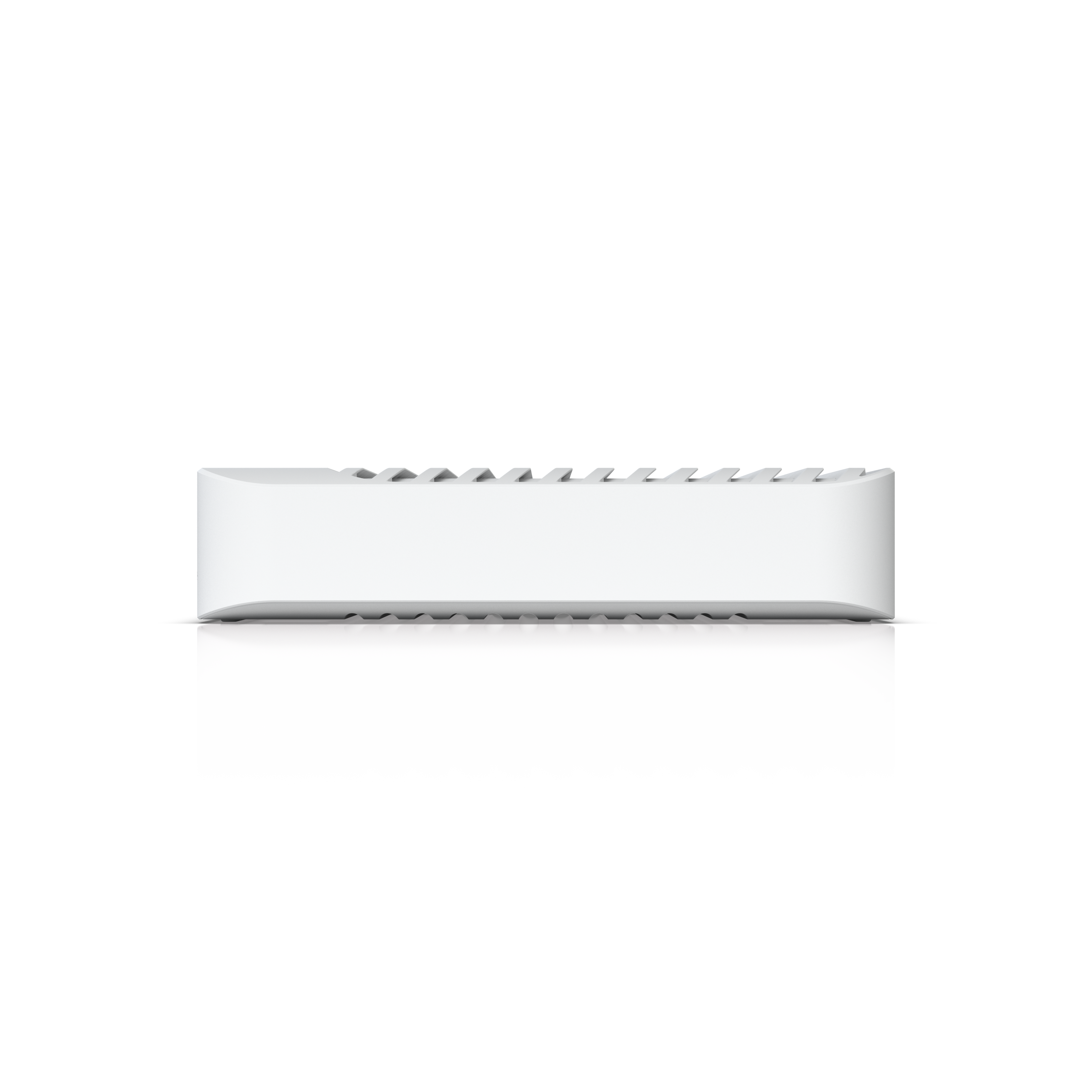

🌿 Fanless, Silent Operation

Built with a completely fanless design, the USW-Pro-8-PoE operates silently, making it perfect for offices, meeting rooms, studios, or residential deployments where noise is not acceptable.

🔋 Redundant Power Support via USP-RPS

For mission-critical environments, the switch includes a DC input for UniFi SmartPower RPS (USP-RPS), enabling redundant power protection to keep your network running during unexpected power failures.

🧩 Unified Management with UniFi Network

As part of the UniFi ecosystem, the switch integrates seamlessly with UniFi Network for centralized management through the web interface or mobile app, offering:

• Real-time topology and performance views

• VLAN, STP/RSTP, and LACP configuration

• 802.1X network access control

• AR (Augmented Reality) device identification

• Per-port monitoring and PoE control

Technical Specifications

Interfaces

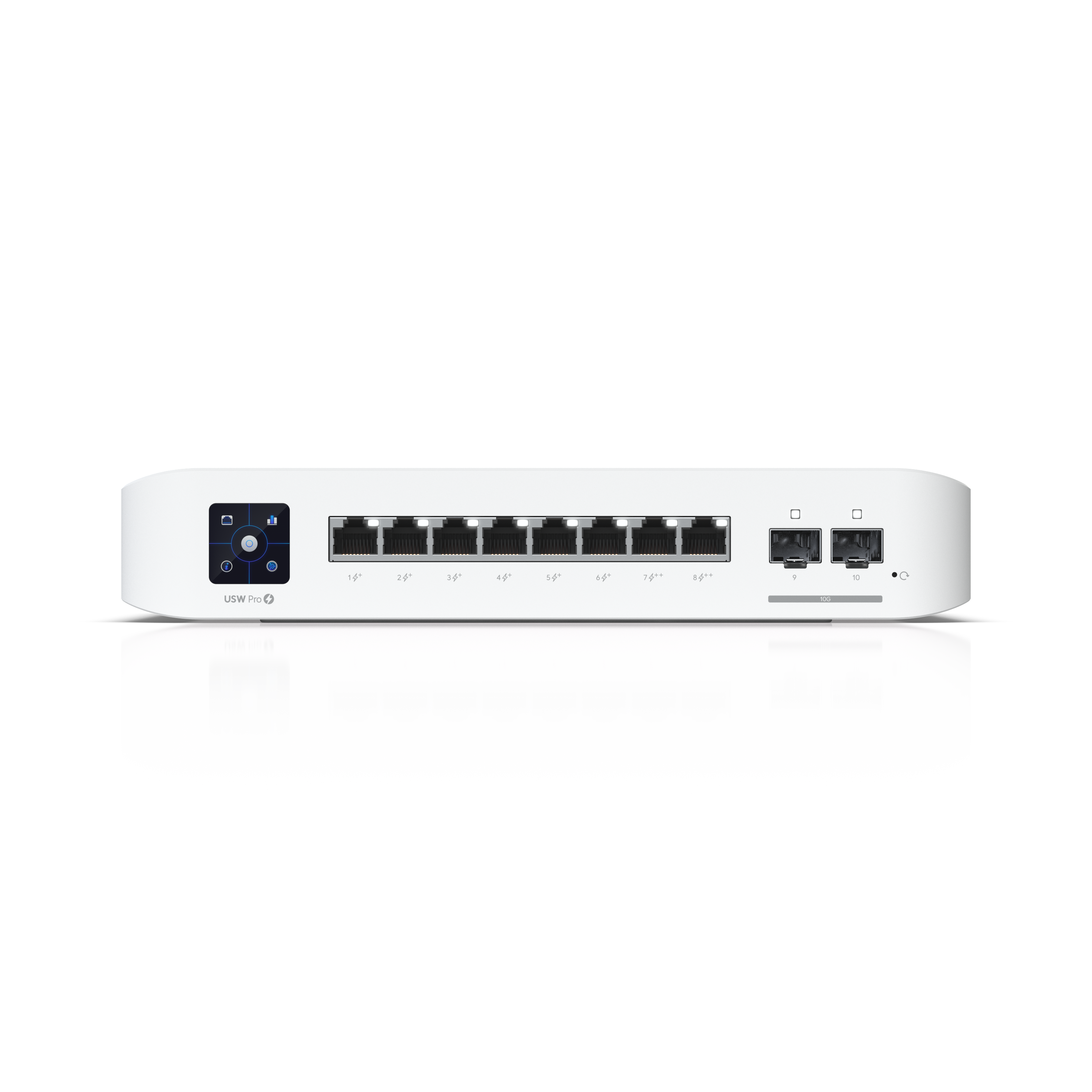

• 8× 1GbE RJ45 ports (6 with PoE+ 802.3at)

• 2× 10GbE SFP+ uplink ports

• Total PoE Budget: 120W

• Max PoE per Port: 30W

Performance

• Switching Capacity: 40 Gbps

• Non-Blocking Throughput: 20 Gbps

• Forwarding Rate: 29.8 Mpps

• MAC Address Table: 16,000 entries

Layer 3 Features

• Inter-VLAN Routing

• Static Routing

• DHCP Server / Relay

Power

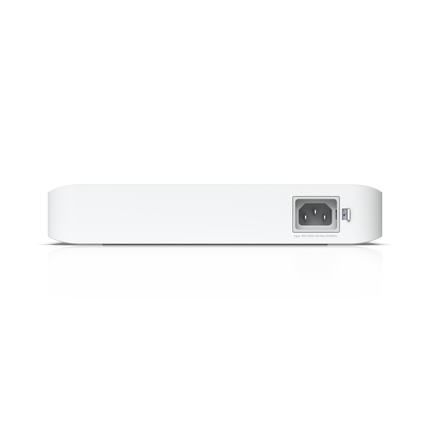

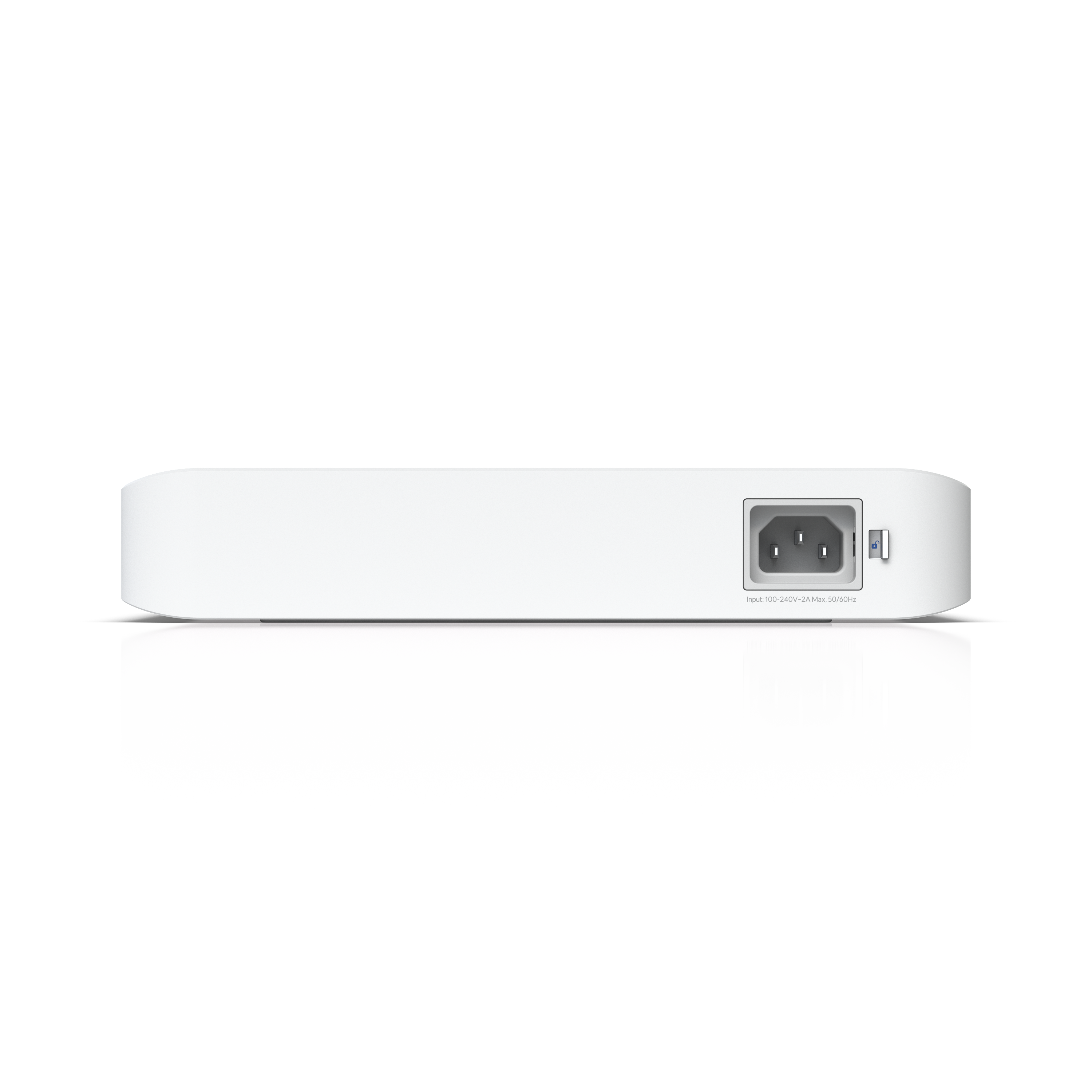

• Input: 100–240V AC, 50/60Hz

• Redundant Power: DC input for USP-RPS (optional)

• Max Consumption: 30W (no PoE) / 150W (full PoE load)

Mechanical & Environmental

• Dimensions: 204 × 90 × 31 mm

• Weight: 1.3 kg

• Cooling: Fanless (silent)

• Mounting: Desktop or wall mount

• Operating Temperature: 0 to 40 °C

• Humidity: 10–90% (non-condensing)

Certifications

• CE, FCC, IC

• NDAA Compliant: Yes

Ideal For

• Small and Medium Businesses: Professional-grade PoE switch with 10G uplinks.

• Studios and Workspaces: Silent operation and compact design.

• Enterprise Edge or Distribution: Layer 3 routing and power redundancy.

• Smart Homes and Advanced Users: Future-ready 10G connectivity and UniFi management.
