Description

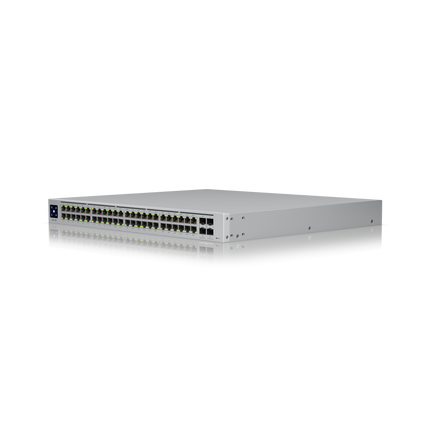

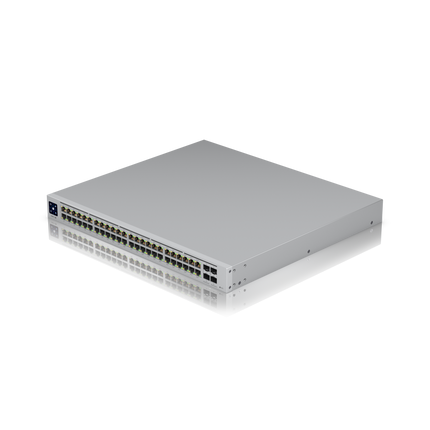

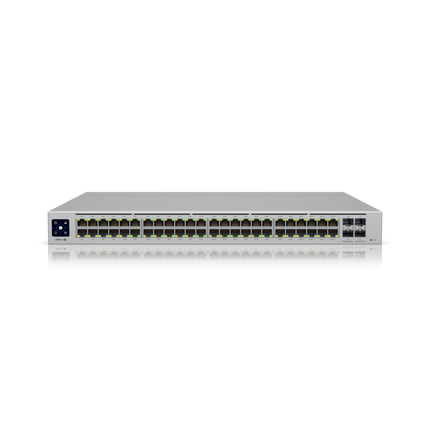

UniFi Switch Pro 48 PoE (USW-Pro-48-POE): Managed L3 48-Port (40× PoE+, 8× PoE++) Switch with 10G SFP+ Uplinks, 600W Power Budget, Touch LCM, and Redundant Power Support

The Ubiquiti UniFi Switch Pro 48 PoE (USW-Pro-48-POE) is a next-generation, Layer 3 managed switch designed for high-density enterprise environments such as offices, schools, hotels, and campus networks. It delivers 48× Gigabit ports, 4× 10G SFP+ uplinks, advanced PoE capabilities (600W total), and redundant power support via USP-RPS, combining performance, flexibility, and reliability in one professional-grade solution.

USW-Pro-48-POE: Advanced PoE and 10G Performance for Modern Networks

Built for scalability and resilience, the USW-Pro-48-POE offers 40× PoE+ (802.3at) and 8× PoE++ (802.3bt) ports, providing power for a full range of UniFi and third-party devices — from WiFi 6/7 access points to PTZ cameras and AV systems.
With Layer 3 routing features including inter-VLAN routing, static routes, and DHCP server/relay, it enables local traffic optimization and intelligent segmentation, reducing dependency on core routers.

The switch’s 1.3” color LCM touchscreen provides at-a-glance insights into port status, power usage, and system diagnostics, while centralized management via UniFi Network ensures seamless control of large deployments. The USP-RPS compatibility adds another layer of reliability, protecting against power interruptions in mission-critical environments.

Key Features

⚙️ Layer 3 Switching Intelligence

• Inter-VLAN Routing, Static Routing, and DHCP Server/Relay built-in.

• Enables advanced subnet management and efficient internal traffic distribution.

• Reduces load on the network gateway for improved overall performance.

🔌 600W Total PoE Power with Mixed PoE+/PoE++ Support

• 40× PoE+ (802.3at) ports up to 32W each.

• 8× PoE++ (802.3bt) ports up to 60W each.

• Perfect for powering UniFi APs, cameras, phones, lighting systems, and AV-over-IP endpoints.

🌐 High-Speed 10G Uplinks

• 4× SFP+ (10Gbps) ports for fiber uplinks, aggregation, or core switch interconnection.

• Ideal for environments requiring low latency and high throughput.

🔋 Redundant Power-Ready

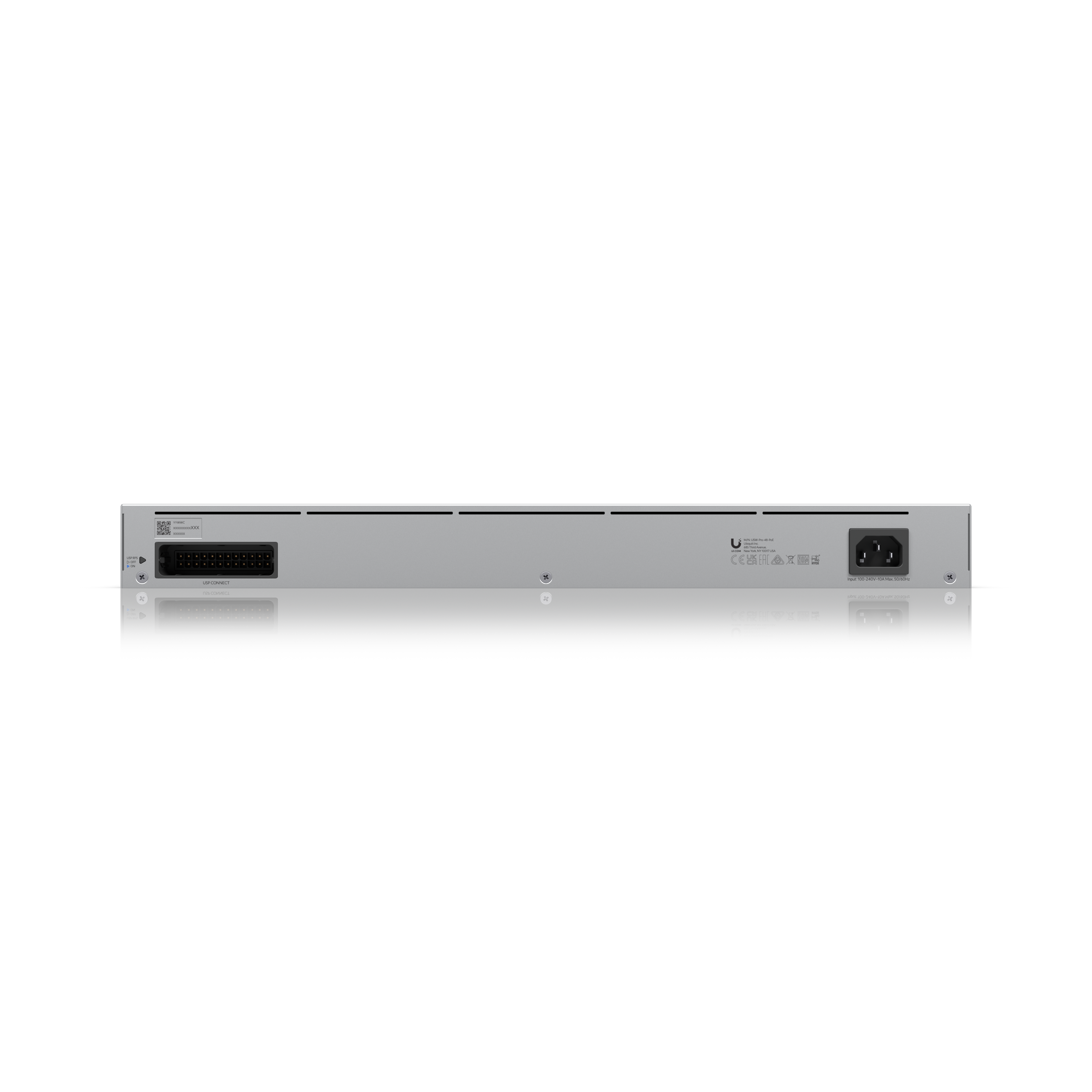

• Compatible with the USP-RPS (UniFi SmartPower Redundant Power System), providing continuous operation in the event of internal PSU failure.

🔇 Efficient and Quiet Operation

• Hybrid cooling system ensures optimal thermal management while maintaining low noise levels, suitable for office or educational environments.

📊 Integrated 1.3” LCM Touch Display

• View port activity, PoE consumption, and system diagnostics directly on the switch.

• Facilitates quick troubleshooting without accessing the controller.

Technical Specifications

General & Ports

• Ethernet Ports: 48× RJ45 Gigabit (10/100/1000 Mbps)

  • 40× PoE+ (802.3at, up to 32W per port)

  • 8× PoE++ (802.3bt, up to 60W per port)

• Uplink Ports: 4× 10G SFP+

• PoE Power Budget: 600W total

• Form Factor: Rackmount 1U

• Display: 1.3” Color LCM Touchscreen

Performance

• Switching Capacity: 176 Gbps

• Non-Blocking Throughput: 88 Gbps

• Forwarding Rate: 130 Mpps

• MAC Address Table: 16,000 entries

Layer 3 Features

• Inter-VLAN Routing

• Static Routing

• DHCP Server & Relay

• QoS, VLANs, and ACLs

Power & Reliability

• Power Input: 100–240V AC, 50/60 Hz

• Internal PSU: 750W AC/DC

• Max Consumption:

  • 600W (with PoE load)

  • ~45W (without PoE)

• Redundant Power: Supported (via USP-RPS connection)

Management

• Platform: UniFi Network (Web & App)

• Additional Control: Augmented Reality (AR) support via UniFi Mobile App

• Monitoring: LCM touchscreen for system and PoE status

Mechanical

• Dimensions: 442 × 285 × 44 mm

• Weight: 5.1 kg (approx.)

• Cooling: Quiet active fans

Environment & Compliance

• Operating Temperature: -5 to 45 °C

• Humidity: 10–90% (non-condensing)

• Certifications: CE, FCC, IC, Anatel

• NDAA Compliant: Yes

Ideal For

• Enterprise and campus networks: Perfect for powering and aggregating large-scale UniFi installations.

• Educational institutions: Reliable power delivery for classrooms, access points, and security cameras.

• Hospitality and commercial facilities: Supports dense WiFi and surveillance deployments.

• AV-over-IP infrastructures: Optimized for Dante, NDI, and high-bandwidth streaming systems.

• Mission-critical environments: Redundant power support ensures uninterrupted operation.
