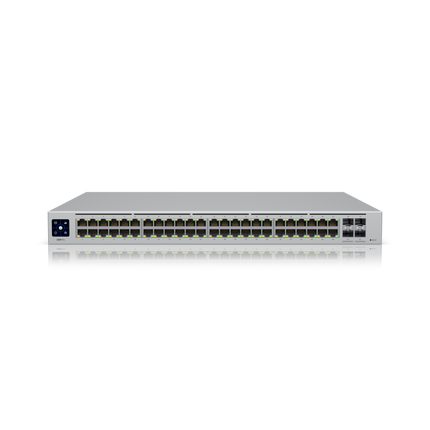

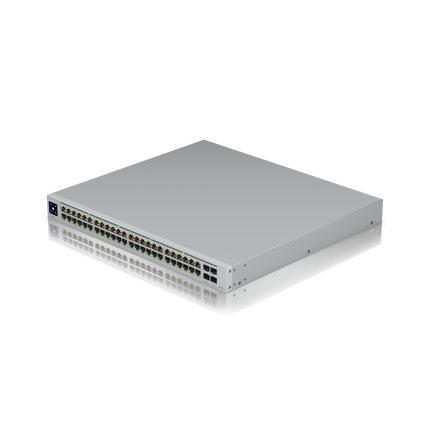

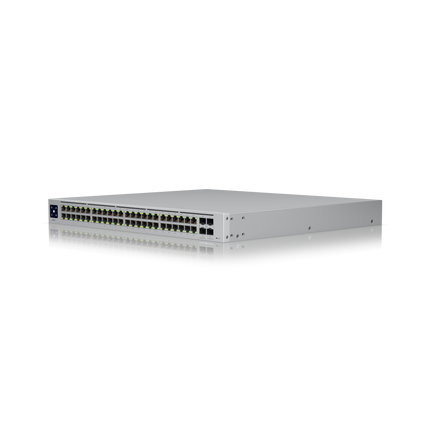

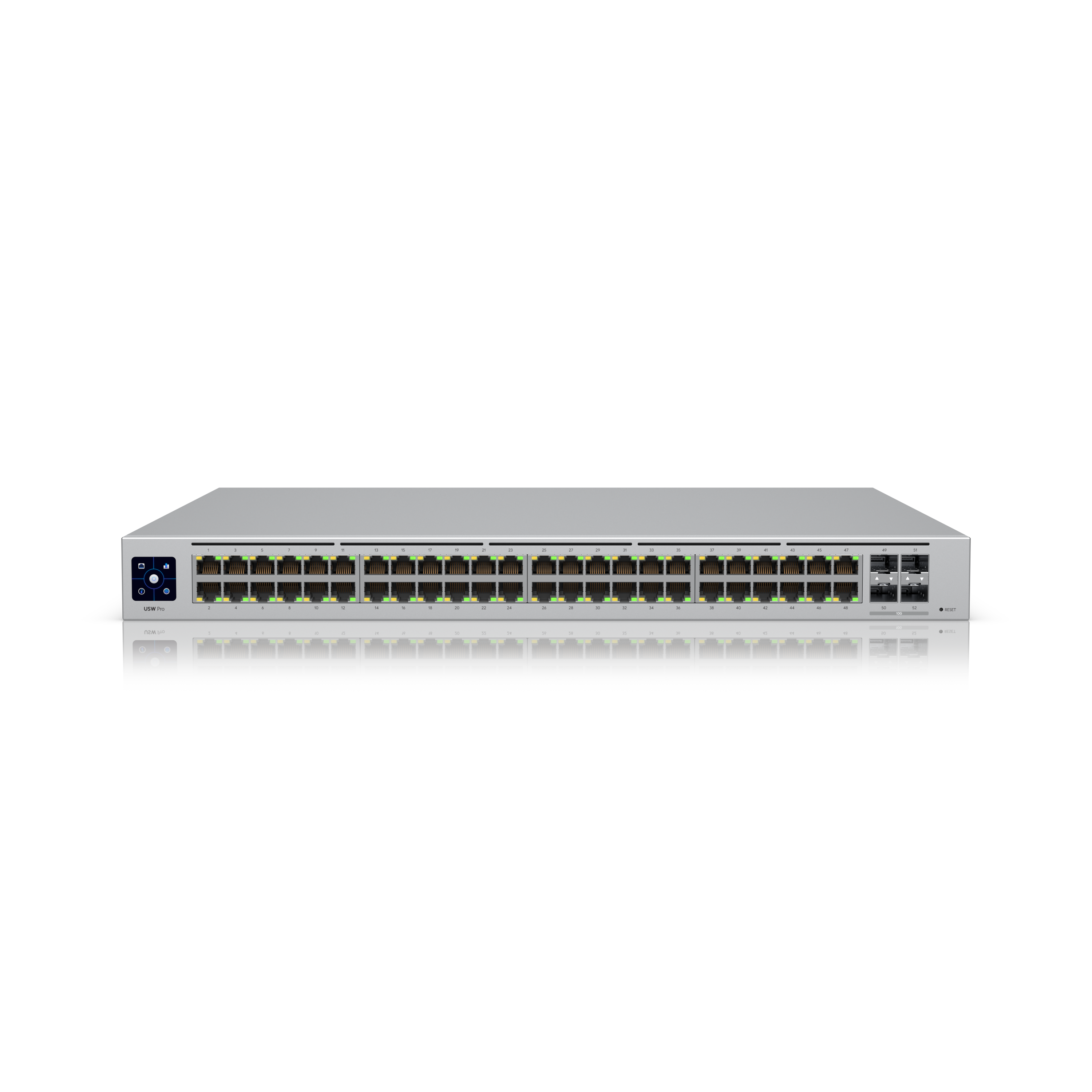

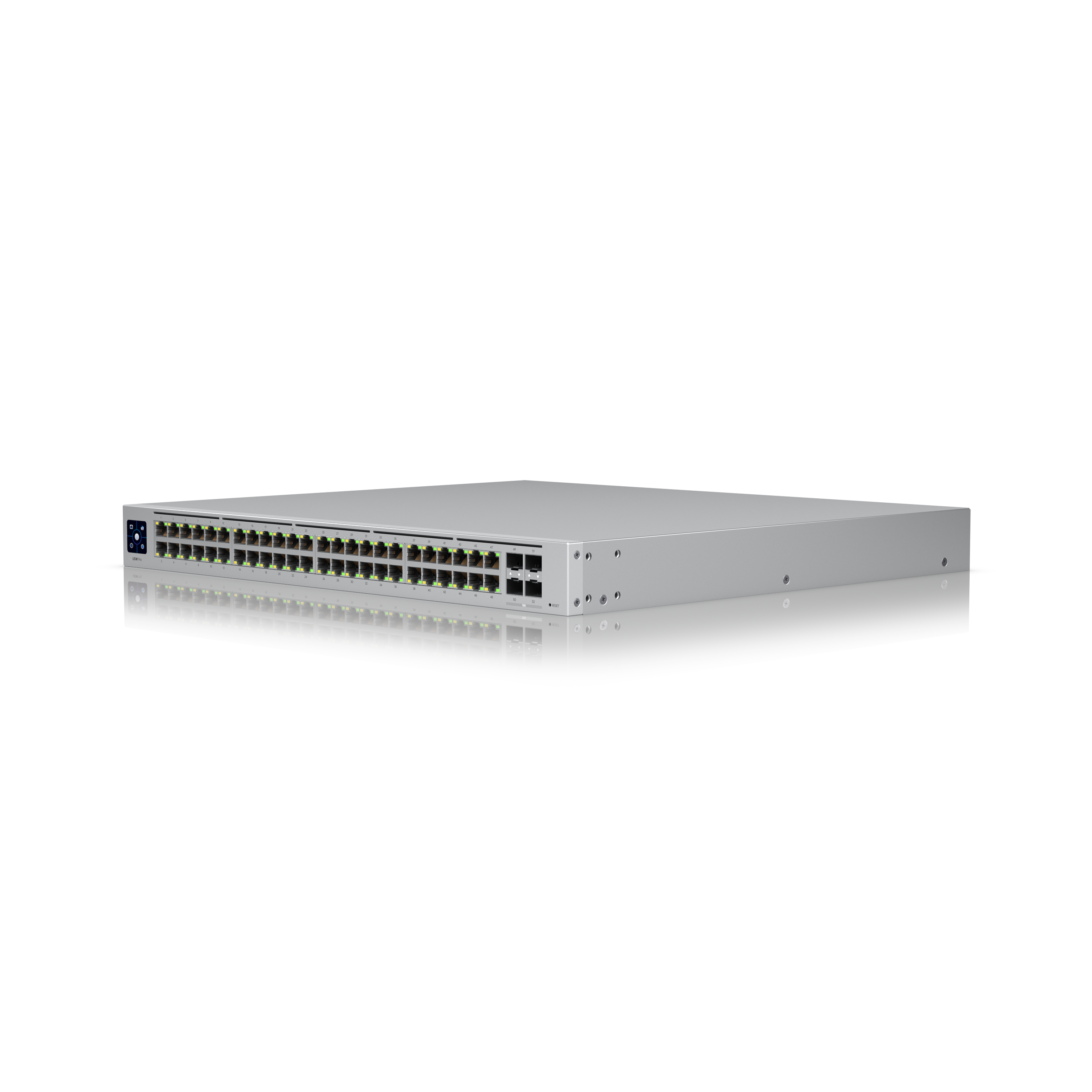

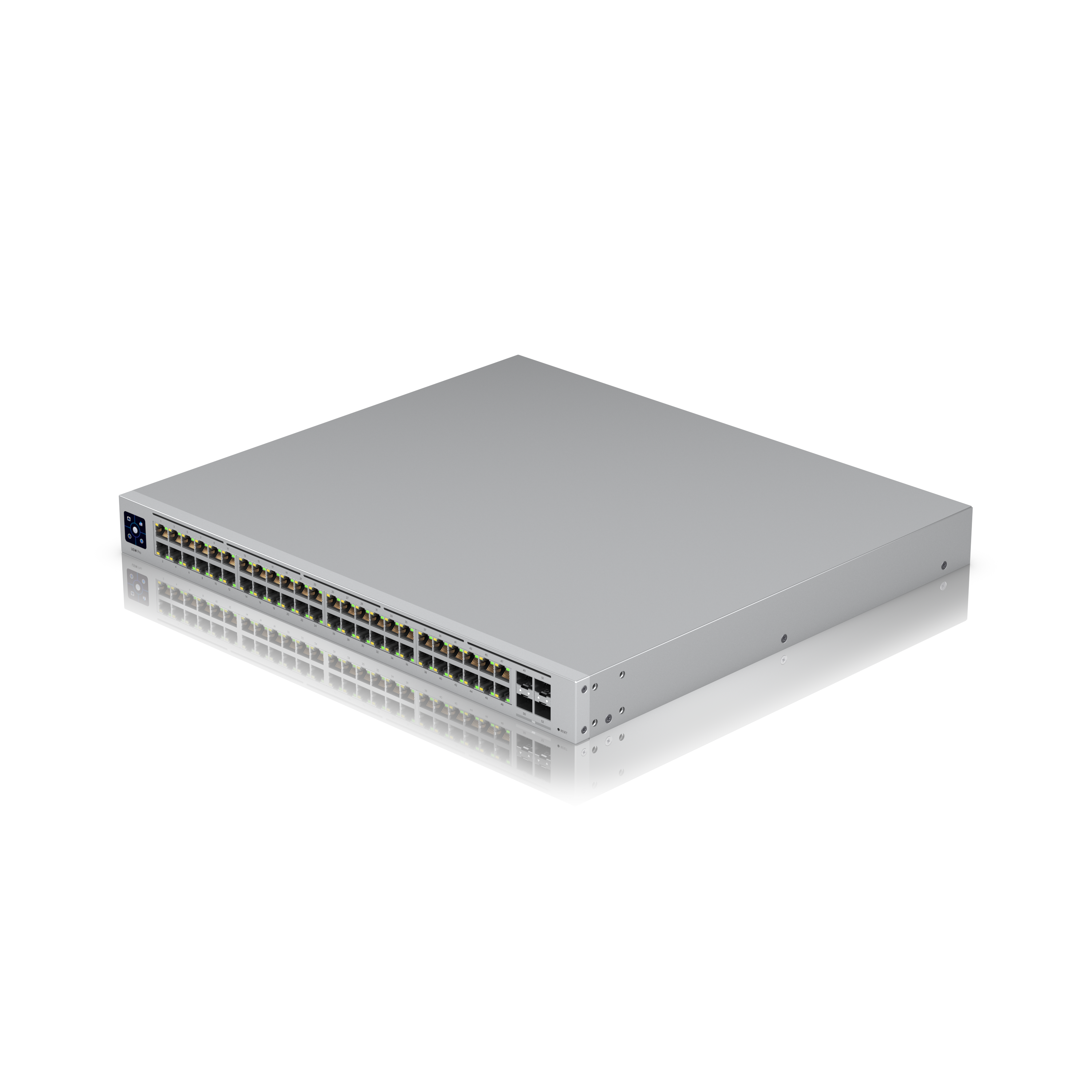

UniFi Switch Pro 48 (USW-Pro-48): Managed L3 48-Port (4× 10G SFP+) Professional Switch with Touch LCM and Redundant Power Support

The Ubiquiti UniFi Switch Pro 48 (USW-Pro-48) is a fully managed Layer 3 enterprise switch designed to be the core or aggregation layer of high-performance networks. With 48× Gigabit RJ45 ports and 4× 10G SFP+ uplinks, it delivers robust, scalable connectivity, advanced routing features, and exceptional reliability — all in a silent, 1U rackmount form factor.

Ideal for businesses, schools, public institutions, and professional infrastructures, the USW-Pro-48 offers high-density switching, inter-VLAN and static routing, and redundant power support (USP-RPS), making it a versatile backbone for demanding UniFi environments.

USW-Pro-48: The Professional Backbone of Your Network

Built for mission-critical applications, the UniFi Switch Pro 48 provides enterprise-grade performance and flexibility. It supports Layer 3 routing for efficient subnet segmentation, ensuring smooth traffic distribution across departments, VLANs, or service zones.

With quiet operation, touchscreen diagnostics, and UniFi Network centralized management, the USW-Pro-48 combines the intelligence of a core switch with the simplicity and reliability that define the UniFi ecosystem.

Key Features

⚙️ Advanced Layer 3 Functionality

• Supports inter-VLAN routing, static routing, and DHCP services, enabling intelligent and autonomous local traffic management.

• Ideal for medium to large enterprise networks that require segmentation and optimized performance.

🌐 High-Speed Uplinks

• Equipped with 4× 10G SFP+ uplinks, perfect for connecting to aggregation switches, core infrastructure, or high-speed storage systems.

🔇 Silent and Efficient Operation

• Designed with minimal acoustic output, making it suitable for offices, studios, classrooms, and other noise-sensitive environments.

🔋 Redundant Power Ready

• Compatible with USP-RPS (UniFi SmartPower Redundant Power System), ensuring continuous uptime even in case of internal PSU failure.

📊 Touch LCM Display

• A 1.3” color touchscreen provides instant access to system status, port activity, and diagnostics, simplifying local maintenance.

🧩 Seamless UniFi Integration

• Managed through UniFi Network (web or mobile app) with support for Augmented Reality (AR) visualization for easy on-site identification and management.

Technical Specifications

General & Ports

• Ethernet Ports: 48× RJ45 Gigabit (10/100/1000 Mbps)

• Uplink Ports: 4× 10G SFP+

• Form Factor: Rackmount 1U

• Display: 1.3” Color LCM Touchscreen

Performance

• Switching Capacity: 176 Gbps

• Non-Blocking Throughput: 88 Gbps

• Forwarding Rate: 130 Mpps

• MAC Address Table: 16,000 entries

Layer 3 Features

• Inter-VLAN Routing

• Static Routing

• DHCP Server/Relay

• QoS, VLANs, and ACLs

Power & Reliability

• Power Input: 100–240V AC, 50/60 Hz

• Internal Power Supply: 60W AC/DC

• Max Power Consumption: 40W

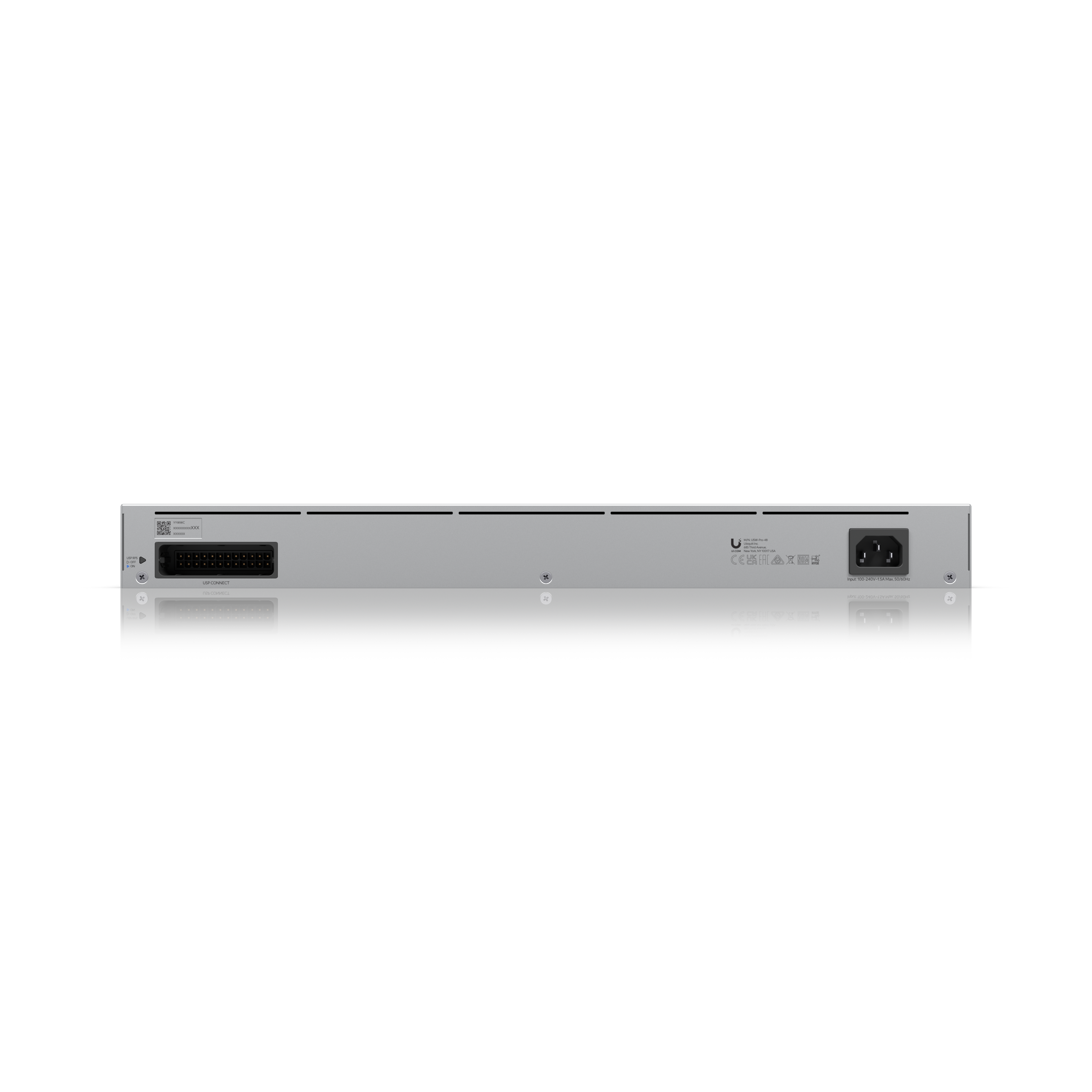

• Redundant Power Support: USP-RPS compatible

Management

• Interface: UniFi Network (web/mobile)

• Local Monitoring: Touchscreen + AR visualization via UniFi App

Mechanical

• Dimensions: 442 × 285 × 44 mm

• Weight: 4.2 kg (approx.)

• Cooling: Low-noise fans / hybrid passive design

Environment & Certifications

• Operating Temperature: -5 to 45 °C

• Humidity: 10–90% (non-condensing)

• Certifications: CE, FCC, IC, Anatel

• NDAA Compliant: Yes

Ideal For

• Enterprise networks that require centralized Layer 3 management and high-density access switching.

• Educational institutions with multiple VLANs or departments requiring isolated yet interconnected networks.

• Corporate and public infrastructures needing reliable, silent, and easily managed connectivity.

• Aggregation layer deployments in multi-switch or multi-building UniFi environments.
