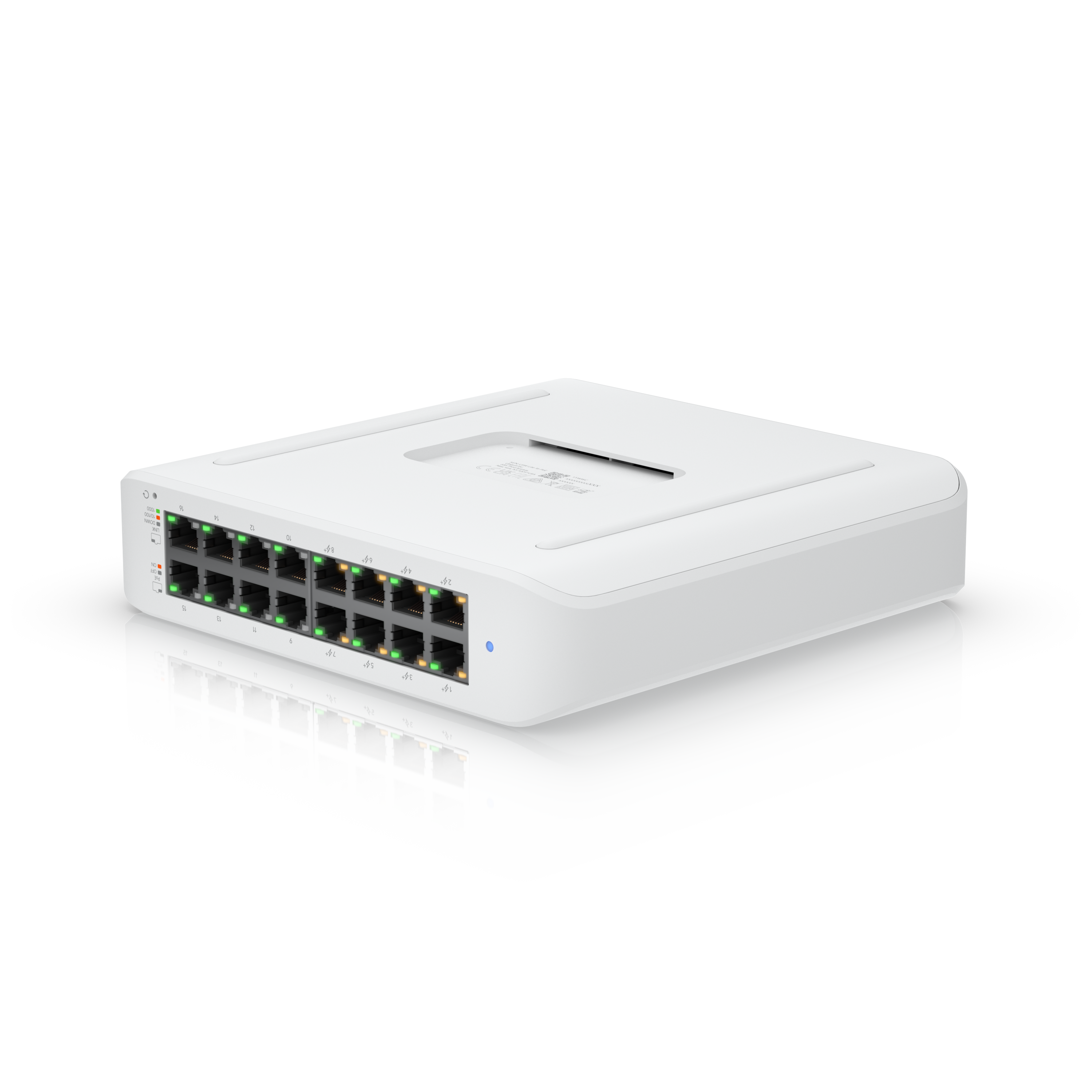

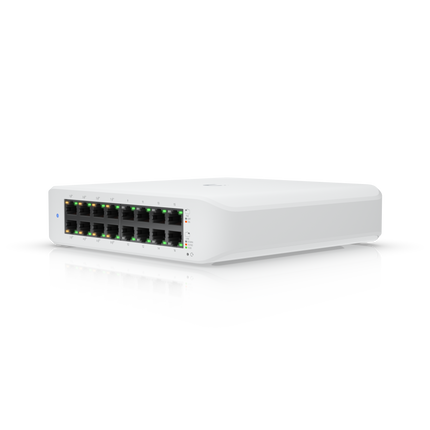

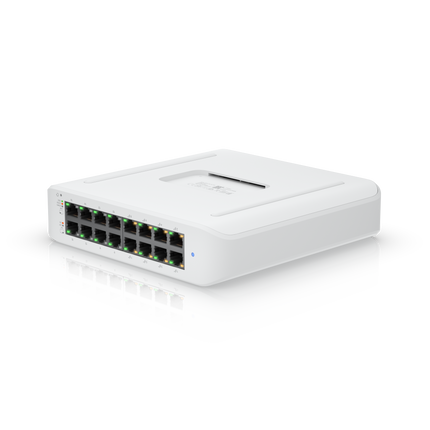

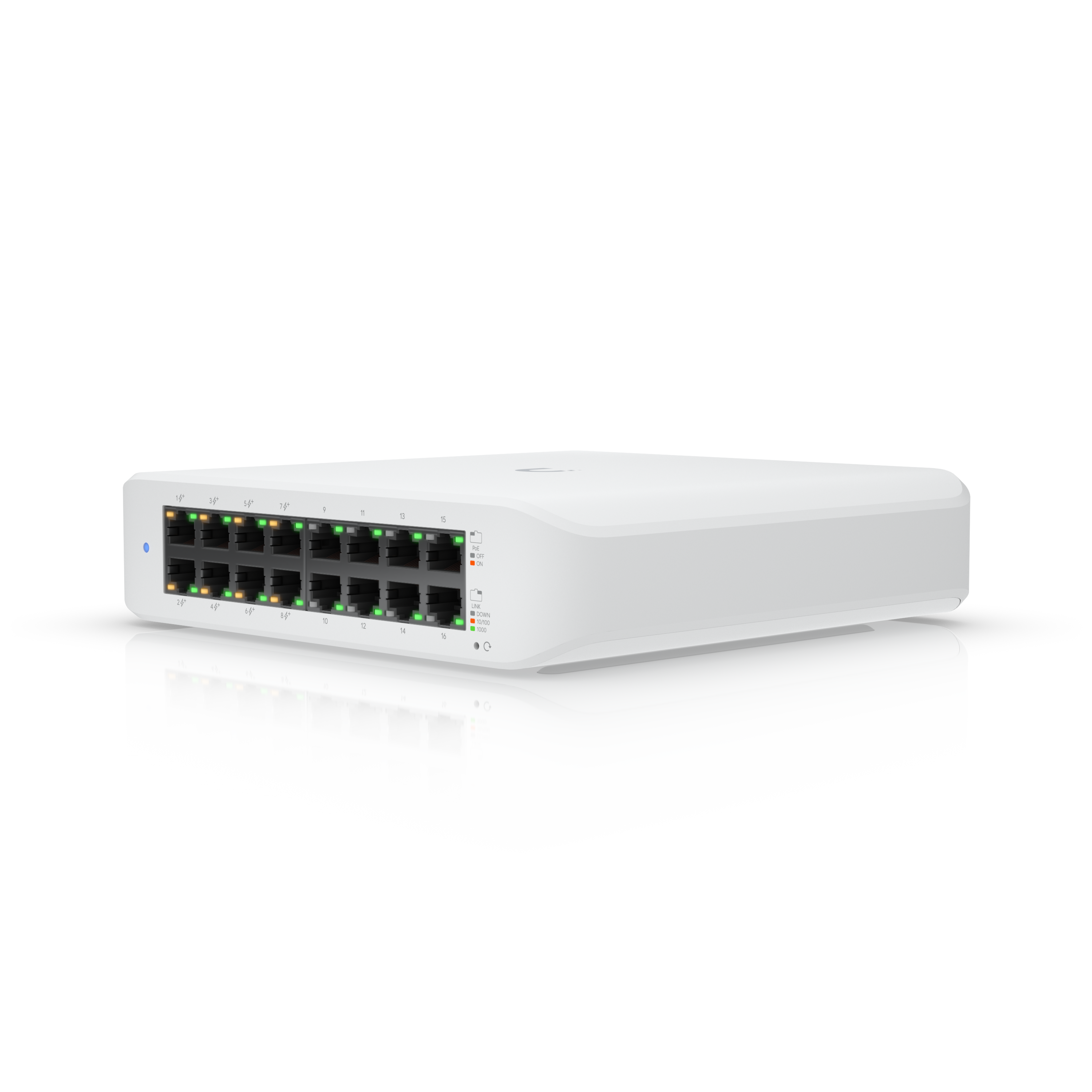

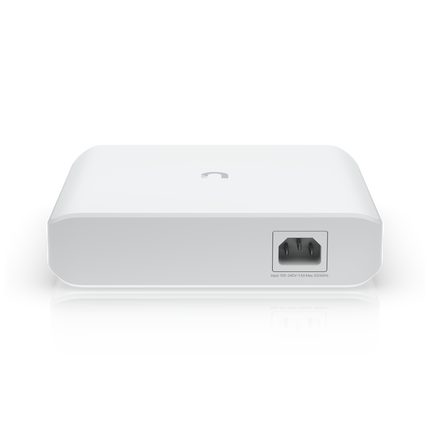

UniFi Switch Lite 16 PoE (USW-Lite-16-PoE): Compact Layer 2 Managed Switch (16× GbE, 8× PoE+, 45W Total Budget)

The Ubiquiti UniFi Switch Lite 16 PoE (USW-Lite-16-PoE) is a fully managed Layer 2 Gigabit switch designed for small and medium businesses, offices, and advanced home networks that require silent operation and essential PoE+ power. Featuring 16 Gigabit RJ45 ports, including 8 PoE+ (802.3af/at) with a total 45W PoE budget, it delivers fast, reliable connectivity with full UniFi Network integration and completely fanless operation.

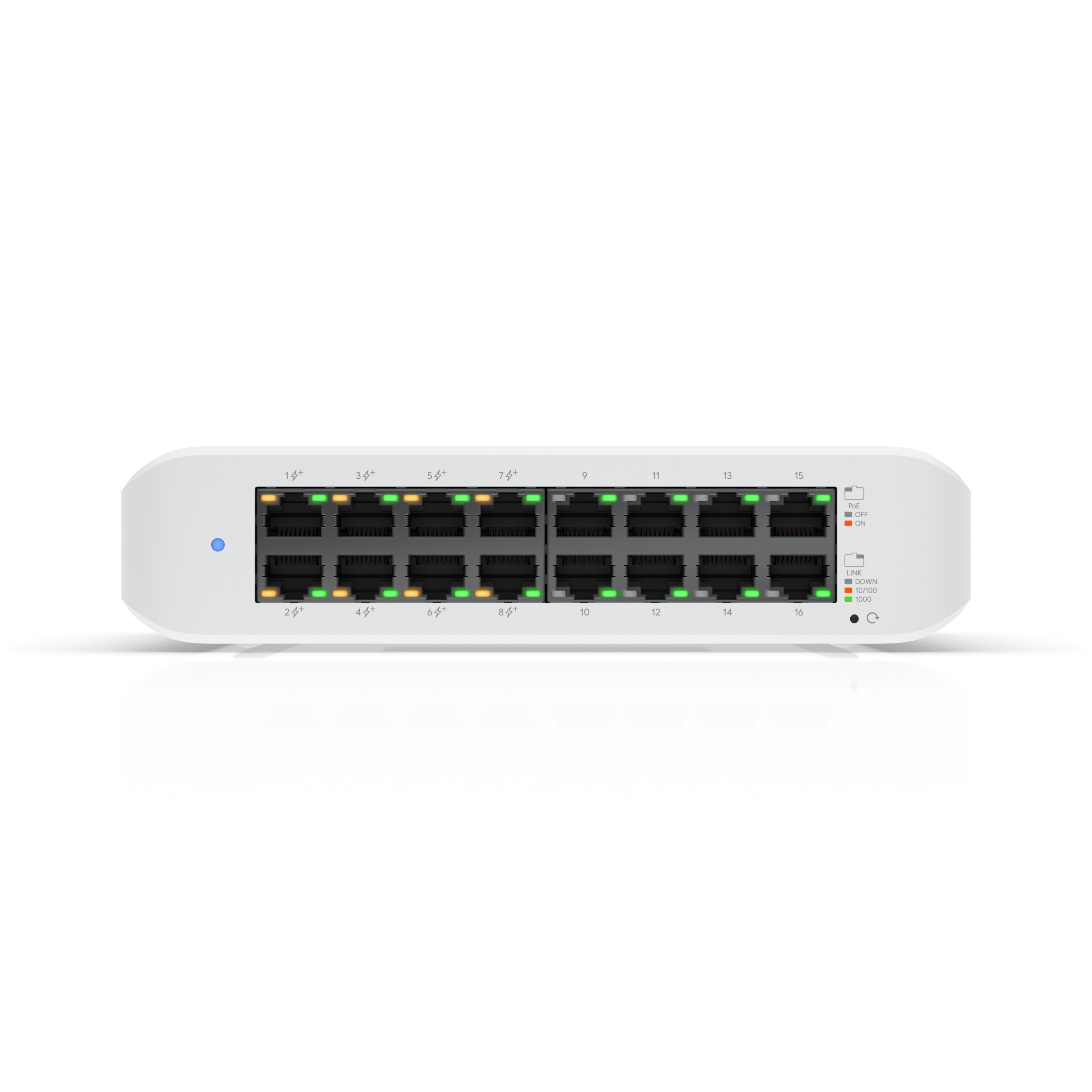

⚡ 16× Gigabit Ports with 8× PoE+ (45W Total)

Easily connect workstations, printers, NAS devices, and other networked equipment while powering up to 8 UniFi Access Points, Protect cameras, or VoIP phones directly via Ethernet — up to 32W per port (45W combined).
This makes it ideal for compact network expansions without requiring external PoE injectors.

🧠 Comprehensive UniFi Management

Fully managed via the UniFi Network platform (v7.2.94 or later), the USW-Lite-16-PoE supports a wide range of Layer 2 features, including:

• VLANs (802.1Q)

• STP/RSTP (Spanning Tree Protocol)

• Port Mirroring and Isolation

• Jumbo Frames

• Storm Control and QoS

• Real-time port and PoE monitoring

All configuration and monitoring are done through the intuitive UniFi interface, available on both web and mobile apps.

🧩 Compact and Silent Design

Thanks to its fanless (noiseless) design, the switch operates silently — ideal for workspaces, libraries, clinics, or home offices.

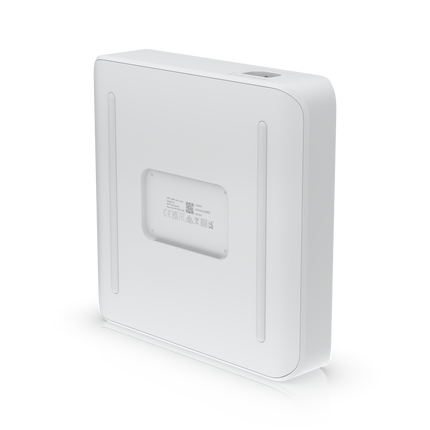

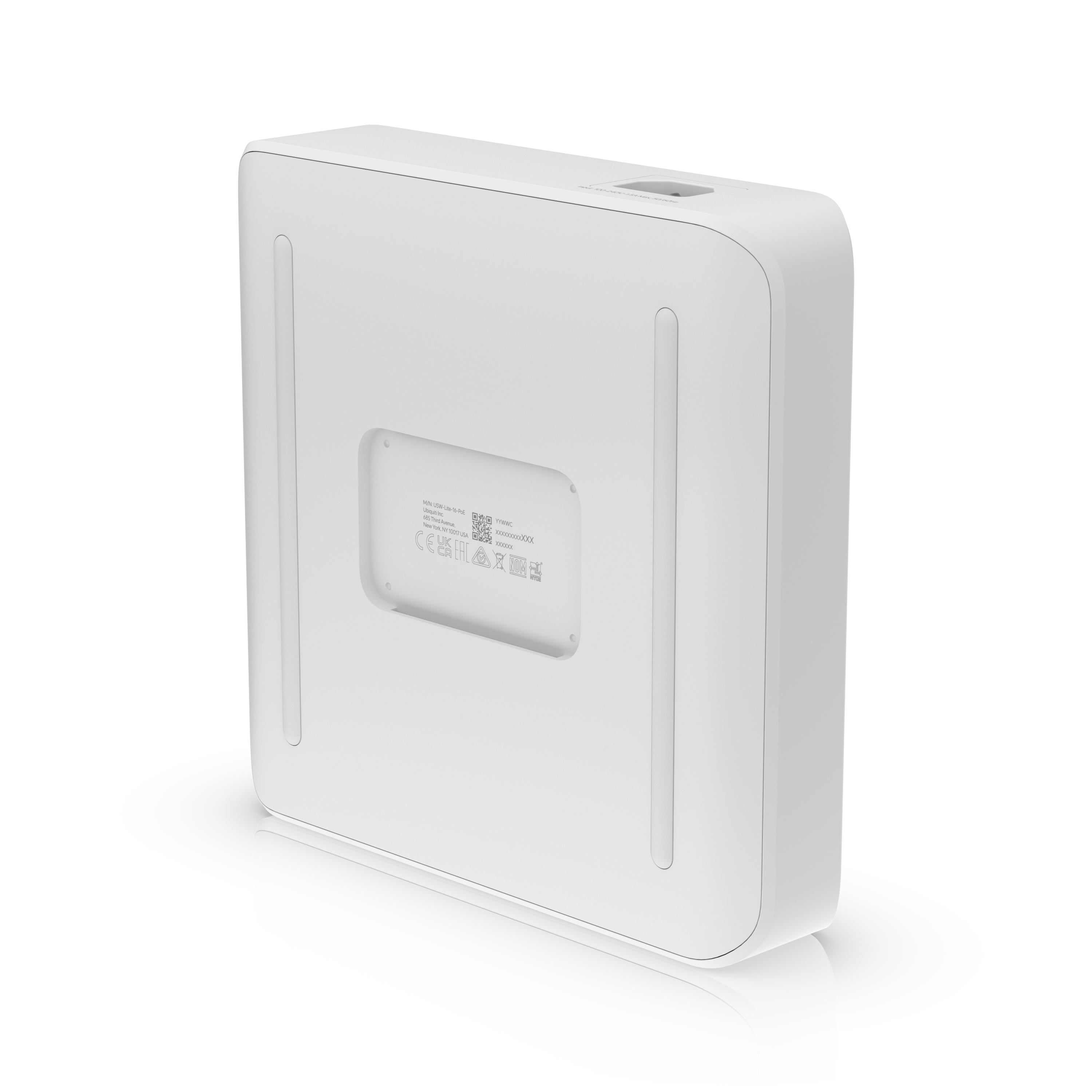

Its compact form factor allows flexible installation: desktop use or wall-mounting with the included kit.

💡 Reliable, Affordable, and Efficient

The USW-Lite-16-PoE delivers enterprise-grade reliability in an affordable, energy-efficient package. It’s the perfect way to expand a UniFi network while keeping power consumption and noise to a minimum.

Technical Specifications

Interfaces

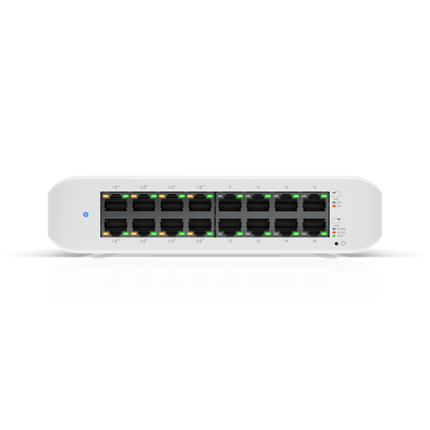

• 16× 1GbE RJ45 ports

• 8× PoE+ ports (802.3af/at)

• Total PoE Budget: 45W

• Max PoE per Port: 32W

Performance

• Switching Capacity: 32 Gbps

• Non-Blocking Throughput: 16 Gbps

• Forwarding Rate: 23.8 Mpps

• MAC Address Table: 8,000 entries

Power

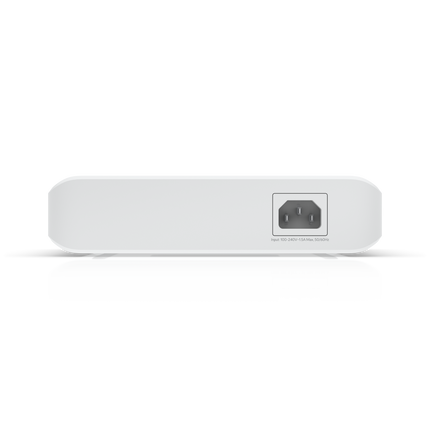

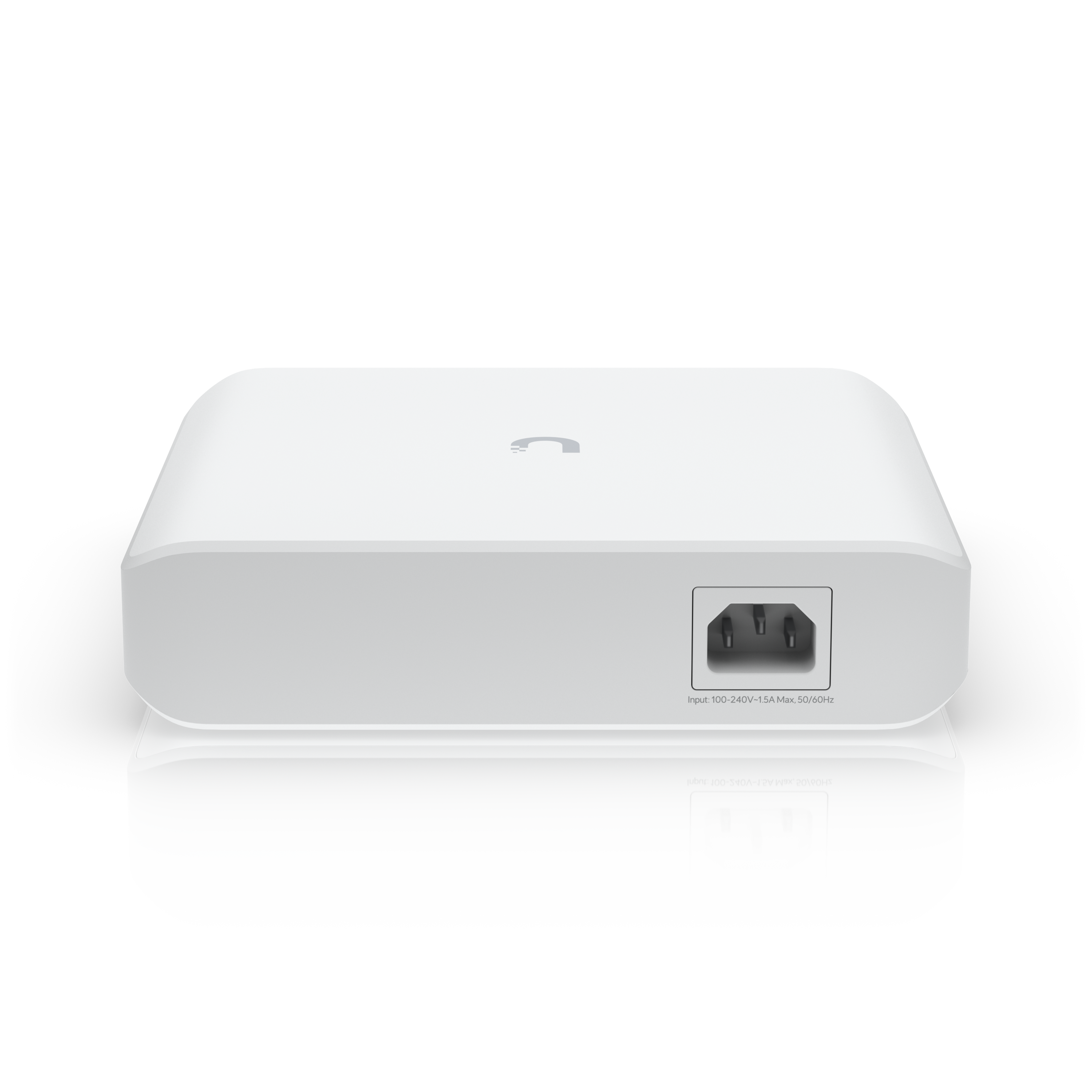

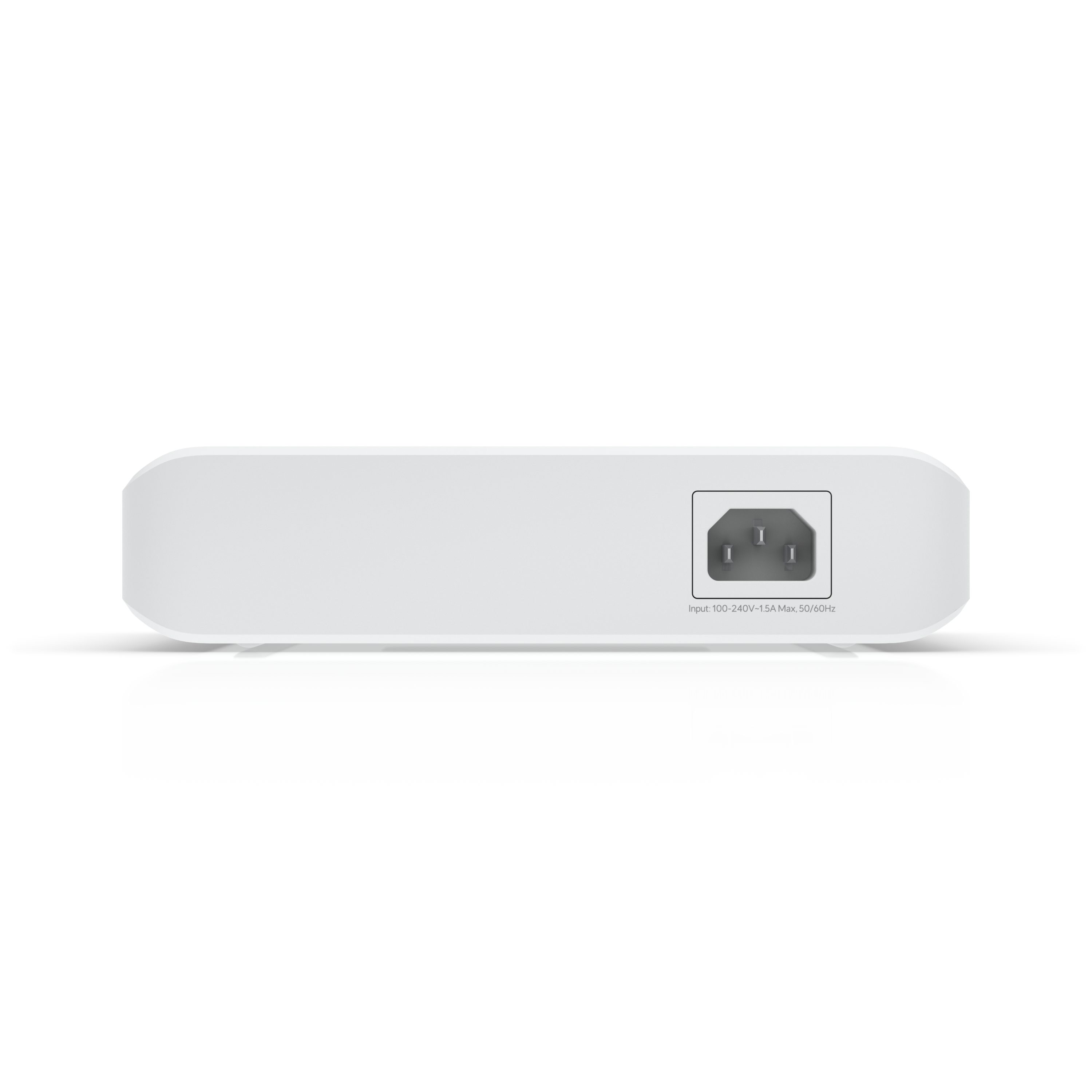

• Power Input: External AC/DC adapter (included)

• Maximum Power Consumption: 50W (including PoE output)

Mechanical & Environmental

• Dimensions: 191 × 84 × 43 mm

• Weight: 800 g

• Cooling: Passive (fanless)

• Mounting: Desktop or wall-mount (kit included)

• Operating Temperature: 0 to 40 °C

• Humidity: 10–90% (non-condensing)

Certifications

• CE, FCC, IC

• NDAA Compliant: Yes

Ideal For

• Small Businesses & Offices: Power access points, phones, and cameras directly.

• Home & Smart Networks: Quiet, compact, and easy to integrate.

• Retail & Clinics: Perfect for environments requiring silent, reliable networking.

• Cost-Conscious Deployments: Affordable UniFi-managed switch with essential PoE+.
