Description

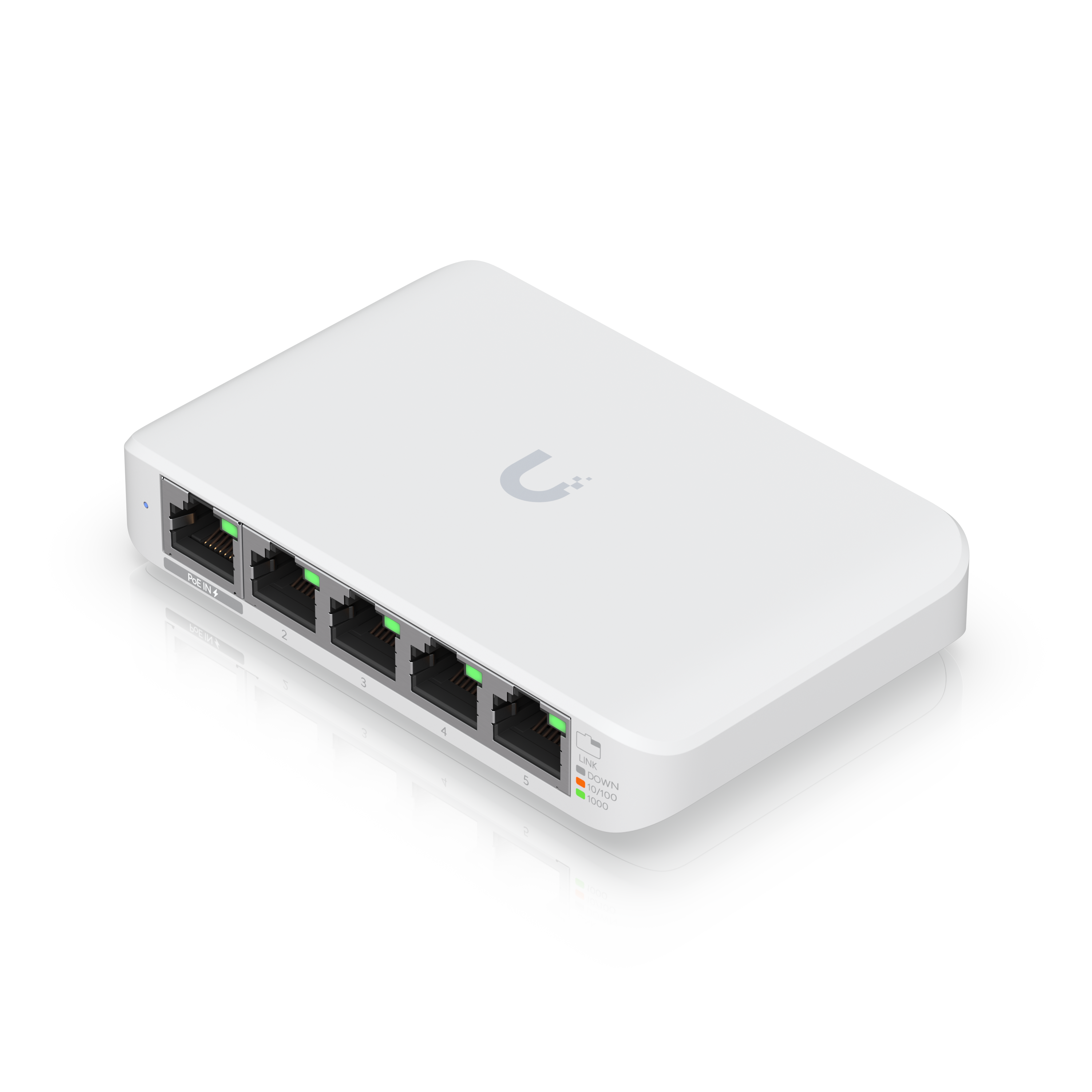

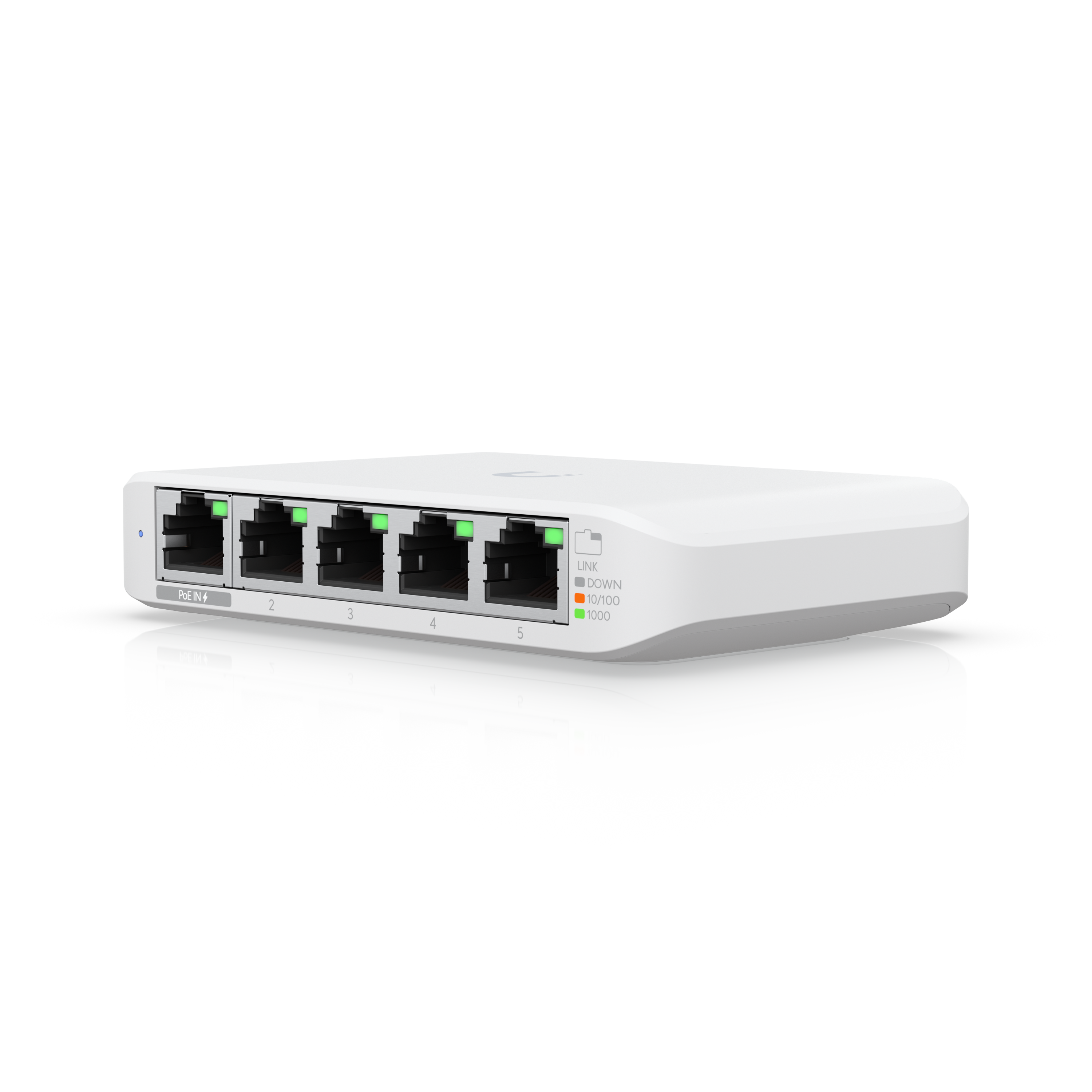

UniFi Switch Flex Mini (USW-Flex-Mini): Compact Managed 5-Port Gigabit Layer 2 Switch with PoE or USB-C Power

The Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini) is a fully managed Layer 2 Gigabit switch designed to deliver seamless wired connectivity in compact or space-constrained environments. Featuring five Gigabit Ethernet ports, PoE or USB-C power options, and silent fanless operation, it’s the perfect choice for desktops, media centers, and small offices.

UniFi Gigabit Connectivity in a Compact Form

The USW-Flex-Mini is the smallest member of the UniFi switch family — providing a cost-effective, elegant, and fully managed way to expand your wired network.
It includes five RJ45 Gigabit ports for high-speed local connections, ideal for workstations, smart TVs, VoIP phones, or access points in environments where space is at a premium.

Power it conveniently through PoE (802.3af/at) on Port 1 — perfect when connected to another UniFi PoE switch — or via USB-C using a standard power adapter.
Integrated into the UniFi Network platform, the Flex Mini offers essential Layer 2 features such as per-port VLAN configuration, port mirroring, and client statistics, all managed centrally through the UniFi Controller (web or mobile app).

Note: The USW-Flex-Mini does not provide PoE output to other devices.

Key Features

⚙️ Compact Layer 2 Management

• Full UniFi Network integration for remote monitoring and configuration.

• Supports VLAN tagging, port mirroring, and per-port control.

• View real-time traffic and client statistics directly from the UniFi dashboard.

🔌 Flexible Power Options

• Port 1 PoE input: Supports 802.3af/at PoE for clean, cable-free installations.

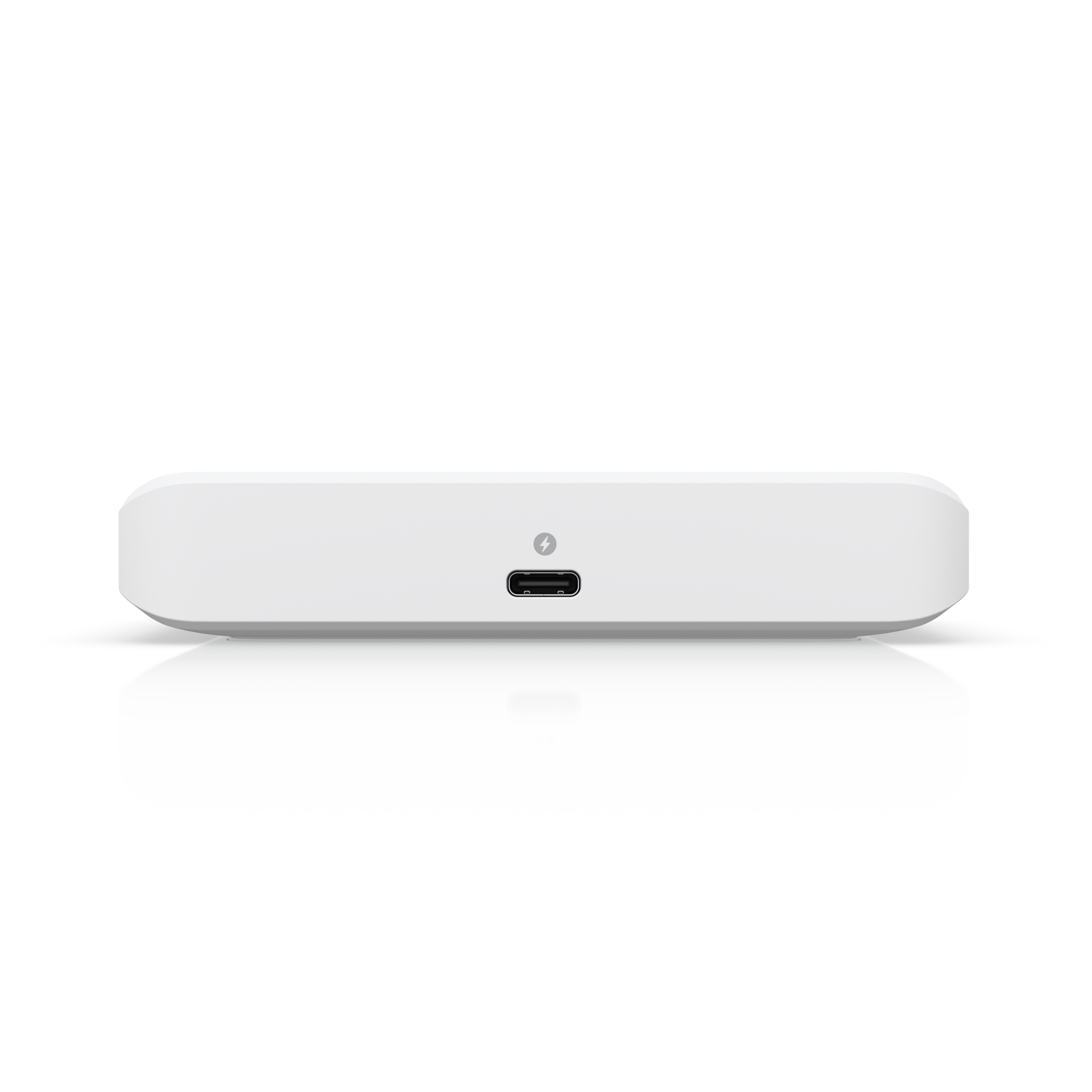

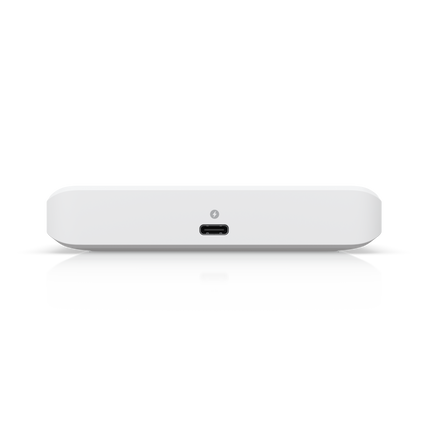

• USB-C power: Operates with any standard 5V USB-C power adapter.

🔇 Silent, Fanless Operation

• No moving parts — completely silent and ideal for noise-sensitive environments like offices or living rooms.

🧩 Perfect UniFi Ecosystem Integration

• Managed via the UniFi Network Controller (version 5.12.5 or higher).

• Supports automatic adoption, updates, and monitoring across the UniFi ecosystem.

Technical Specifications

General

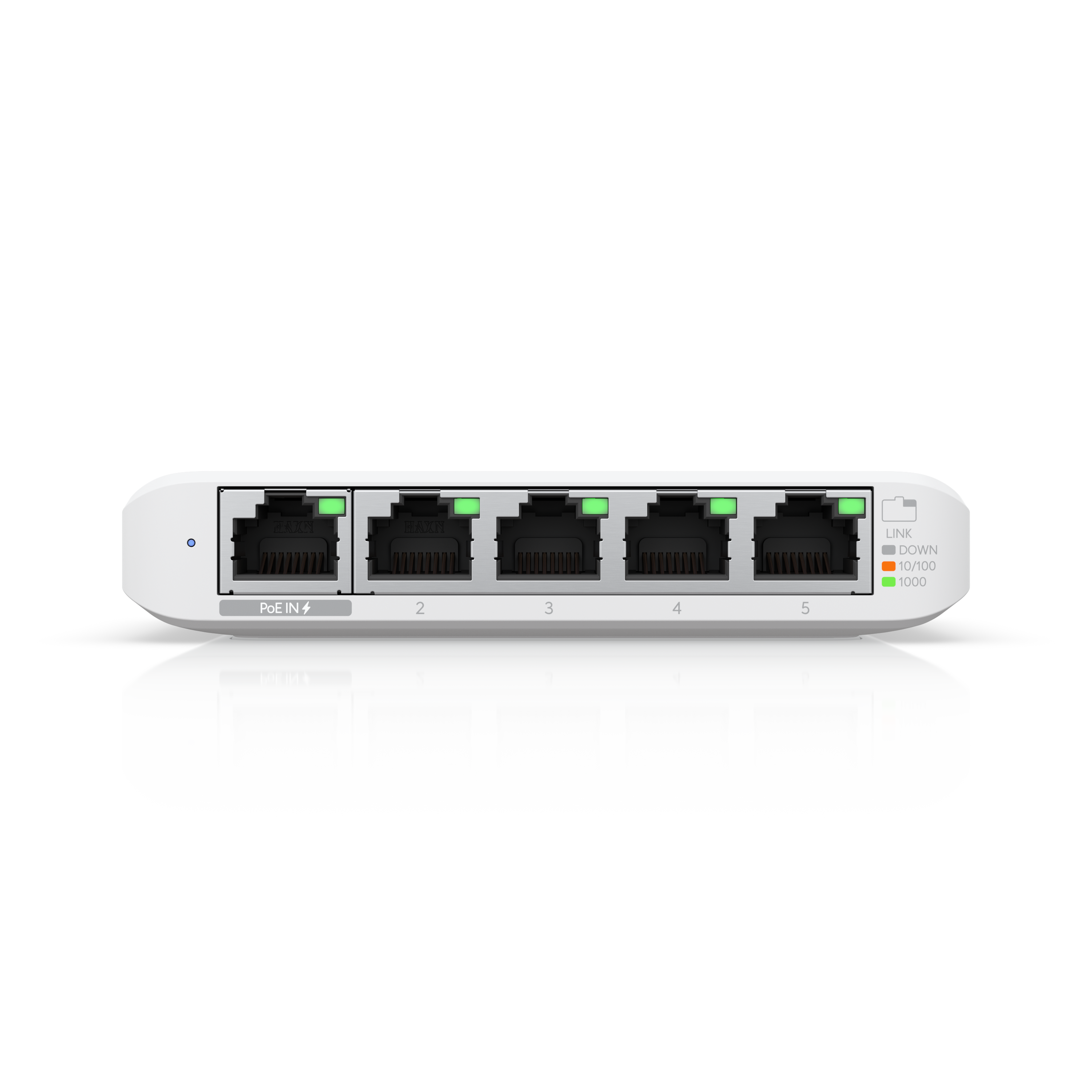

• Ports: 5× Gigabit Ethernet RJ45 (10/100/1000 Mbps)

• Port 1 PoE Input: 802.3af/at (PoE In)

• PoE Output: None (input only)

• Management Platform: UniFi Network (Web & Mobile App)

Performance

• Switching Capacity: 10 Gbps

• Non-Blocking Throughput: 5 Gbps

• Forwarding Rate: 7.44 Mpps

• MAC Address Table: 8,000 entries

Power

• PoE Input (Port 1): 802.3af/at, 5W typical

• USB-C Power Input: 5V DC, 1A (adapter not included)

• Max Power Consumption: 5W

Physical & Environmental

• Dimensions: 107.16 × 70.15 × 21.17 mm

• Weight: 150 g

• Cooling: Fanless

• Operating Temperature: 0 to 40 °C

• Humidity: 10–90% (non-condensing)

Certifications

• CE, FCC, IC

• NDAA Compliant: Yes

Ideal For

• Home offices and workstations: Add wired ports for desktops, printers, or NAS devices.

• Conference rooms and AV setups: Power-efficient, silent switch for multimedia systems.

• Small businesses: Expand local connectivity easily while maintaining centralized management.

• UniFi users: Perfect as a compact extension of larger UniFi networks.
