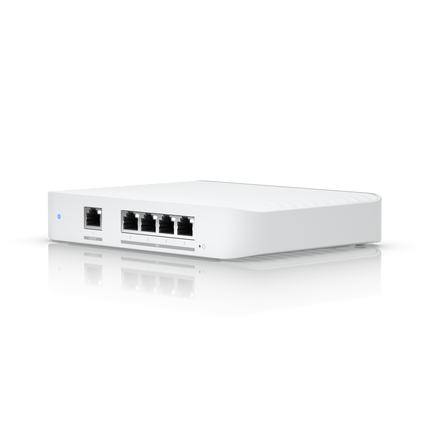

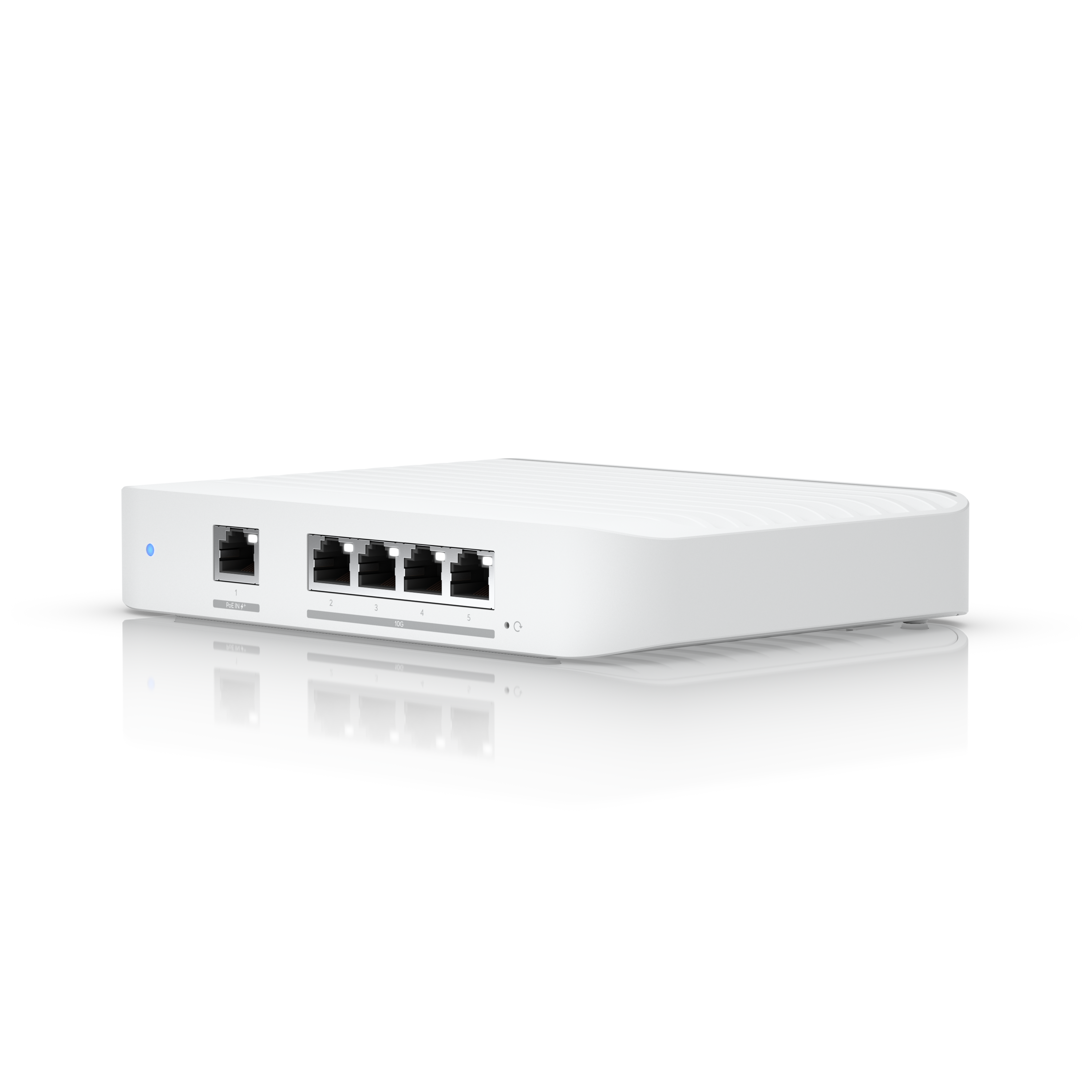

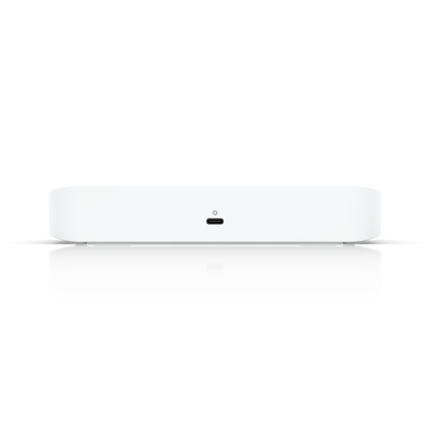

UniFi Switch Flex XG (USW-Flex-XG): Compact Managed 10GbE Switch (4× 10GbE + 1× GbE Uplink)

The Ubiquiti UniFi Switch Flex XG (USW-Flex-XG) brings 10 Gigabit Ethernet performance to a compact, silent, and fully managed form factor. Featuring four 10GbE RJ45 ports (10GBASE-T) and one additional Gigabit port for uplink or management, this Layer 2 switch is the ideal solution for high-speed NAS, servers, creative studios, and home lab environments where performance meets simplicity.

⚡ Compact 10GbE Connectivity for High-Speed Networks

With four 10GbE RJ45 ports, the USW-Flex-XG enables ultra-fast data transfers between workstations, servers, and storage systems — perfect for media production, virtualization labs, and file-intensive workflows.
Whether you’re editing 8K footage, running a render farm, or syncing large datasets, this switch ensures non-blocking throughput at full 10G speeds.

🔗 Flexible GbE Uplink

The additional 1GbE port serves as an uplink to your broader UniFi network or as an extra expansion port for devices that don’t require 10GbE, offering versatility in any environment.

🔌 Dual Powering Options (PoE In or USB-C)

Choose the most convenient way to power the device:

• PoE In via GbE port (802.3at) — clean single-cable setup from a PoE switch or injector.

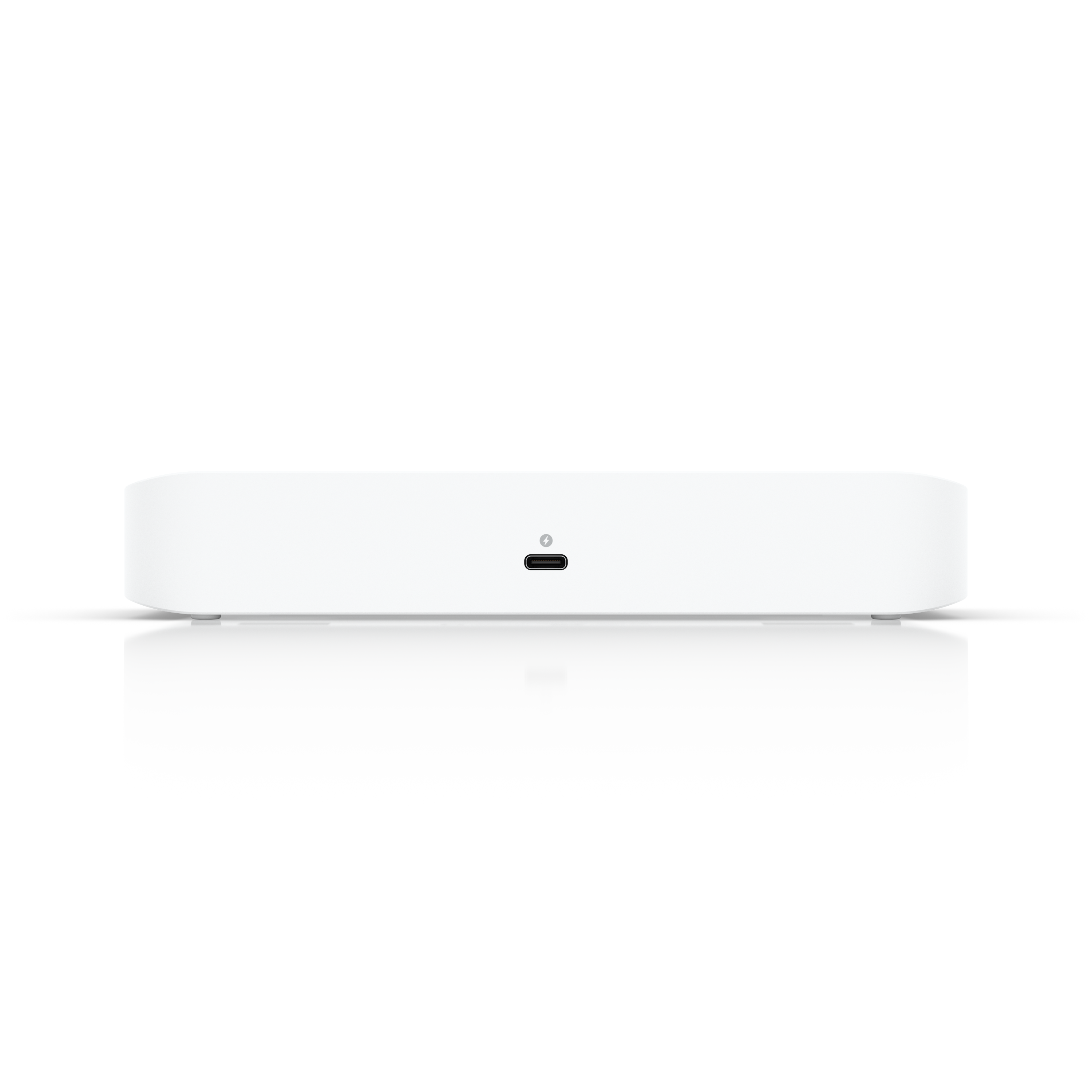

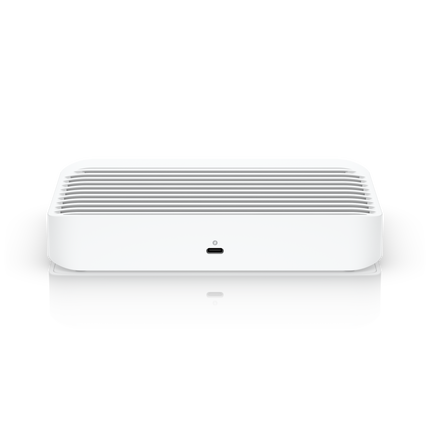

• USB-C (5V/5A) — simple power option using a standard USB-C adapter (sold separately).

Both options provide stable operation with minimal power consumption.

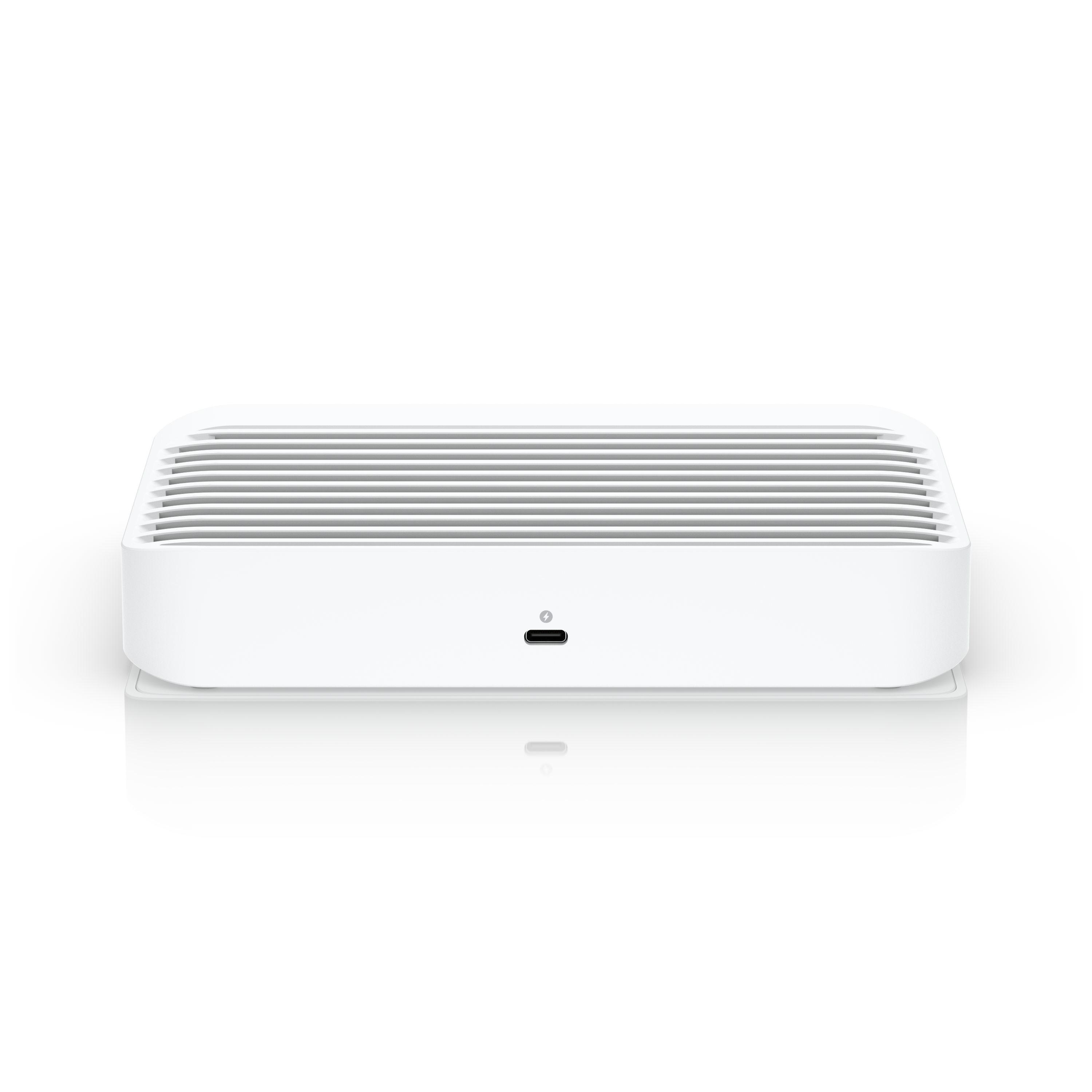

🧩 Compact, Silent, and Versatile Design

With its small footprint and near-silent cooling, the USW-Flex-XG fits perfectly on desks, walls, or shelves — ideal for studios, offices, home labs, or production environments where noise and space efficiency matter.

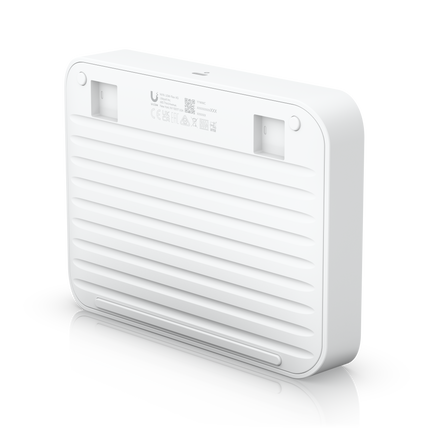

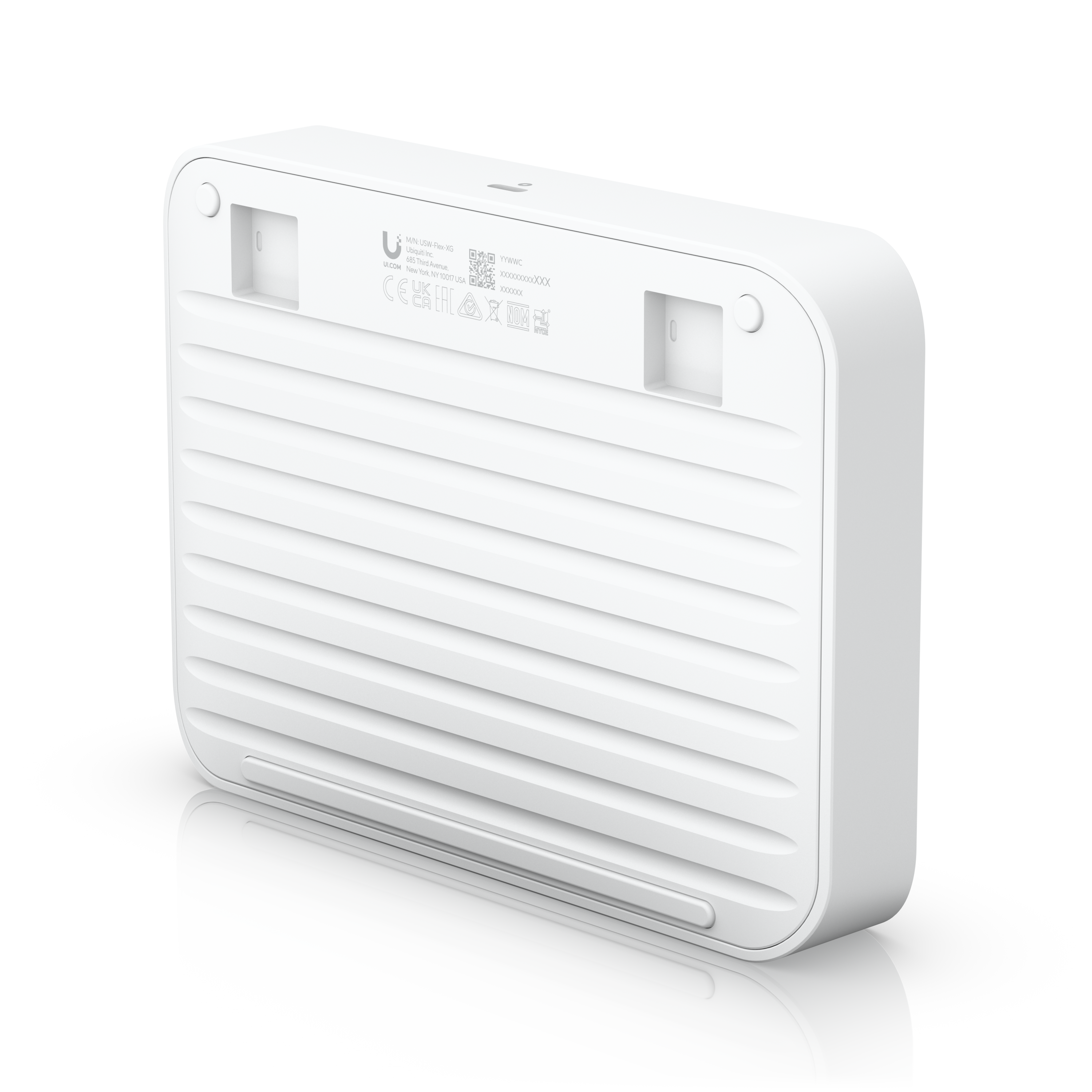

Its Flex-style chassis allows for desktop placement or wall mounting, maintaining a clean, professional setup.

🧠 Centralized UniFi Network Management

Managed through the UniFi Network Controller, the USW-Flex-XG provides full control over advanced Layer 2 switching features, including:

• VLANs (802.1Q)

• STP/RSTP (Spanning Tree Protocol)

• LACP (Link Aggregation)

• IGMP Snooping

• ACLs (MAC/IP filtering)

• Port Mirroring

• QoS and Traffic Prioritization

All configuration and monitoring are handled via the UniFi web interface or mobile app, ensuring seamless integration into any UniFi deployment.

Technical Specifications

Interfaces

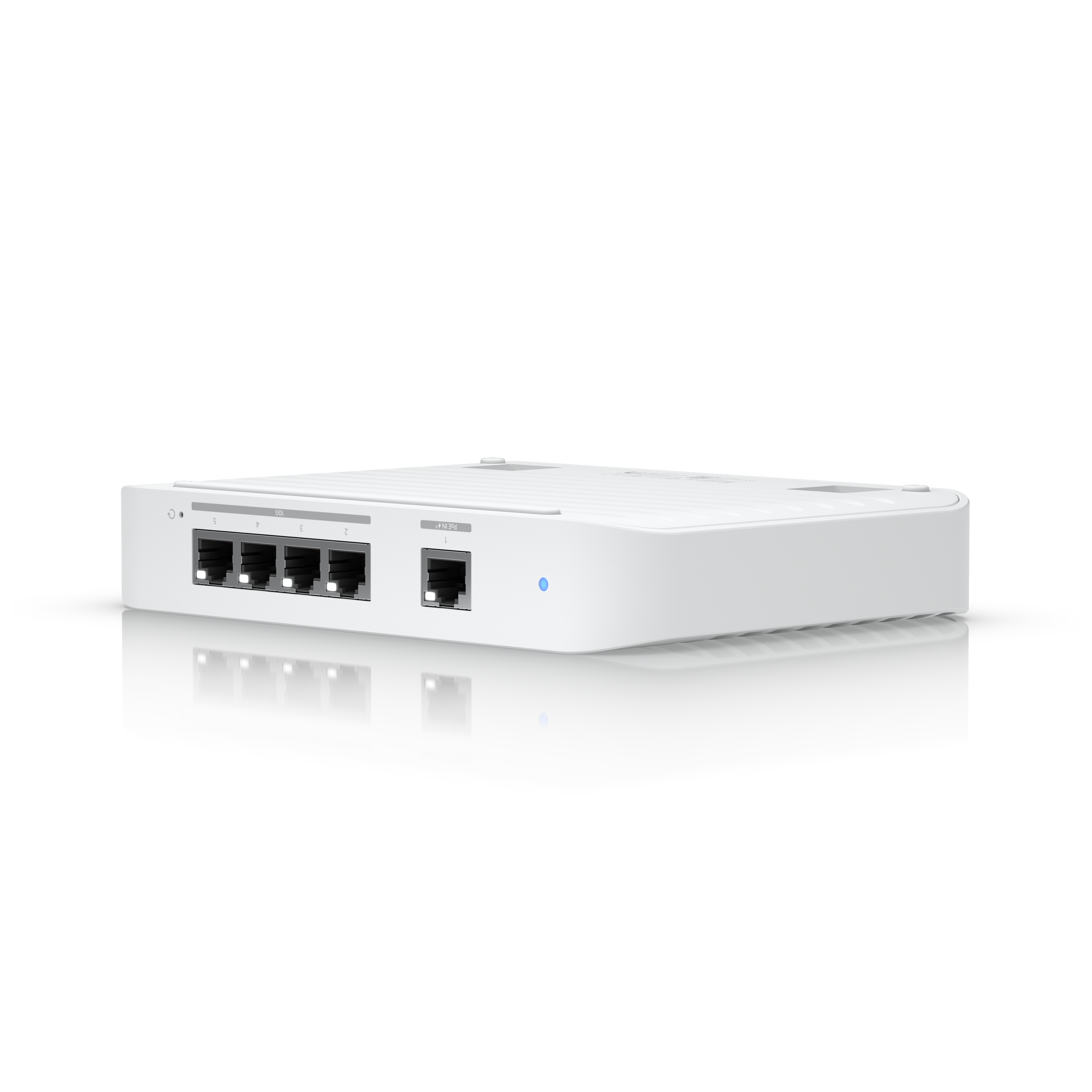

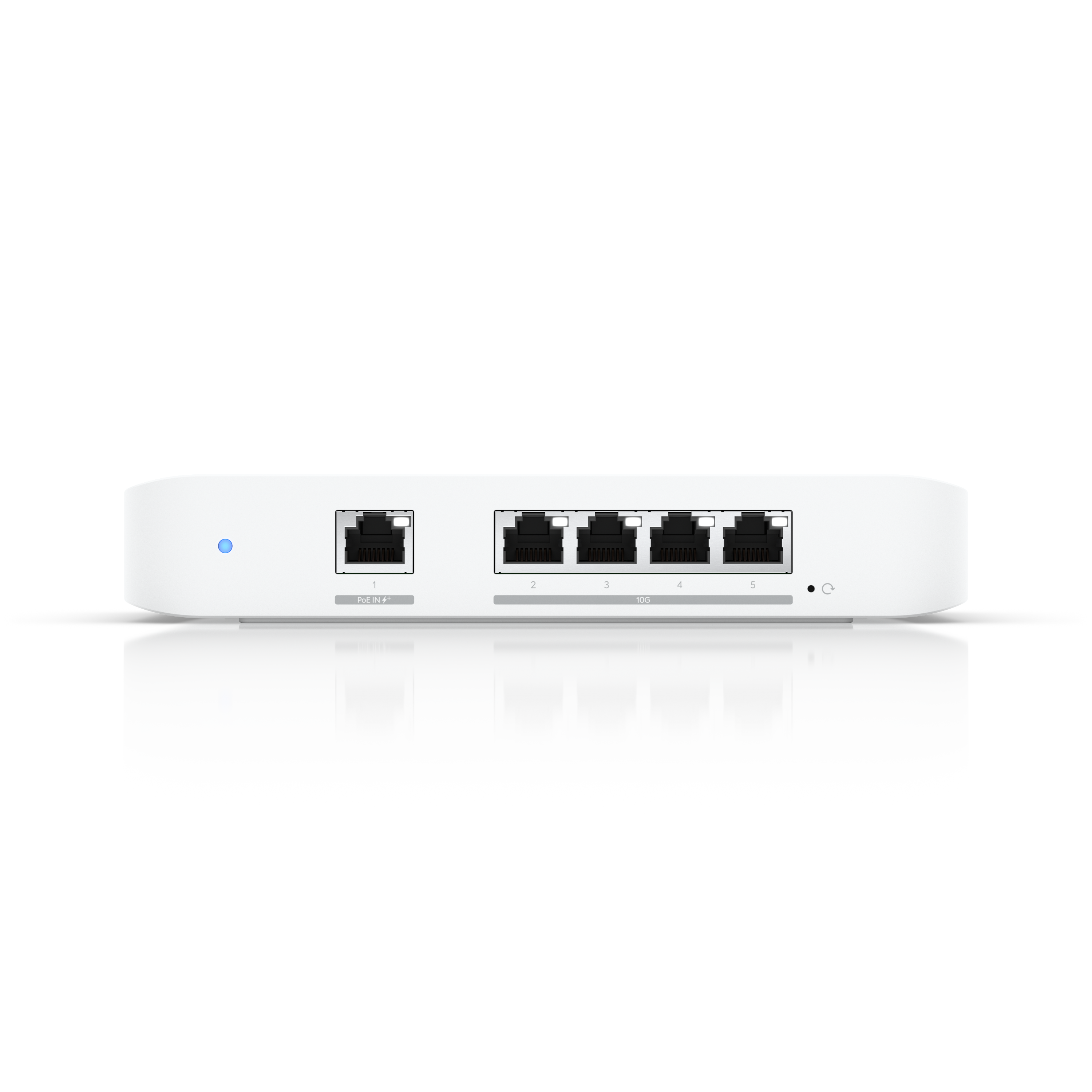

• 4× 10GbE RJ45 (10/5/2.5/1G/100M)

• 1× 1GbE RJ45 (PoE In / Uplink)

• Management: Ethernet / UniFi Network

Performance

• Switching Capacity: 80 Gbps

• Non-Blocking Throughput: 40 Gbps

• Forwarding Rate: 59.5 Mpps

• MAC Address Table: 16,000 entries

• Layer: Managed Layer 2

Power

• Power Input:

  • PoE In (802.3at via GbE port)

  • USB-C (5V/5A, optional adapter)

• Maximum Power Consumption: 16.5W

Mechanical & Environmental

• Dimensions: 122 × 107 × 28 mm

• Weight: 460 g

• Cooling: Near-silent active cooling

• Mounting: Desktop or wall-mount (kit included)

• Operating Temperature: 0 to 40 °C

• Humidity: 10–90% (non-condensing)

Certifications

• CE, FCC, IC

• NDAA Compliant: Yes

Ideal For

• Home Labs & Power Users: 10GbE backbone for servers, NAS, and high-performance PCs.

• Creative Studios: Fast 10G editing network for 4K/8K media and large file transfers.

• Small Businesses: Compact 10GbE switch for server rooms or network upgrades.

• Hybrid Networks: Combine 10G backbones with standard GbE edge devices.
