Description

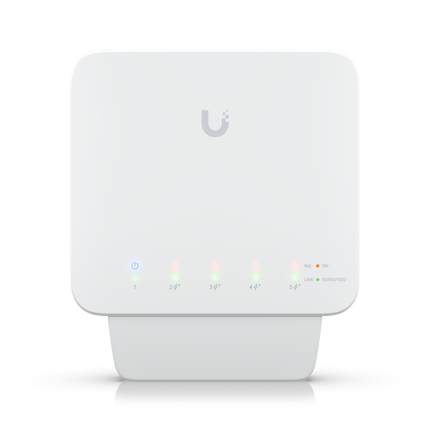

UniFi Switch Flex (USW-Flex): Managed Layer 2 5-Port Gigabit PoE Switch for Indoor and Outdoor Environments

The Ubiquiti UniFi Switch Flex (USW-Flex) is a fully managed, weather-resistant (IP55) Layer 2 Gigabit switch designed for flexible indoor and outdoor installations. Featuring five Gigabit Ethernet ports — including four PoE output ports (802.3af) — it can deliver up to 46W of total PoE power, depending on the input source. Compact, silent, and fully integrated with the UniFi Network platform, the USW-Flex provides a robust, plug-and-play solution for powering and connecting UniFi Access Points, IP cameras, VoIP phones, and other PoE devices.

Versatile PoE Connectivity — Indoors or Outdoors

The USW-Flex combines flexibility, reliability, and intelligent power delivery in one compact switch.
Powered via PoE In (802.3af/at/bt) or an optional 60W PoE adapter, it can output PoE (802.3af) on up to four ports, eliminating the need for local power outlets.

Its IP55-rated enclosure allows safe installation in semi-outdoor or outdoor environments such as building facades, rooftops, garages, warehouses, or garden areas — providing reliable operation even under challenging conditions.

Managed through UniFi Network, it offers full Layer 2 functionality including VLANs, Port Profiles, STP/RSTP, and port mirroring, ensuring secure and efficient traffic control across all connected devices.

Key Features

⚡ Flexible Power Input & PoE Output

• PoE In (Port 1): Supports 802.3af/at/bt or optional 60W PoE adapter.

• PoE Out (Ports 2–5): Up to 802.3af, max 15.4W per port.

• Total PoE Budget: Up to 46W (depending on power source).

🌦️ Weather-Resistant (IP55) Design

• Durable enclosure rated for dust and water protection.

• Ideal for sheltered outdoor and semi-exposed environments.

🧩 UniFi Network Integration

• Centralized management via UniFi Network Controller (web or mobile app).

• Configure VLANs, Port Profiles, STP/RSTP, and mirroring per port.

• Real-time statistics, traffic insights, and device monitoring.

🔇 Compact and Silent Operation

• Fanless cooling for silent performance in any setting.

• Perfect for quiet environments like offices or residential setups.

Technical Specifications

General

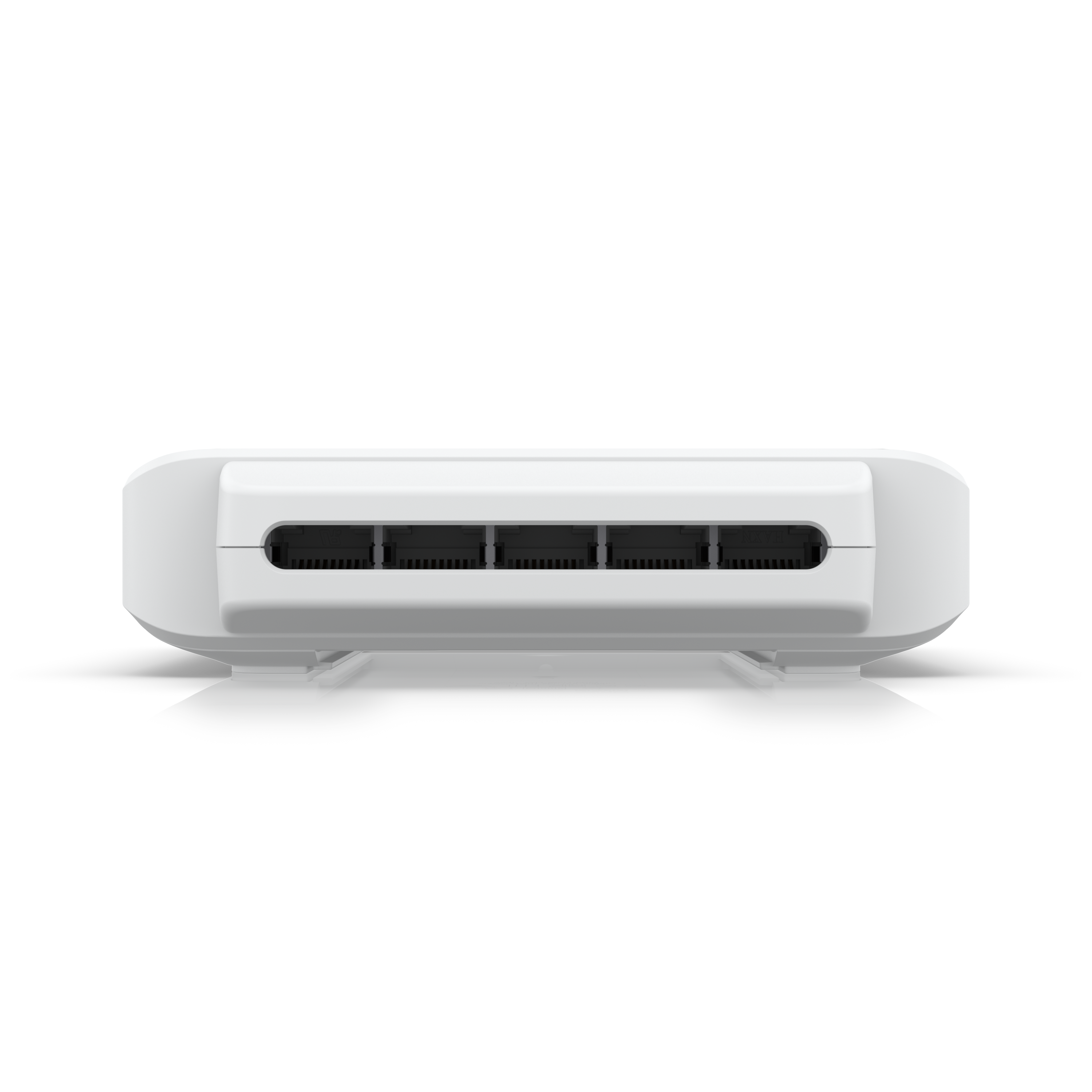

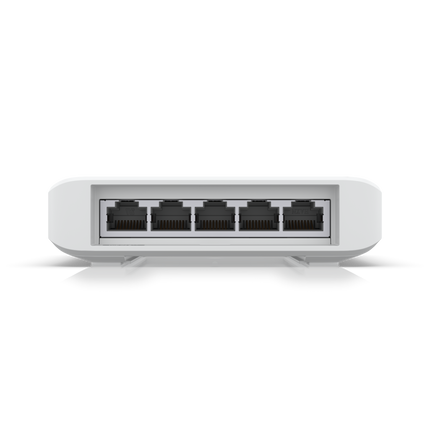

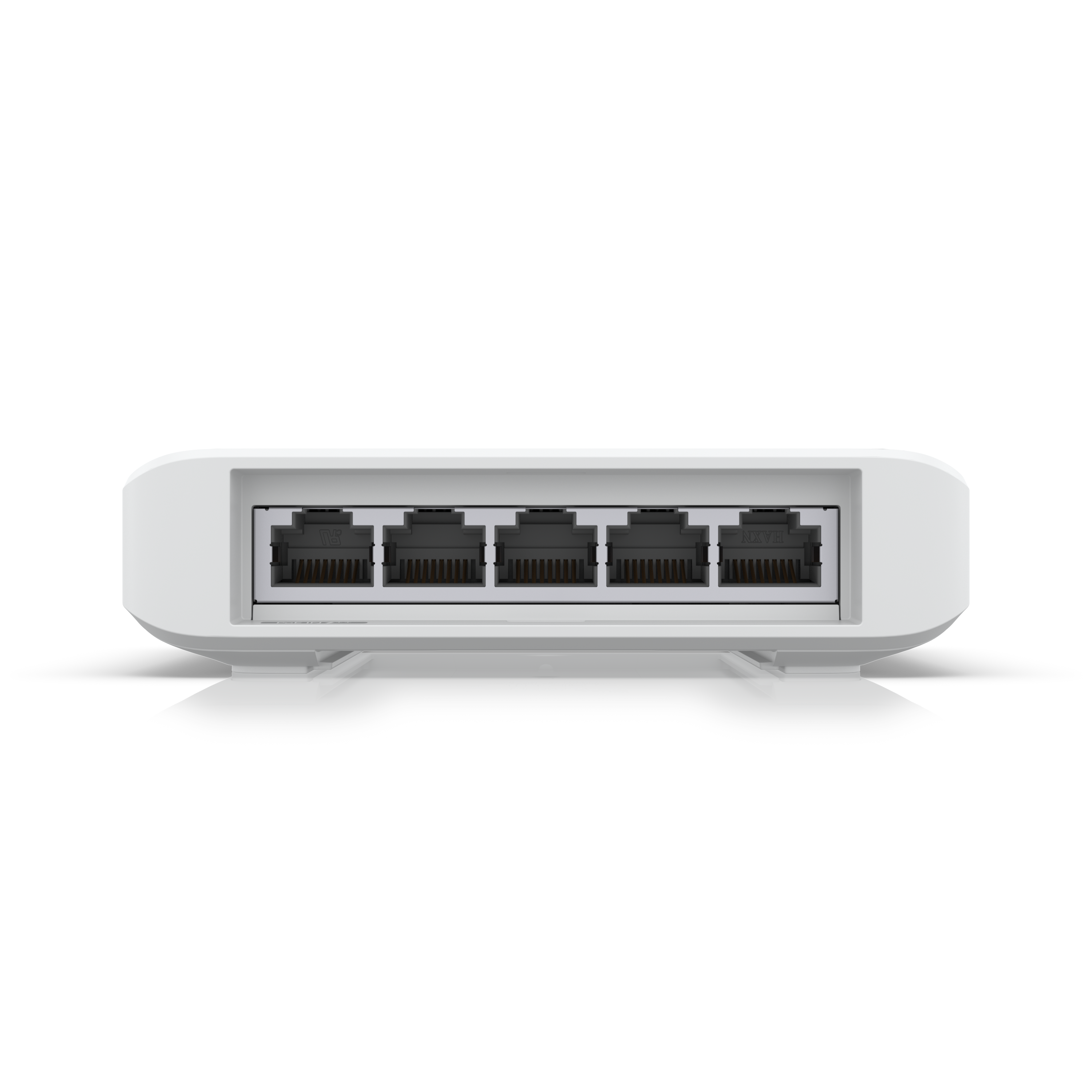

• Ethernet Ports: 5× RJ45 Gigabit Ethernet (10/100/1000 Mbps)

• PoE Input: Port 1 (802.3af/at/bt)

• PoE Output: Ports 2–5 (802.3af, 15.4W max/port)

• PoE Budget: Up to 46W total (with 60W injector)

• Weather Rating: IP55 (dust and water-resistant)

• Enclosure Material: Polycarbonate

Performance

• Switching Capacity: 10 Gbps

• Non-Blocking Throughput: 5 Gbps

• Forwarding Rate: 7.44 Mpps

• MAC Address Table: 8,000 entries

Power

• Input Options:

  • PoE In (802.3af/at/bt) via Port 1

  • Optional 60W Gigabit PoE Adapter (not included)

• Max Power Consumption: 5W (without PoE load)

• PoE Output: Up to 46W total

Physical & Environmental

• Dimensions: 122.5 × 107.1 × 28 mm

• Weight: 230 g

• Cooling: Fanless

• Operating Temperature: -40 to 55 °C

• Humidity: 10–90% (non-condensing)

Certifications

• CE, FCC, IC

• NDAA Compliant: Yes

Ideal For

• Outdoor AP deployments: Power and connect UniFi Access Points on walls, poles, or rooftops.

• Video surveillance: Provide both connectivity and power to multiple UniFi Protect cameras.

• Offices and SMBs: Add PoE flexibility to environments where power outlets are limited.

• IoT and edge networks: Deliver power and connectivity to remote devices in semi-exposed locations.
