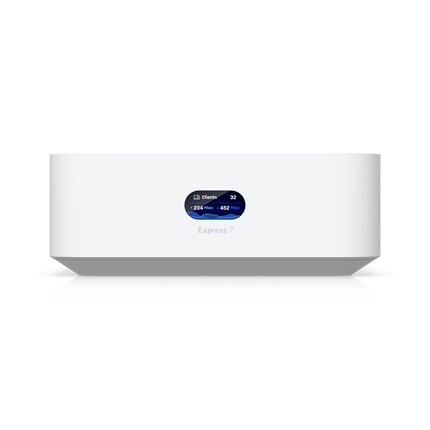

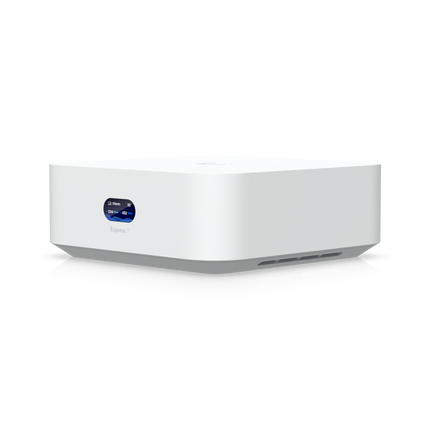

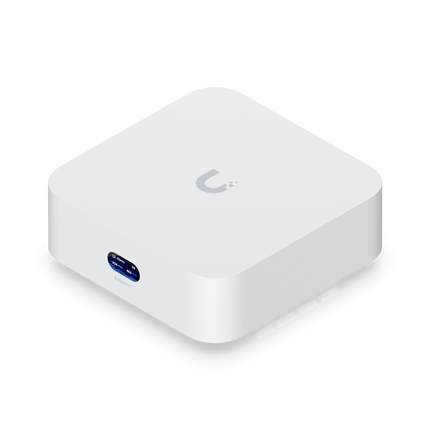

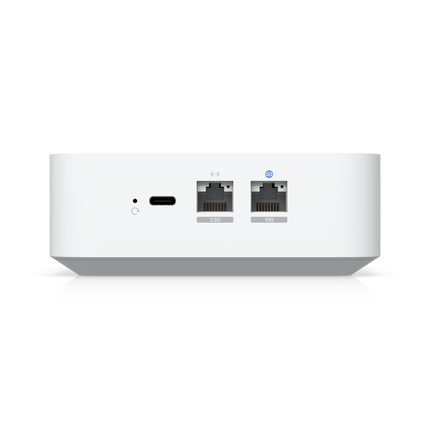

UniFi Express 7 (UX7): Compact Wi-Fi 7 Gateway with Integrated UniFi OS

The Ubiquiti UniFi Express 7 (UX7) is a compact all-in-one gateway that combines a Wi-Fi 7 tri-band access point, router, switch, and UniFi Network controller in a single device. Designed for small businesses, home offices, and advanced users, it delivers multi-gigabit connectivity, enterprise-grade security, and centralized UniFi management in a minimalist form factor.

All-in-One Gateway with Wi-Fi 7 and UniFi OS

The UX7 is the simplest way to experience the full power of the UniFi ecosystem. It integrates a router, firewall, Wi-Fi 7 tri-band AP, and UniFi Network controller into one sleek device that’s ready to deploy straight out of the box.

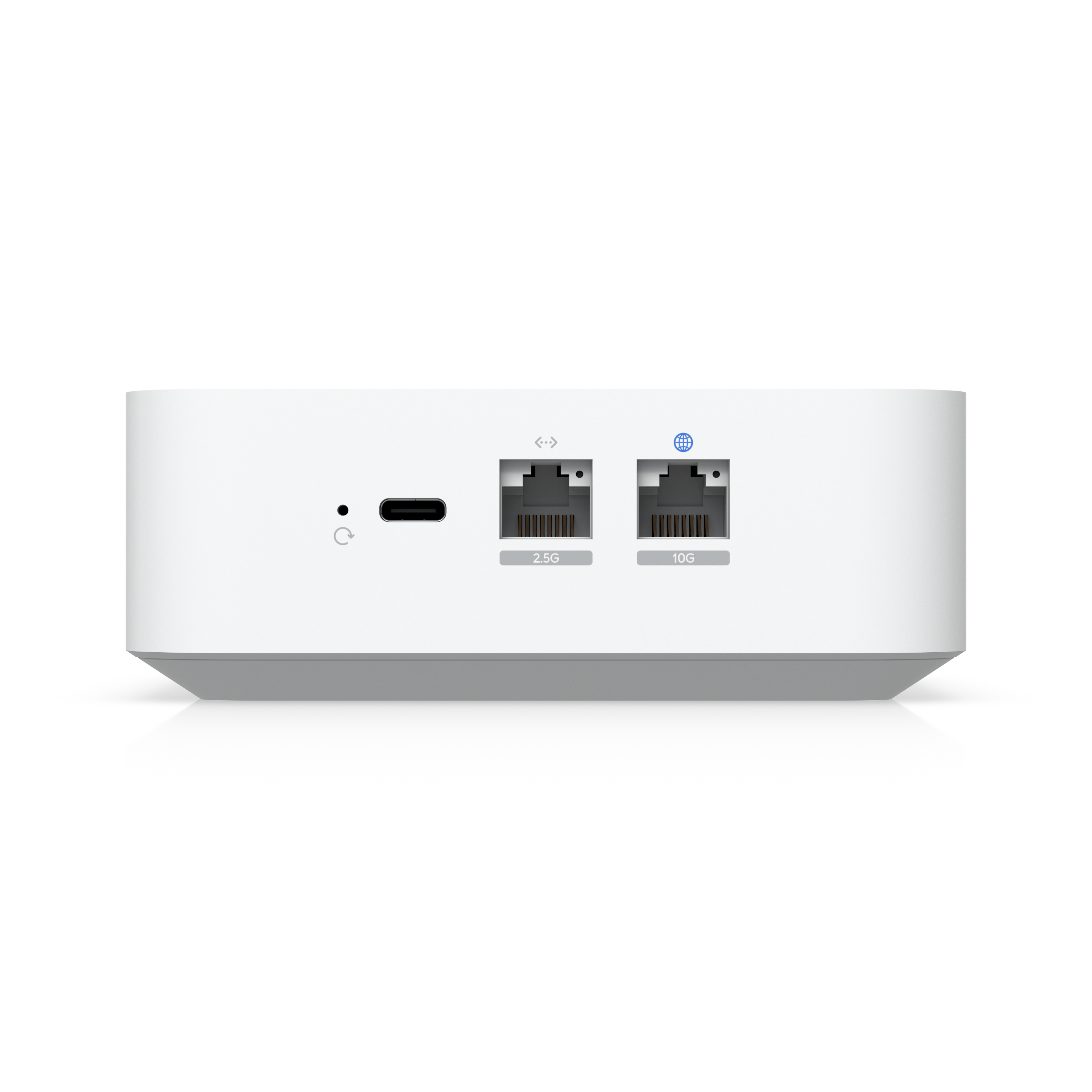

Equipped with a 10 GbE WAN port and a 2.5 GbE LAN port, it’s fully optimized for high-speed fiber connections and fast local transfers, ensuring smooth performance across modern networks.

Why Choose the UniFi Express 7 (UX7)?

⚡ High-Performance Tri-Band Wi-Fi 7

Supports 2.4 GHz, 5 GHz, and 6 GHz bands with theoretical speeds exceeding 10 Gbps. Advanced technologies like OFDMA, MU-MIMO, and Multi-Link Operation (MLO) deliver ultra-low latency, superior throughput, and stability for multiple simultaneous clients.

🌐 Multi-Gigabit Connectivity Ready for Fiber

Features a 10 GbE WAN port for fiber internet and a 2.5 GbE LAN port for high-speed internal links to NAS, PCs, or UniFi switches. Ideal for environments that demand full multi-gig performance.

🔧 Built-In UniFi Network Controller

Includes the UniFi Network application, allowing you to manage up to 30 additional UniFi devices and over 300 Wi-Fi clients from a single, unified interface — accessible via web or mobile app.

🛡️ Enterprise-Grade Security

Includes stateful and Layer 7 firewall, IPS/IDS (up to 2.3 Gbps), content filtering, and VLAN segmentation.
Comprehensive VPN support: Site Magic, OpenVPN, WireGuard, L2TP, and Teleport for secure remote connections and site-to-site networking.

💡 Compact and Modern Design

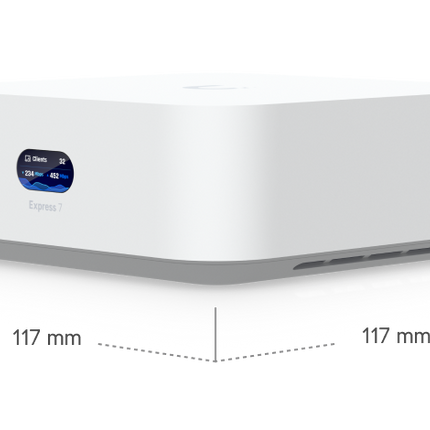

At just 117 x 117 mm, it fits easily on any desk or shelf.

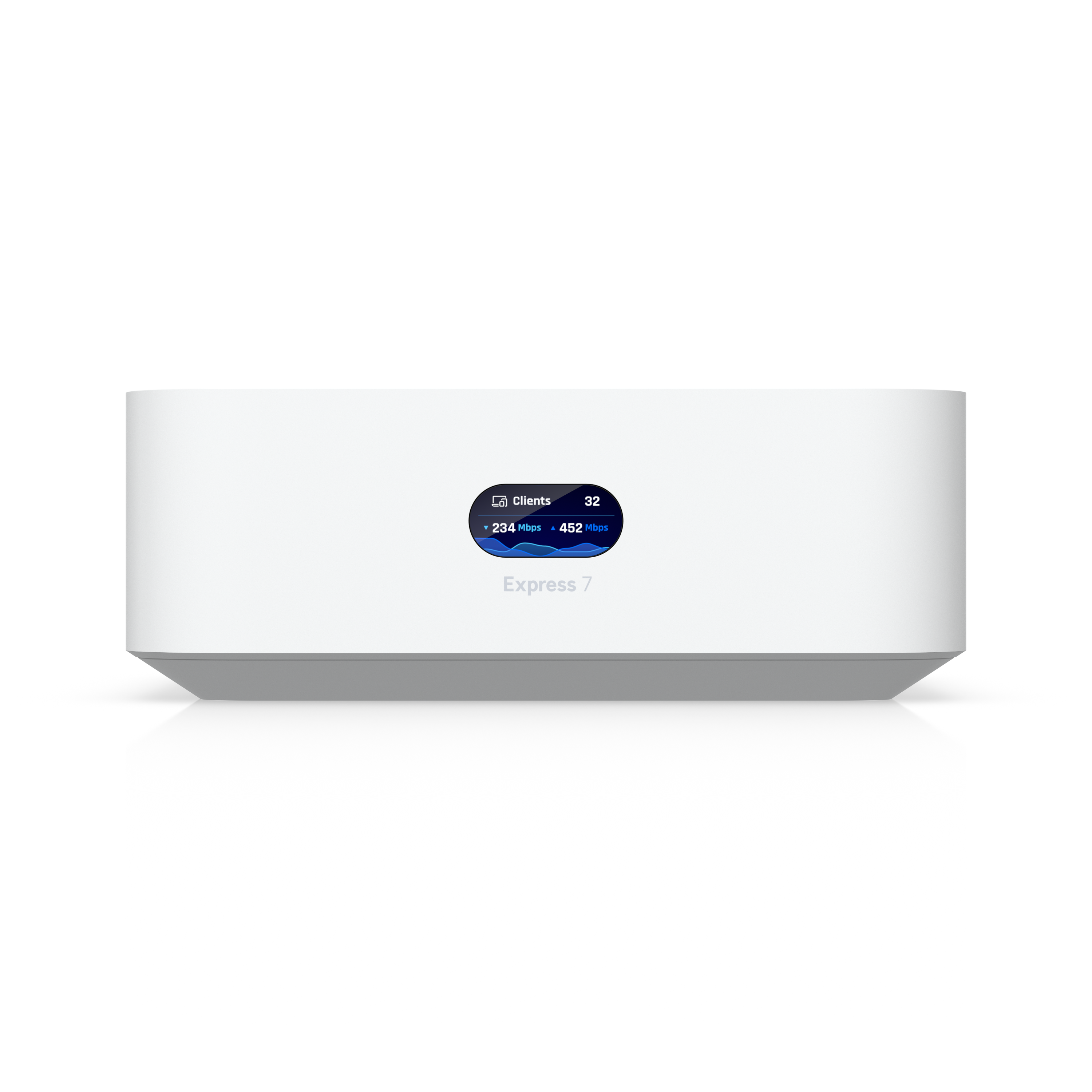

The 0.96" status display provides at-a-glance system and network information.

📶 UniFi Mesh Scalability

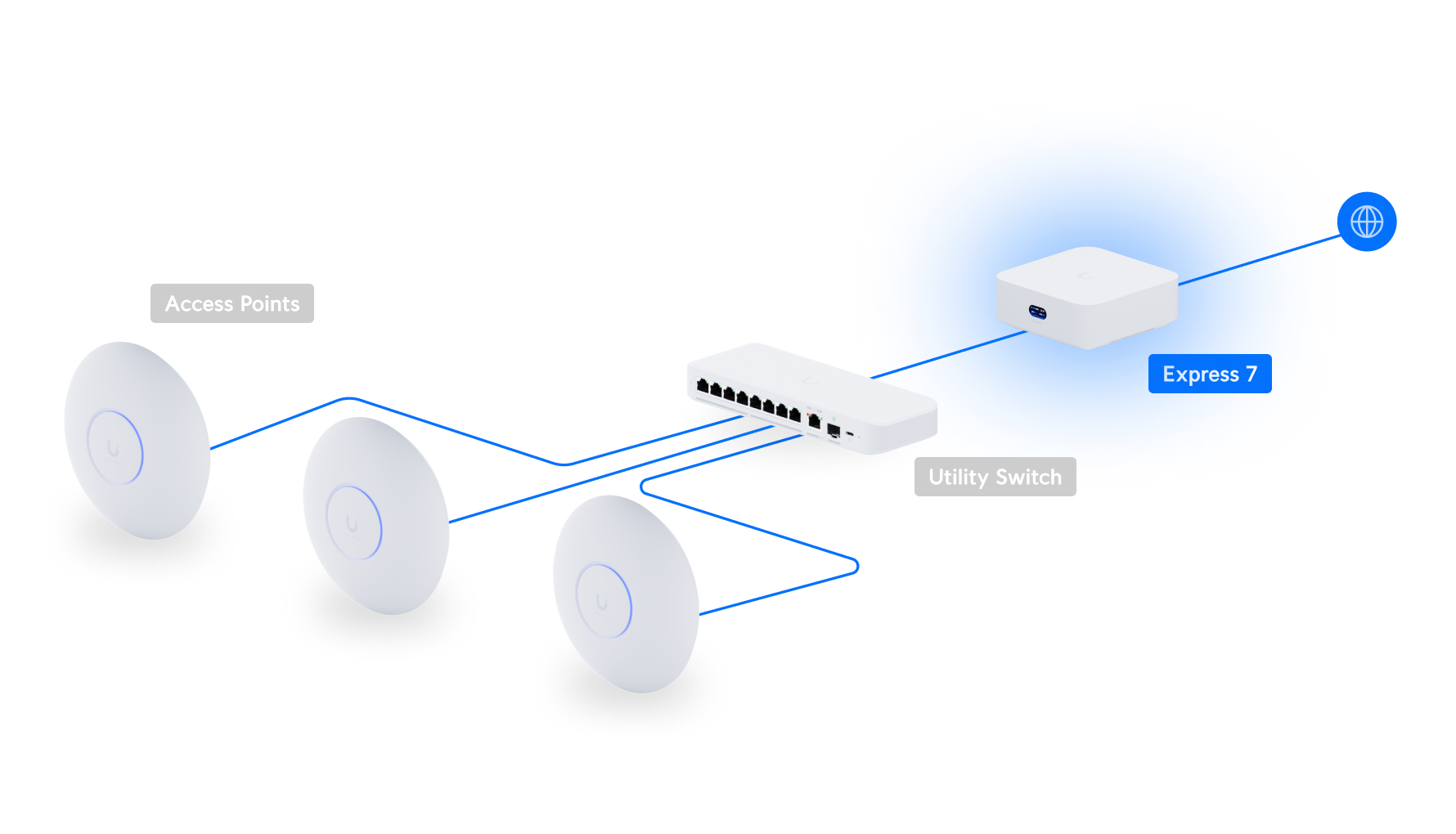

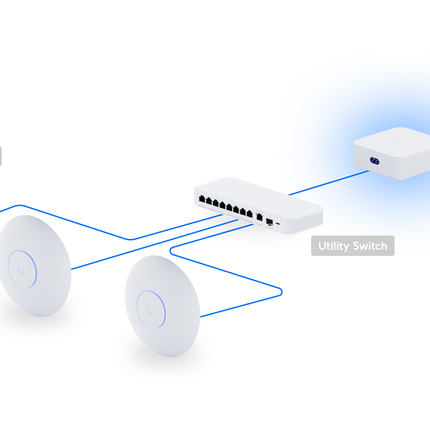

Can act as a primary router or mesh access point, seamlessly expanding coverage across your existing UniFi Wi-Fi network — via cable or wireless uplink.

Perfect For

• Advanced Home Users (Power Users): Next-gen Wi-Fi 7 and full UniFi control in a simple, compact form.

• Small Businesses and Offices: Professional-grade networking and security in a single, elegant unit.

• New UniFi Users: The easiest entry point into the UniFi ecosystem — gateway, AP, and controller combined.

• Multi-Gig Fiber Users: Fully utilize 10 GbE fiber speeds with robust routing and IPS performance.

• Expanding UniFi Wi-Fi Coverage: Works as a standalone gateway or mesh AP in existing UniFi deployments.

Technical Specifications – UniFi Express 7 (UX7)

Mechanical

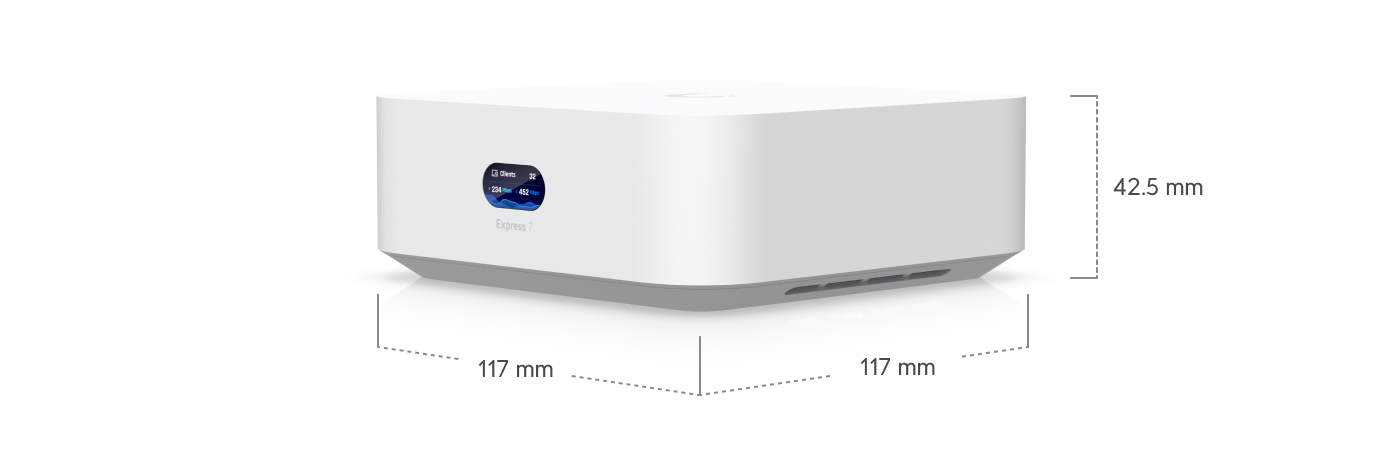

• Dimensions: 117 × 117 × 42.5 mm

• Weight: 422 g

• Material: Polycarbonate

• Mounting: Desktop

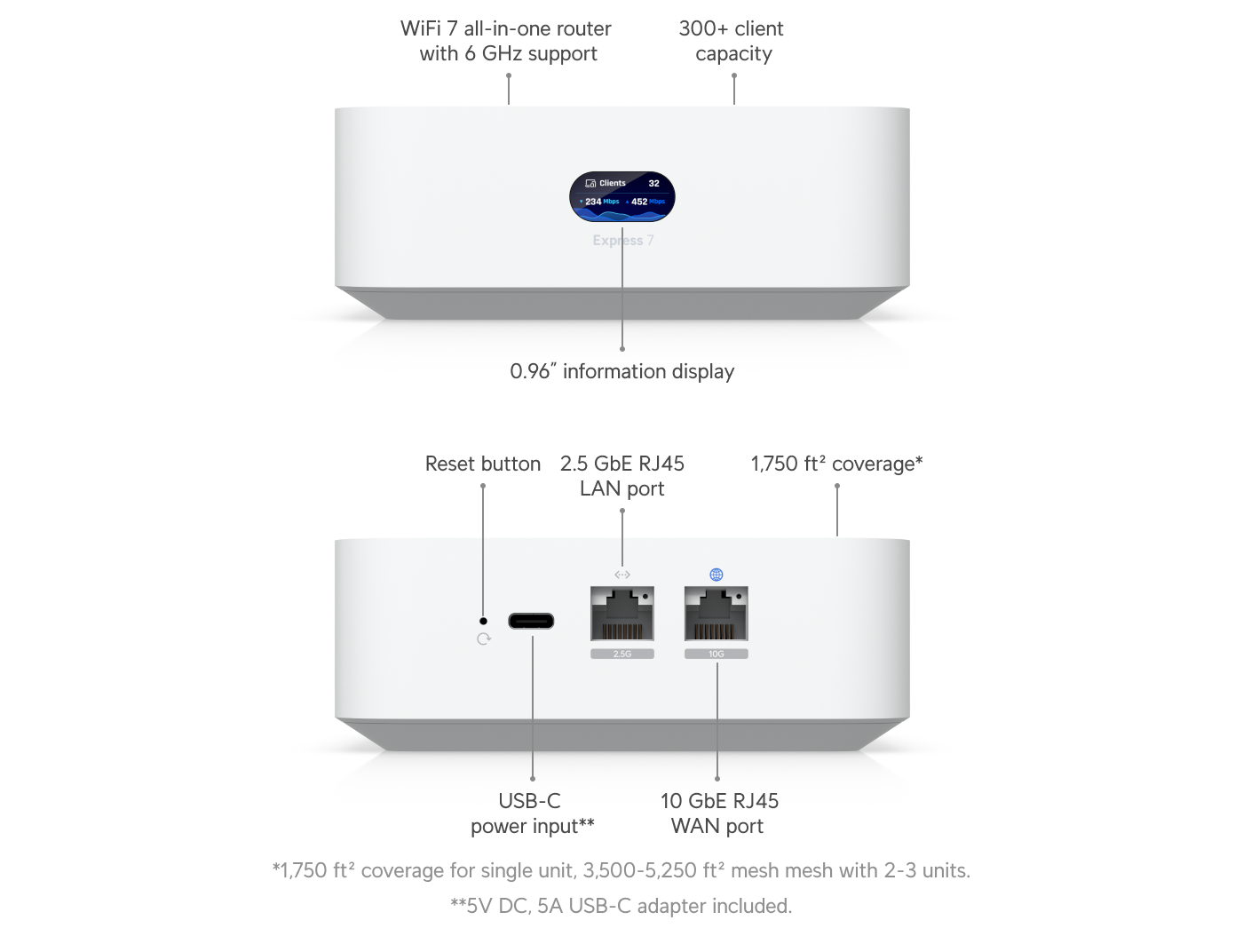

Hardware

• CPU: Quad-core ARM® Cortex®-A53 @ 1.5 GHz

• Memory: 3 GB RAM

• WAN: 1× 10 GbE RJ45

• LAN: 1× 2.5 GbE RJ45

• Management Interfaces: Ethernet, Bluetooth

• Power: USB-C (5V DC / 5A, adapter included)

• Max Power Consumption: 22W

• Display: 0.96" status screen

• Reset Button: Yes

• ESD/EMP Protection: Air ±8kV, Contact ±4kV

Wi-Fi

• Standard: Wi-Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax

• Bands: 2.4 GHz, 5 GHz, 6 GHz

• MIMO Configuration:

  • 2.4 GHz: 2×2 MU-MIMO (688 Mbps)

  • 5 GHz: 2×2 MU-MIMO (4.3 Gbps)

  • 6 GHz: 2×2 MU-MIMO (5.7 Gbps)

• Antenna Gain: 4 dBi / 7 dBi / 6 dBi

• TX Power: 23 / 26 / 24 dBm

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

• Max Clients: 300+

• Coverage Area: ~140 m² (1,500 ft²)

• Advanced Features: Wireless Mesh, MLO (Fronthaul), PPSK

Networking & Security

• Firewall: Stateful, Layer 7, Zone-Based, Content Filtering

• IPS/IDS: Up to 2.3 Gbps, 20K+ CyberSecure signatures

• VPN: Site Magic, IPsec, OpenVPN, WireGuard (server/client), L2TP, Teleport

• Segmentation: VLAN/Subnet-based

• Additional Features: Ad Blocking, DPI, Traffic Identification

Environment

• Operating Temperature: -10 to 40°C

• Operating Humidity: 5–95% (non-condensing)

• Compliance: NDAA
