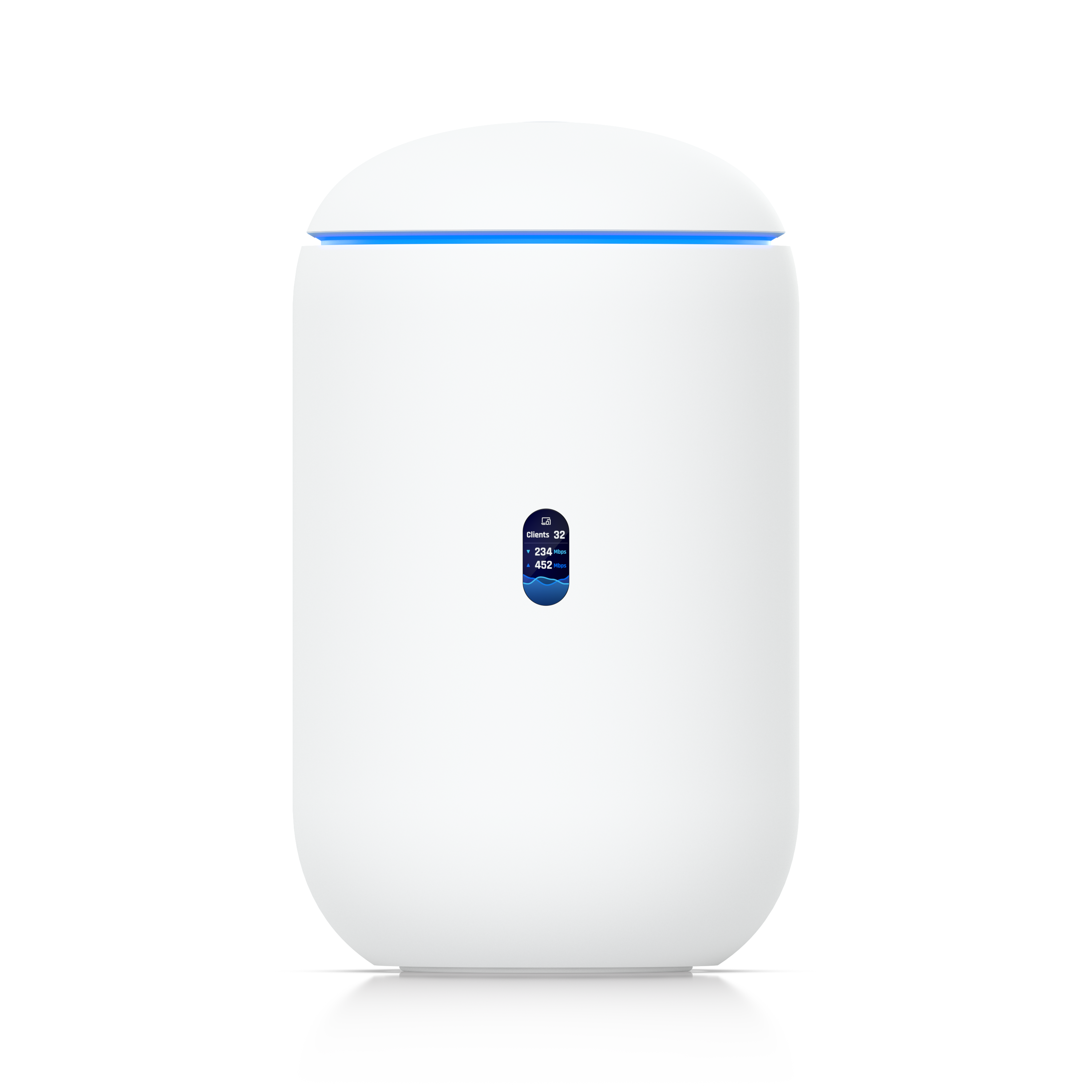

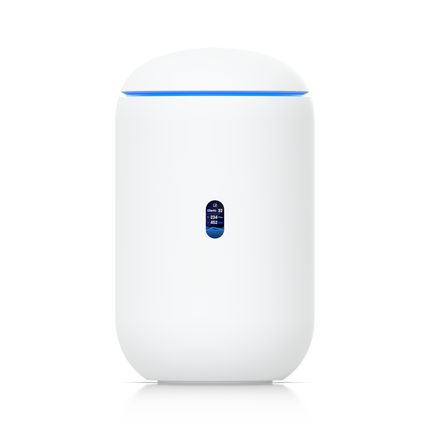

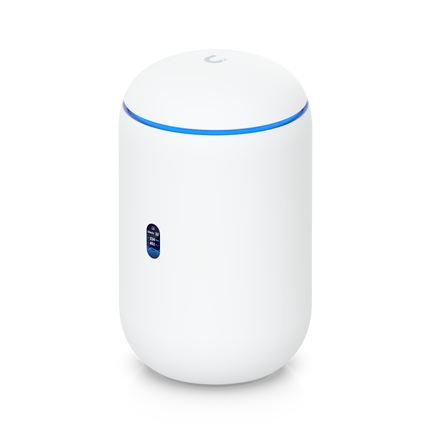

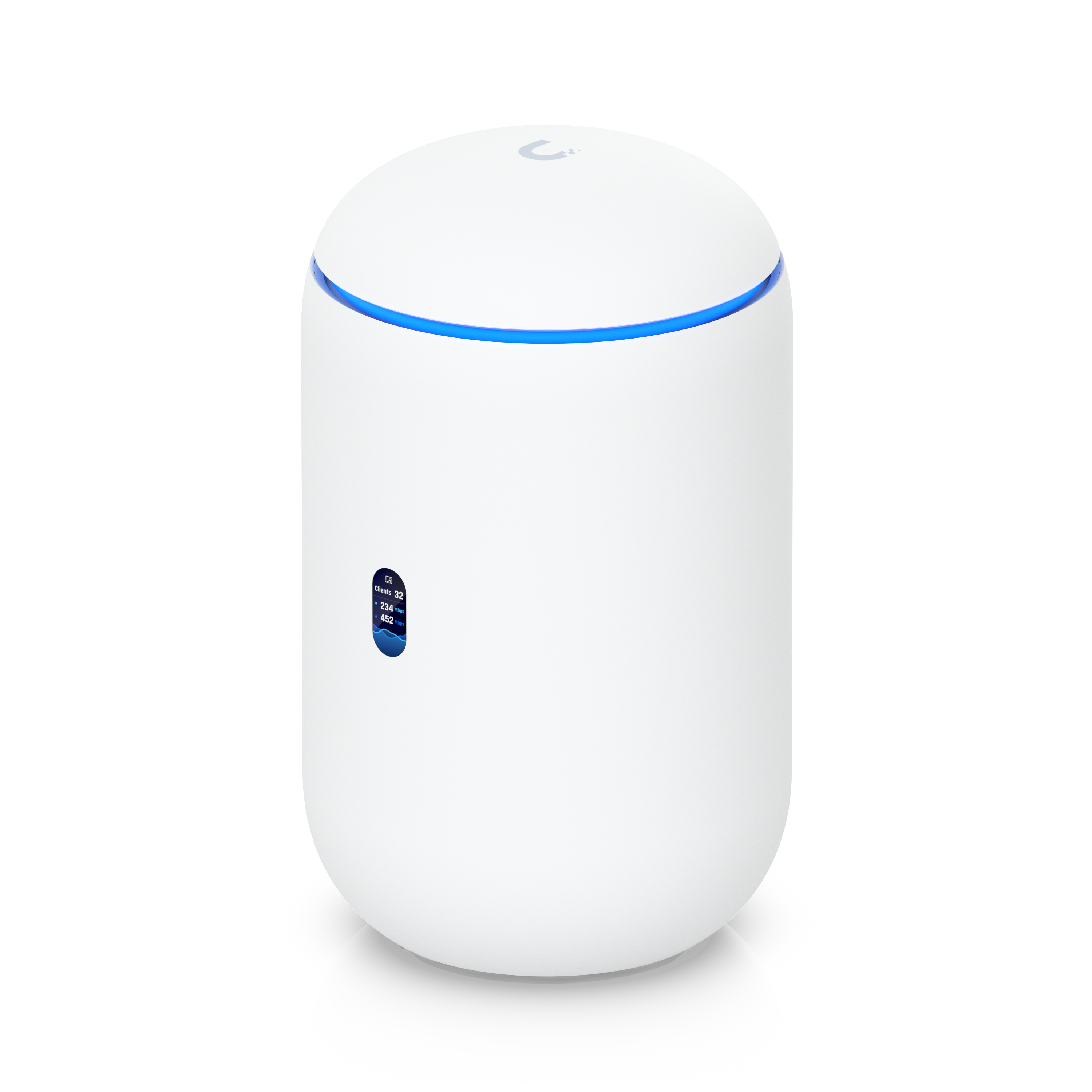

UniFi Dream Router 7 (UDR-7): Next-Generation Wi-Fi 7 Cloud Gateway Router

The Ubiquiti UniFi Dream Router 7 (UDR-7) is a next-generation Wi-Fi 7 router designed for small businesses and advanced home users. It combines multi-gigabit performance, enterprise-grade security, and centralized UniFi OS management — all in a compact, elegant form factor.

The Next-Era UniFi Router: Wi-Fi 7 + Integrated Cloud Gateway

The UDR-7 redefines what a compact UniFi router can do. Featuring tri-band Wi-Fi 7 (802.11be), multi-gigabit WAN/LAN including 10G SFP+, advanced network security, and full UniFi OS integration, it delivers the perfect balance of speed, stability, and ease of management for modern fiber-powered networks.

Designed to take full advantage of multi-gigabit fiber connections, the UDR-7 offers premium performance in a sleek, easy-to-deploy package.

Why Choose the UDR-7?

⚡ Ultra-Fast, Low-Latency Wi-Fi 7

Powered by Wi-Fi 7 (802.11be) with tri-band operation, the UDR-7 achieves theoretical speeds above 10 Gbps and ultra-low latency — ideal for gaming, streaming, and mission-critical applications.
With MU-MIMO, OFDMA, and a dedicated 6 GHz band, it supports hundreds of simultaneous clients without performance drops.

🌐 Multi-Gigabit Fiber-Ready Connectivity

Includes a 10G SFP+ WAN port and 2.5GbE WAN/LAN ports, eliminating bottlenecks and ensuring full utilization of high-speed fiber connections.
Perfect for environments with NAS, servers, or high-throughput workstations.

🔧 Centralized UniFi OS Management

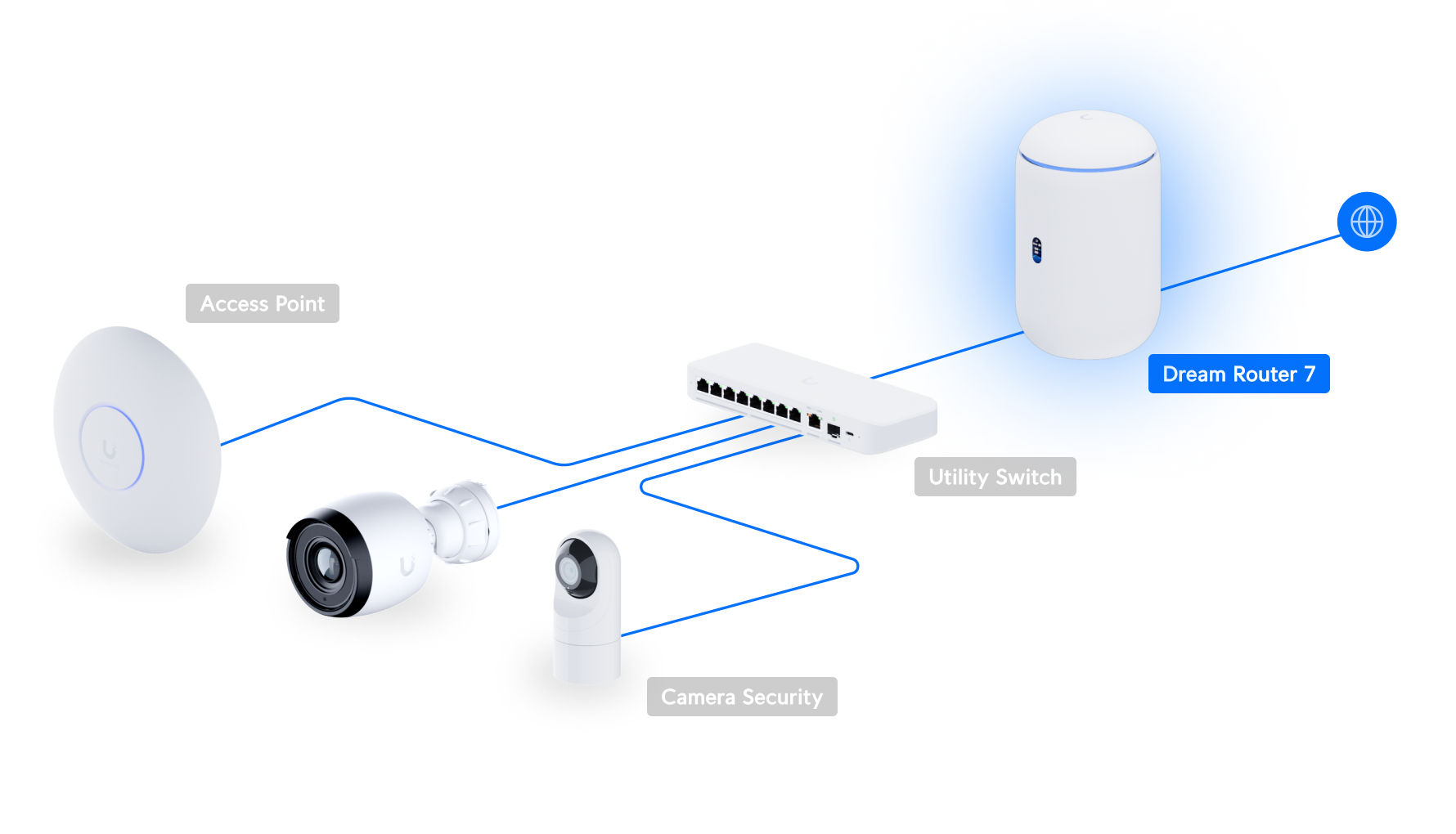

Functions as a complete UniFi OS console — manage your Wi-Fi, wired network, and 30+ UniFi devices directly through the UniFi Network app.
Supports additional UniFi applications such as Protect (CCTV), Talk (VoIP), and Access (entry control).

🛡️ Enterprise-Grade Security

Built-in stateful and Layer 7 firewall, deep packet inspection (DPI), and intrusion detection/prevention (IPS/IDS up to 2.3 Gbps).
Also features content filtering, ad-blocking, VLAN segmentation, and advanced VPNs including Site Magic and Teleport VPN.

🔌 Integrated PoE and Local Storage

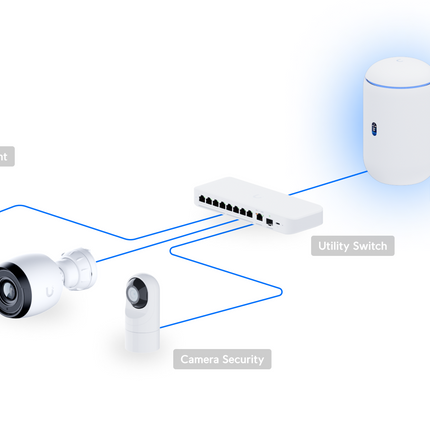

One 2.5GbE LAN port supports PoE (802.3af, 15.4W) — ideal for powering UniFi APs or cameras directly.
Includes a pre-installed 64 GB microSD card for UniFi Protect video storage.

UDR-7 vs Alternatives

• UDR-7 vs UDR (Wi-Fi 6): Adds tri-band Wi-Fi 7, 10G/2.5G ports, faster IPS/IDS, and upgraded hardware (Quad-core 1.5 GHz + 3 GB RAM) — delivering far greater performance.

• UDR-7 vs UDM-Pro: Unlike the rack-mounted, Wi-Fi-less UDM-Pro, the UDR-7 provides built-in Wi-Fi 7 in a compact form, ideal for small spaces and all-in-one deployments.

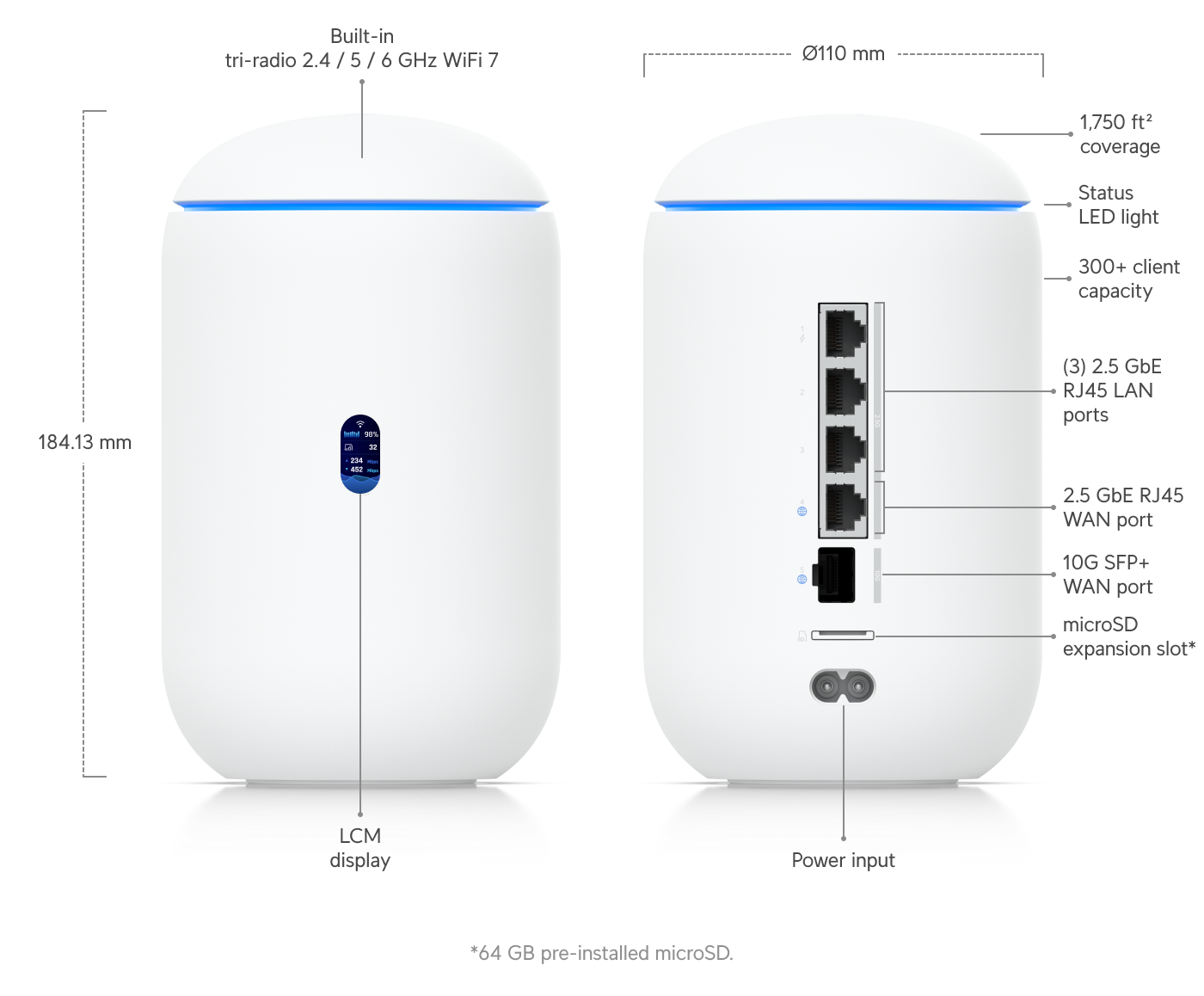

Technical Specifications

Hardware

• CPU: Quad-core ARM® Cortex®-A53 @ 1.5 GHz

• Memory: 3 GB

• Storage: 64 GB microSD (pre-installed for UniFi Protect)

Networking

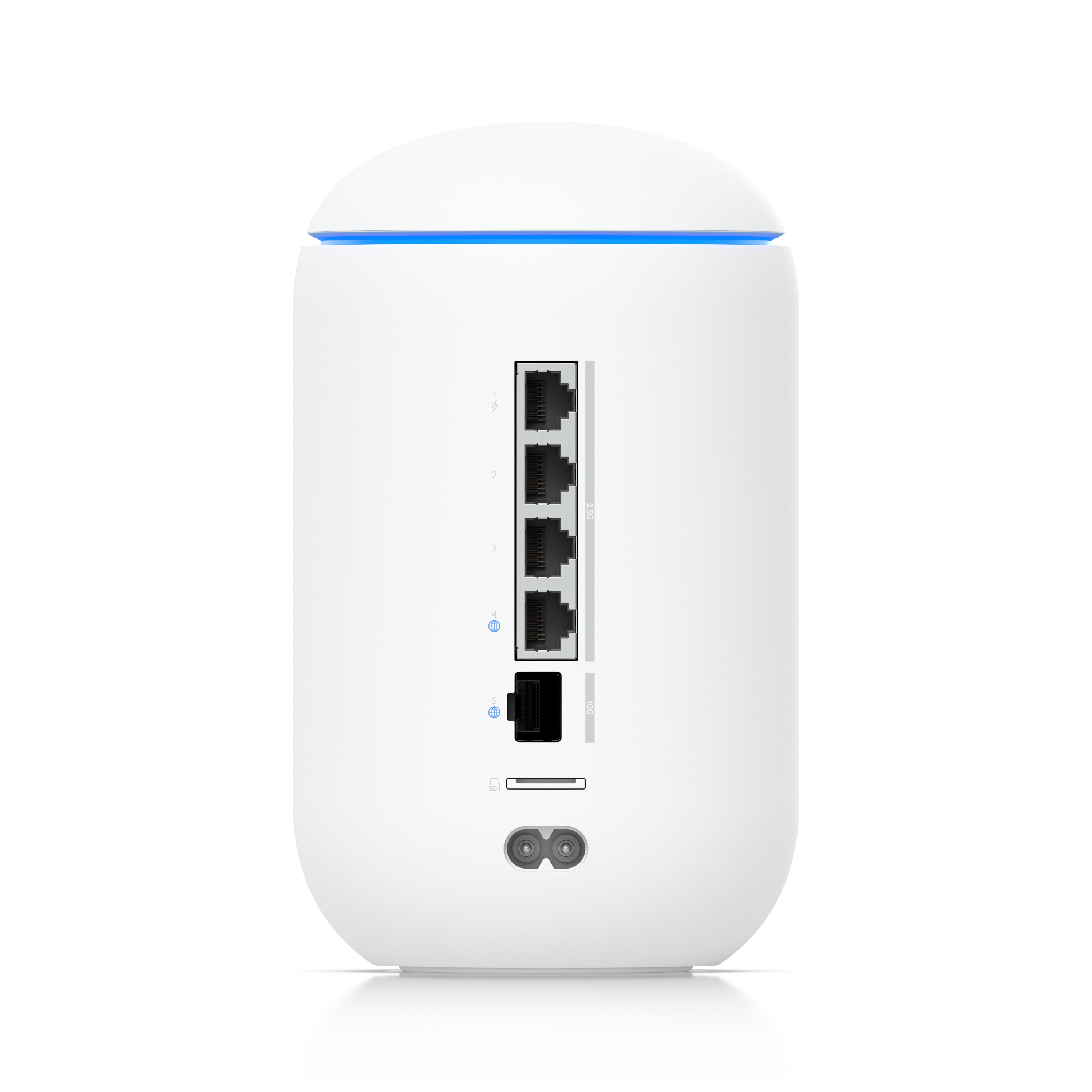

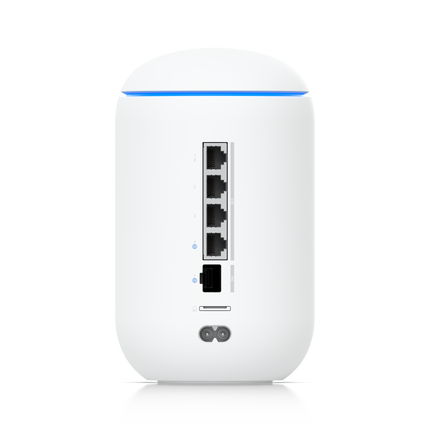

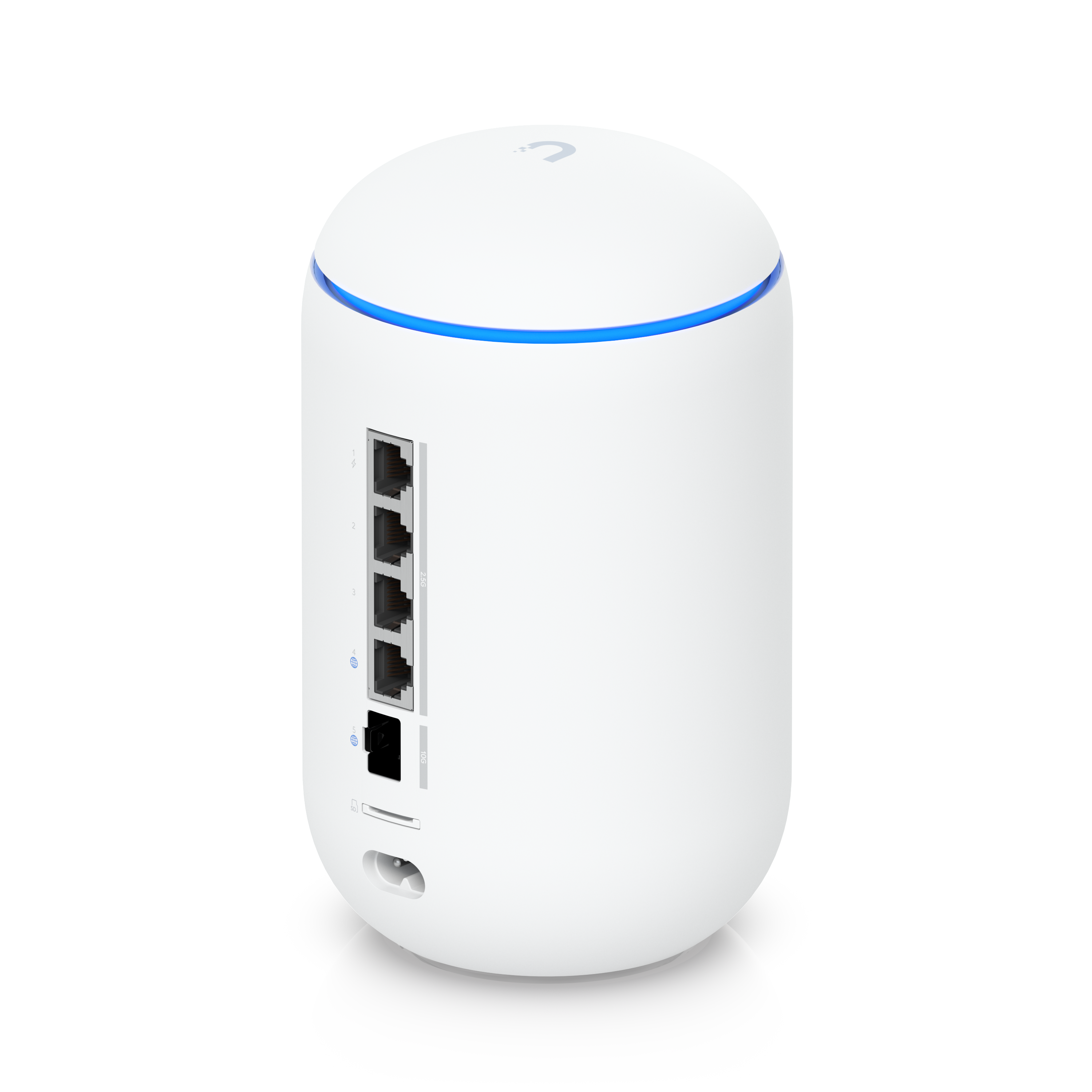

• WAN Ports: 1× 10G SFP+, 1× 2.5GbE RJ45

• LAN Ports: 3× 2.5GbE RJ45 (1 with PoE 802.3af – 15.4W)

Wi-Fi

• Standard: Wi-Fi 7 Tri-Band (6 GHz / 5 GHz / 2.4 GHz)

• Compatibility: 802.11a/b/g/n/ac/ax/be

• Theoretical Speeds:

  • 6 GHz: 5.7 Gbps

  • 5 GHz: 4.3 Gbps

  • 2.4 GHz: 688 Mbps

Performance

• IPS/IDS Throughput: 2.3 Gbps

• Managed UniFi Devices: 30+

• Concurrent Clients: 300+

Mechanical

• Dimensions: Ø110 × 184.1 mm

• Display: 0.96" LCM touchscreen
