Description

U6 Enterprise In-Wall: WiFi 6E Wall-Mount Access Point with 10 Spatial Streams, 2.5GbE Uplink, and Integrated 4-Port Switch (with PoE Out)
Next-generation in-wall WiFi 6E with enterprise performance, built-in switching, and sleek design.

Ubiquiti UniFi 6 Enterprise In-Wall (U6-Enterprise-IW): Advanced WiFi 6E with Integrated Multi-Port Switch — Built Into the Wall

The Ubiquiti UniFi 6 Enterprise In-Wall (U6-Enterprise-IW) is a Tri-Band WiFi 6E (802.11ax) access point designed to deliver high-performance, low-latency connectivity directly from the wall — ideal for enterprise-grade, high-density environments.
With 10 spatial streams (4x4 on 6 GHz, 4x4 on 5 GHz, and 2x2 on 2.4 GHz) and aggregate throughput exceeding 10 Gbps, it supports 600+ concurrent clients with improved efficiency and reduced latency.
Beyond wireless performance, it integrates a 4-port Gigabit Ethernet switch, including one PoE Out port (when powered via PoE++), allowing you to connect wired devices directly at the installation point.
Its 2.5GbE uplink ensures full utilization of WiFi 6E speeds and modern multi-gigabit infrastructure.

With its refined, minimalist design, the U6-Enterprise-IW replaces a standard wall outlet, combining next-generation WiFi 6E and multi-port wired connectivity in a single device — perfect for hotel rooms, offices, meeting spaces, and high-end residences.

Why Choose the U6-Enterprise-IW?

Tri-Band WiFi 6E with 10 Spatial Streams

Delivers up to 4.8 Gbps (6 GHz), 4.8 Gbps (5 GHz), and 573 Mbps (2.4 GHz) with 4x4 + 4x4 + 2x2 MIMO.
The new 6 GHz band offers 160 MHz channels, reduced interference, and dramatically higher throughput.

Extreme Capacity (600+ Clients)

Handles dense environments with hundreds of simultaneous connections — ideal for hotels, modern offices, or large meeting spaces.

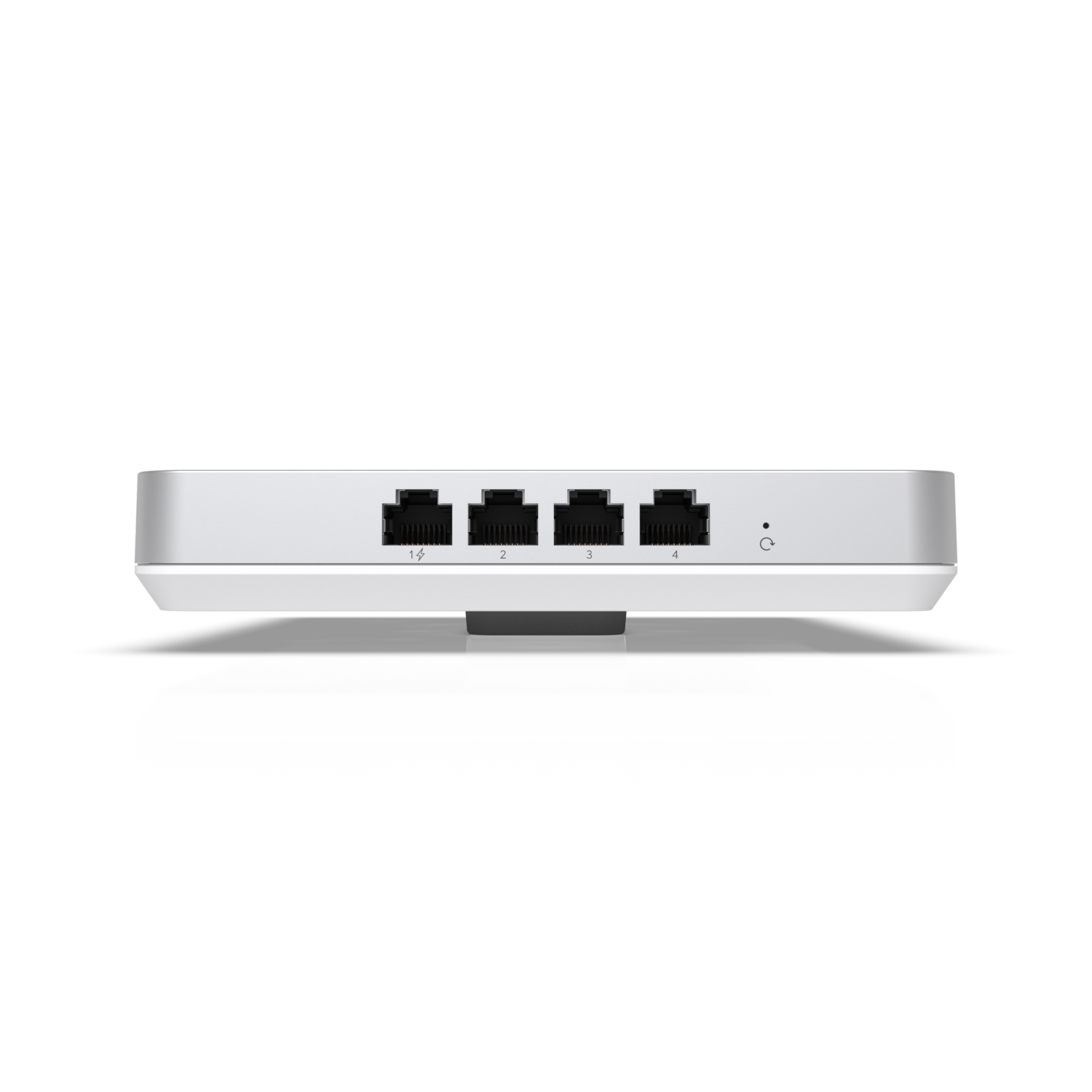

Integrated 4-Port Gigabit Switch

Includes three Gigabit downlink ports plus one PoE Out port (802.3af) when powered via PoE++, allowing you to connect wired devices like IP phones, cameras, or PCs directly on the wall.

2.5GbE Multi-Gigabit Uplink

A 2.5GbE RJ45 uplink ensures full WiFi 6E and LAN performance, removing the limitations of standard Gigabit connectivity.

Advanced UniFi Features

Managed through the UniFi Network platform (v6.0.45 or later) with:

• Fast roaming (802.11r/k/v)

• WPA3 and PPSK security

• Band steering and Hotspot 2.0

• Dynamic RADIUS with TLS (RadSec)

• Custom captive portals, VLANs, and bandwidth control

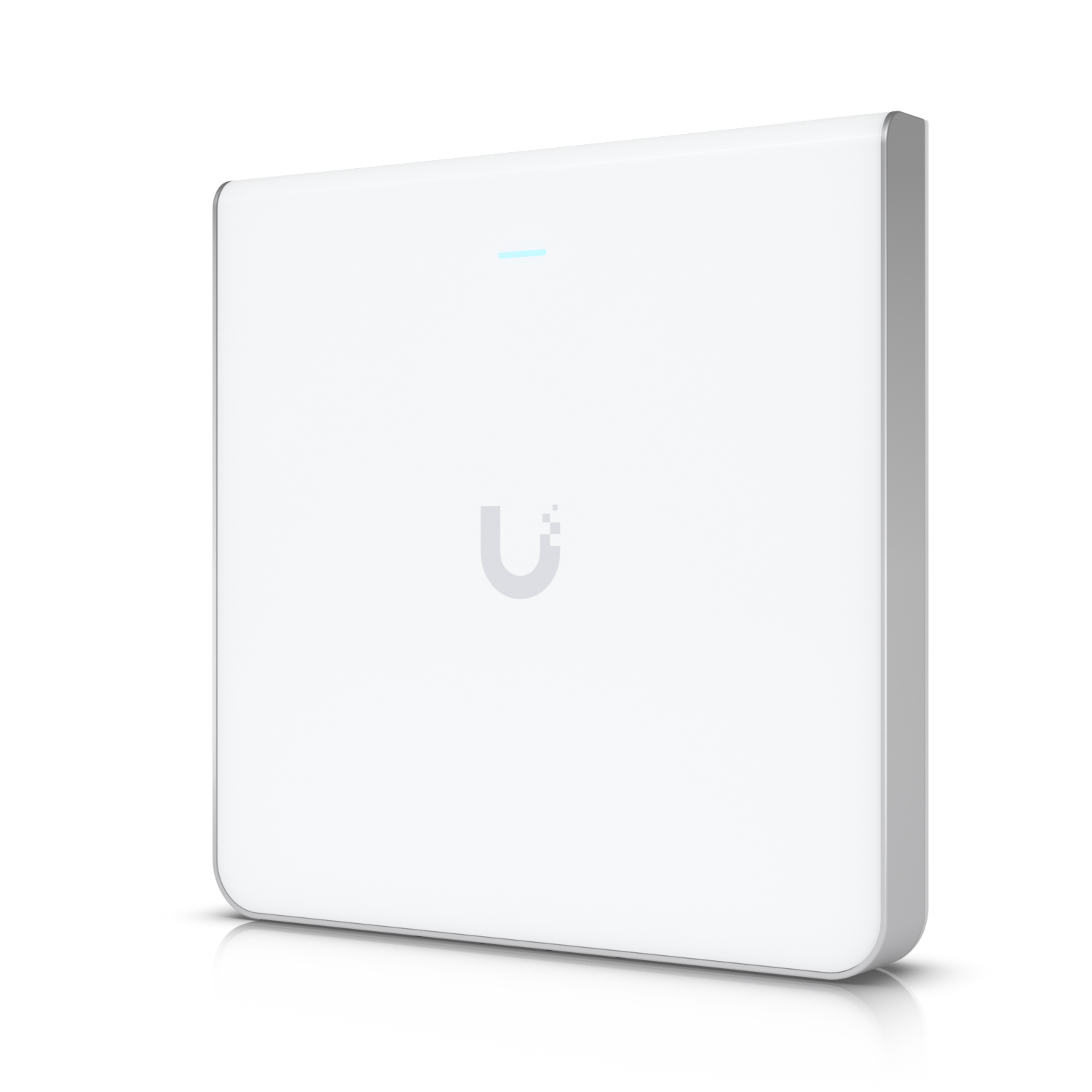

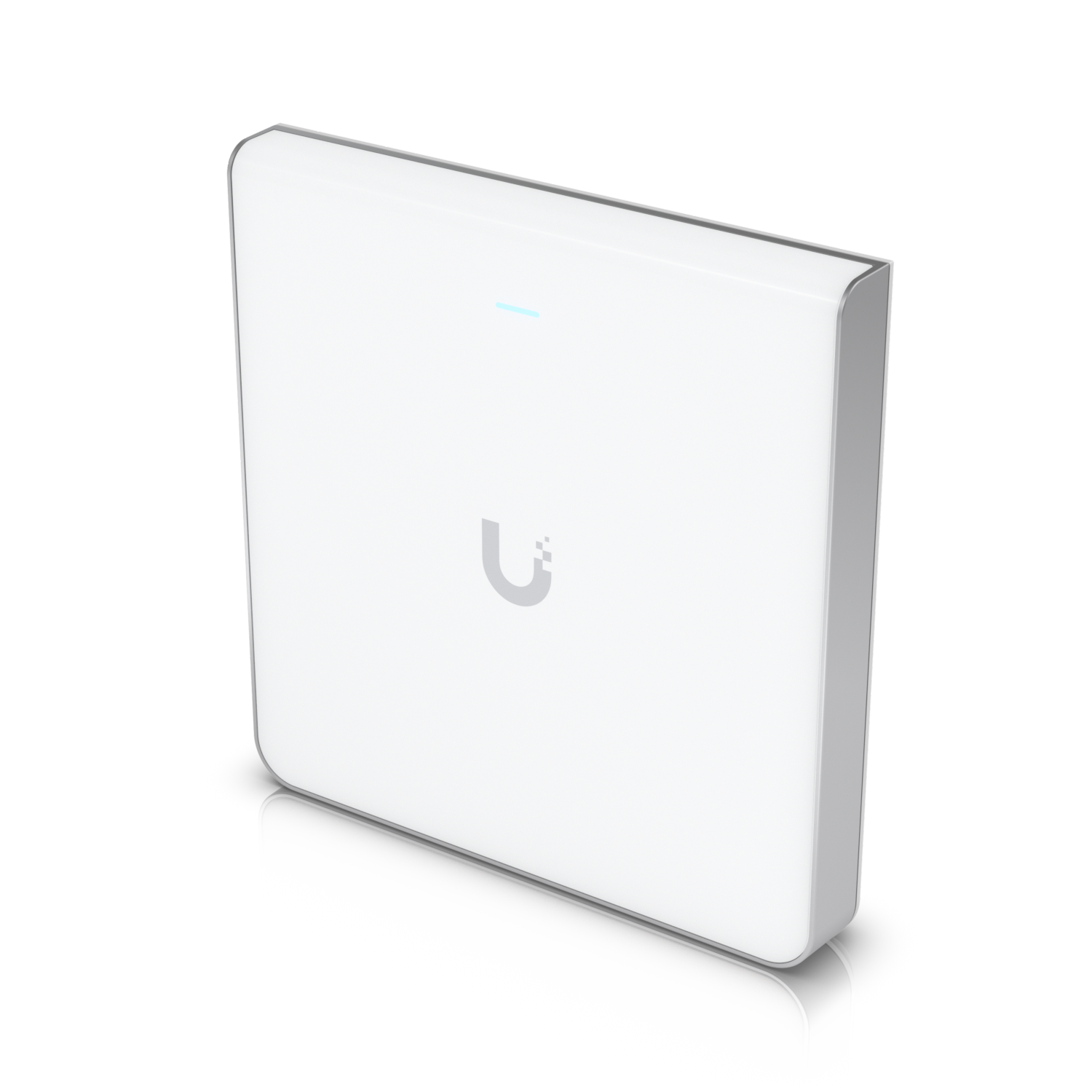

Elegant Wall-Mount Design

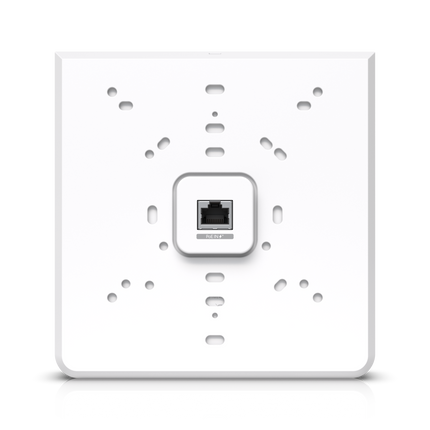

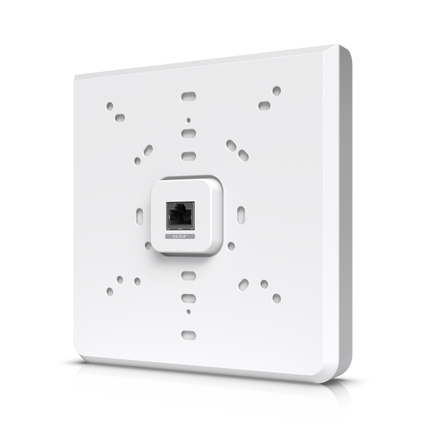

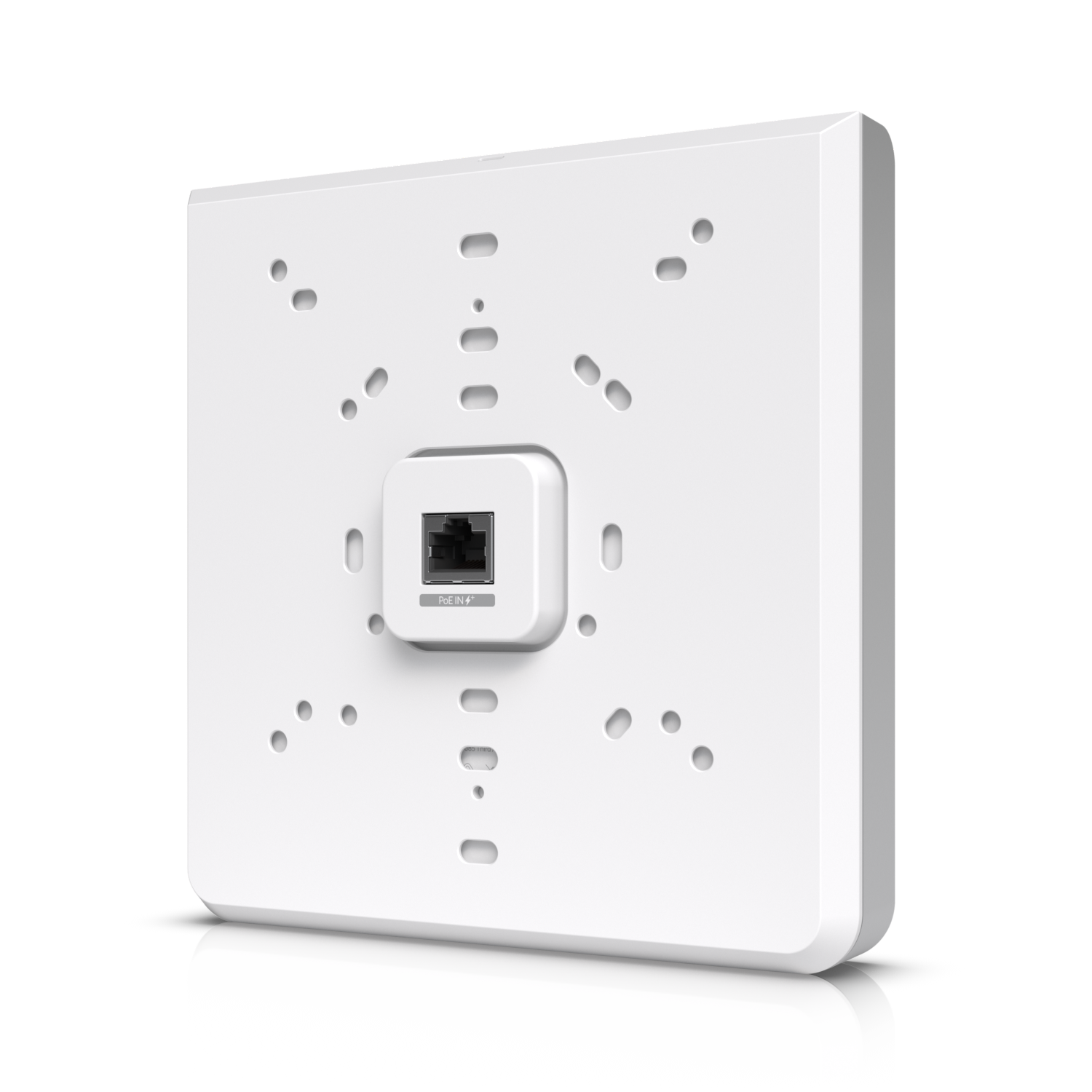

Mounts into standard EU/US wall boxes, replacing a traditional Ethernet outlet.
Crafted from aluminum and polycarbonate for durability and a modern, unobtrusive look.

Key Specifications

• Dimensions: 159.7 × 156.7 × 33.8 mm

• Weight: 884 g

• WiFi Standard: WiFi 6E (802.11ax)

• Spatial Streams: 10 (2x2 @ 2.4 GHz, 4x4 @ 5 GHz, 4x4 @ 6 GHz)

• Max Throughput: 4.8 Gbps (6 GHz), 4.8 Gbps (5 GHz), 573 Mbps (2.4 GHz)

• Coverage: up to 115 m²

• Clients: 600+

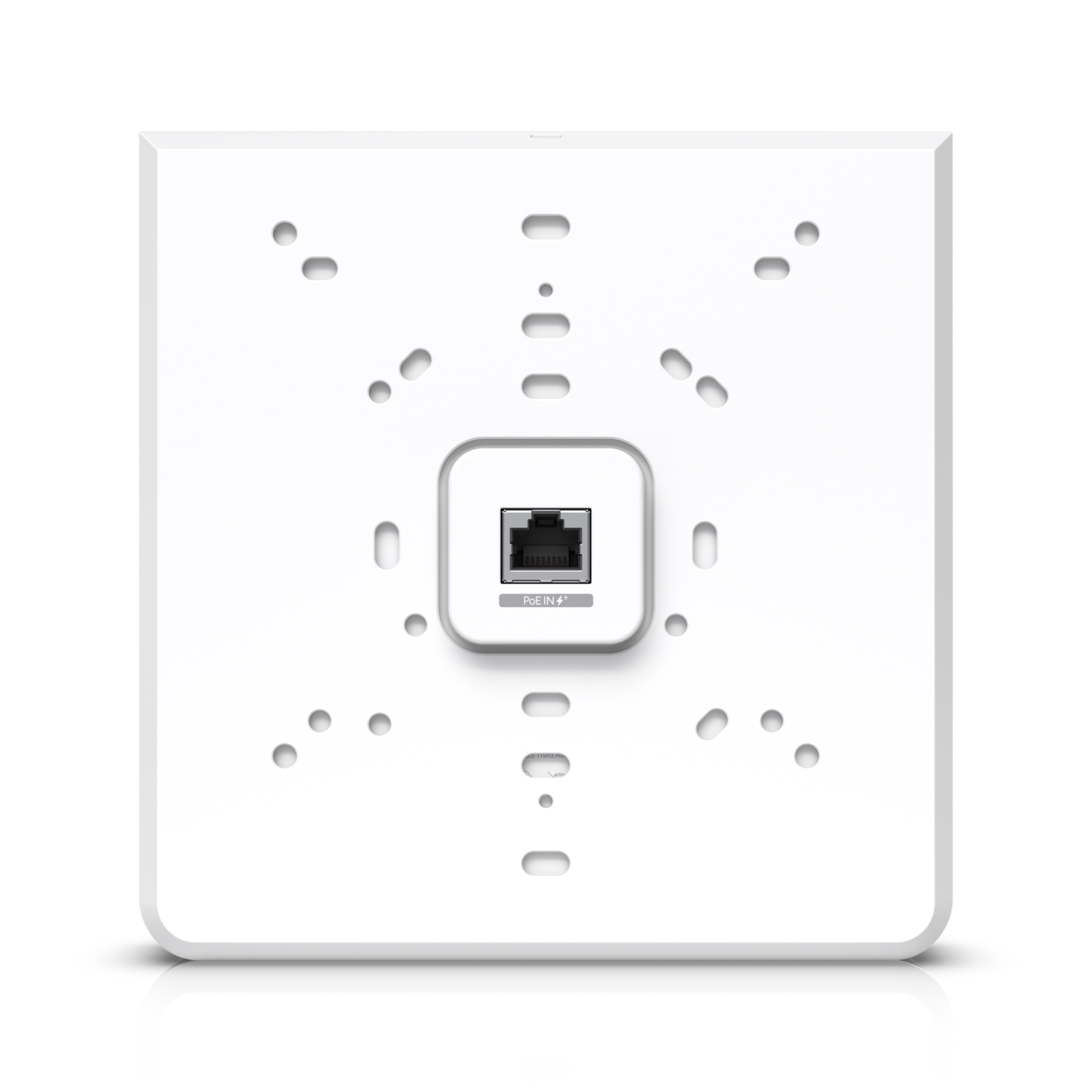

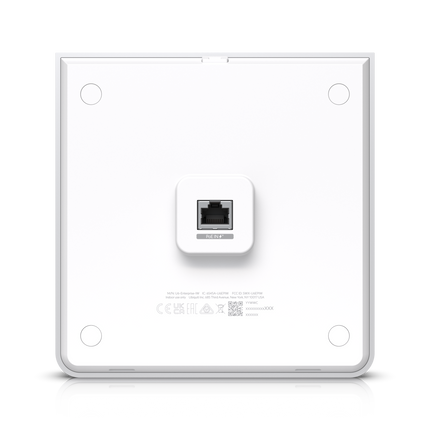

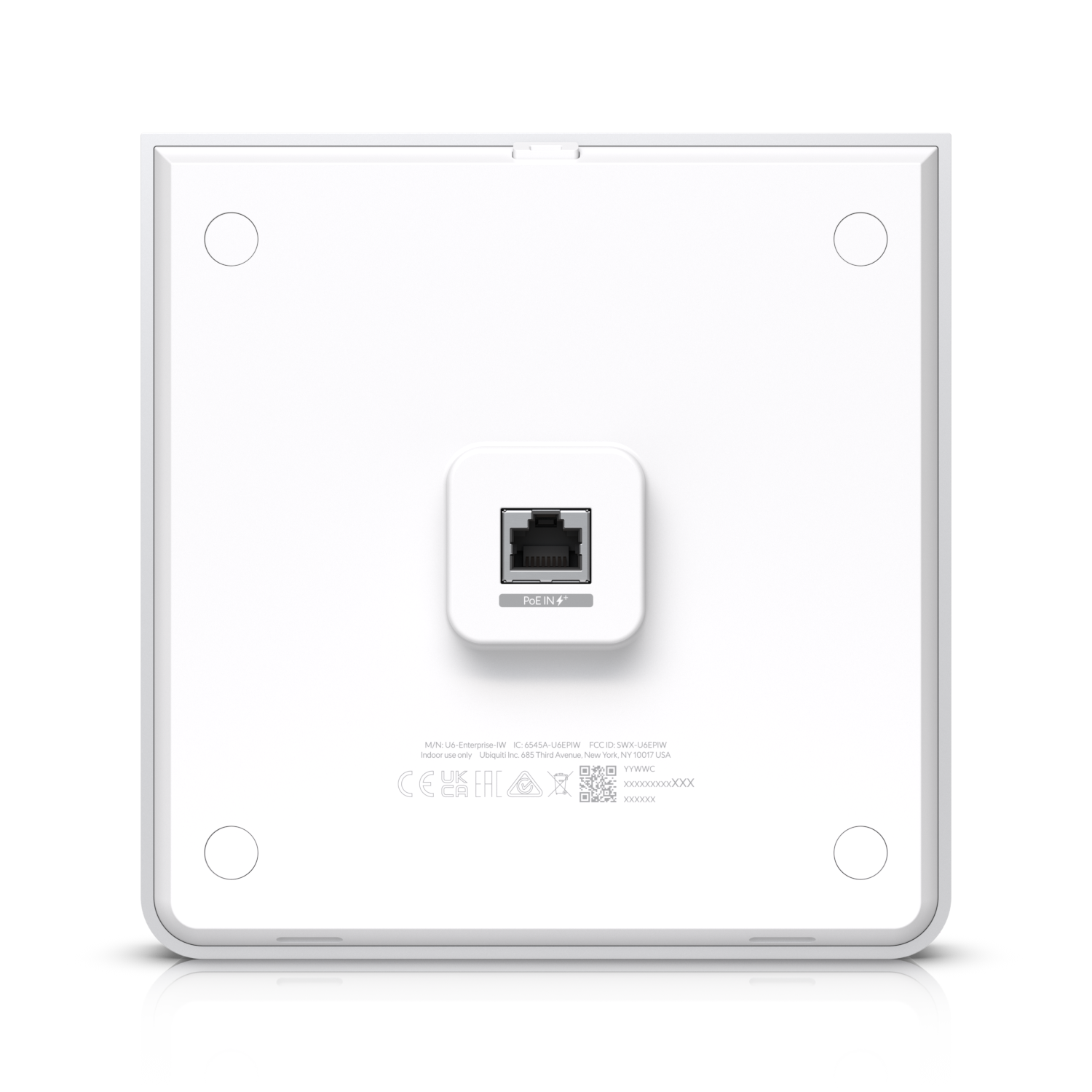

• Uplink: 1× 2.5GbE RJ45 (input)

• Downlink: 4× GbE RJ45 (1× PoE Out, requires PoE++)

• Power: PoE+ (802.3at) / PoE++ (802.3bt for PoE Out)

• Max Consumption: 21 W (excluding PoE Out)

• Operating Temp: -30°C to 60°C

• Management: UniFi Network (v6.0.45+)

• Certifications: CE, FCC, IC, Anatel, NDAA Compliant

Ideal For

Hotels and Modern Dormitories

Deliver WiFi 6E Tri-Band performance plus wired LAN and PoE in every room.

Offices and Meeting Rooms

Combine high-capacity wireless with convenient wall-mounted wired access.

Premium Residences and Smart Homes

Discreet, integrated connectivity for multi-gigabit homes with extra LAN ports in key areas.

High-Density Environments

Supports 600+ simultaneous users, ensuring maximum performance and reliability in demanding deployments.
