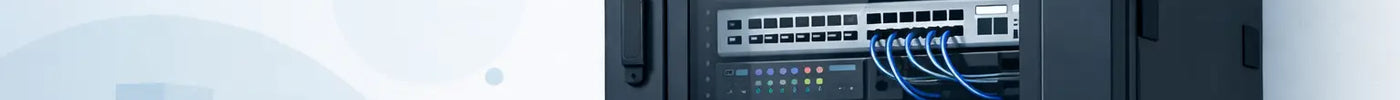

Wall Mount Rack Cabinet for Network Equipment
, 8 min reading time
Choose the right wall mount rack cabinet for network equipment with practical sizing, airflow, cable management, and install tips for clean racks.
A bad wall cabinet shows its problems fast. The door won’t clear the patch cords, the switch cooks itself at the top of the enclosure, and the service loop you thought was generous turns into a tangled knot the first time someone needs to move a patch. A well-chosen wall mount rack cabinet for network equipment does the opposite - it protects the gear, keeps the cabling readable, and makes the whole installation easier to live with for years.
That matters whether you are fitting out a small office IDF, cleaning up a retail back room, or building a serious homelab that needs to look as disciplined as it performs. Wall cabinets are often treated like a space-saving compromise. In practice, they can be the best format for edge networking if you size them correctly and think beyond just rack units.
What a wall mount rack cabinet for network equipment should solve
A wall cabinet is not simply a place to hang a switch. It is a control point for airflow, cable routing, access, physical protection, and visual order. If any one of those is ignored, the install may work on day one but become annoying to maintain by month six.
For most deployments, the cabinet needs to accommodate four things at once: active equipment, passive cabling hardware, power distribution, and working clearance. The last one is where many buying mistakes happen. People count rack units, confirm that the switch and patch panel fit, and stop there. Then the cabinet arrives and there is no practical depth for bend radius, no side access, or no room to close the front door once patch cords are installed.
A good enclosure supports the way the rack will actually be serviced. That includes labeling, cable entry, future adds, and the reality that not every installer who touches it later will be the same person who built it.
Size is more than rack units
The most common first question is whether a 6U, 9U, or 12U cabinet is enough. Rack height matters, but width and depth usually decide whether the build feels clean or cramped.
Rack height and growth
If you already know the equipment list, calculate the occupied rack units and add headroom. For a compact network stack, that might mean a patch panel, a switch, a shelf for gateway or modem hardware, and perhaps a small UPS if the cabinet is designed to support the load and depth. Even in modest builds, leaving 20 to 30 percent free space is sensible. Not because empty U space looks nice, but because networks tend to gain devices over time.
A cabinet that starts full tends to age badly. Expansion gets improvised, cable paths tighten up, and maintenance takes longer than it should.
Depth and real device fit
Depth is where wall cabinets become either excellent or frustrating. Some network switches are shallow and forgiving. Others, especially when loaded with patch cords, power leads, and uplinks, need more clearance than the spec sheet suggests. If you are using a patch panel in front of a switch, account for the cable bend and connector protrusion, not just the chassis depth.
For installations with keystone panels, cable managers, and rear cable dressing, deeper cabinets usually reward you with cleaner results. The trade-off is wall projection. In a narrow hallway or utility room, a deep cabinet may be physically correct for the gear but wrong for the space.
Weight and wall structure
Wall mounting changes the structural conversation. The fully loaded cabinet weight includes not only the enclosure and equipment, but also copper cabling, power accessories, and sometimes a UPS. That load must match the wall type, anchor method, and mounting surface condition.
This is not an area for guesswork. Concrete, brick, stud walls, and hollow partitions each demand a different approach. If the wall is questionable, a floor-standing solution may be safer and easier to service.
Airflow is not optional
Many small network cabinets fail because cooling was treated as secondary. Passive ventilation can be enough for low-power switching and patching, but only when the enclosure has sensible venting and the room itself is not already warm.
As soon as you add PoE switching, gateways, NVRs, or other heat-producing devices, temperature management deserves a closer look. A compact enclosure concentrates heat quickly, especially near the top. If the cabinet will hold PoE switches feeding access points, cameras, or phones, assume more thermal stress than a basic non-PoE setup.
The answer is not always fans. Fans add noise, dust movement, and another failure point. Sometimes the better choice is a larger cabinet with better passive airflow and more free space between heat sources. In other cases, fan trays make sense. It depends on device power draw, room temperature, and how enclosed the installation really is.
Cable management is where quality shows
A clean rack is easier to troubleshoot, easier to expand, and much less likely to suffer accidental disconnects. The cabinet should support that outcome instead of fighting it.
Front and rear cable paths
Think about where cables enter the cabinet and where they need to land. Top entry may suit overhead tray or conduit. Bottom entry may be cleaner for low wall penetrations. Removable gland plates or brush openings help keep entries tidy while protecting cable bundles.
Inside the cabinet, leave room for service loops that are controlled rather than stuffed. Patch cords should route with intention, not spill across device faces. This is where matching the cabinet with proper horizontal or vertical cable management can change the whole finish of the build.
Patch panel spacing
If you are mounting a patch panel directly above or below a switch, consider the patch cord path before you lock in the layout. A tight 1U-to-1U arrangement can work, but not always elegantly, especially with thicker category cables or shielded assemblies. Sometimes a cable manager or a deliberate spacer panel creates a better result than squeezing everything as tightly as possible.
The best-looking racks usually come from restraint. Enough density to stay compact, enough breathing room to stay readable.
Access and serviceability matter later, not just on install day
A cabinet can look excellent when first dressed and still be frustrating every time someone needs to work inside it. Front access alone may be enough for simple patching, but more complex builds benefit from removable side panels or a swing-out wall bracket design.
That becomes especially useful when terminating bulk cable, adjusting uplinks, or tracing faults. If the rear of a patch panel or switch is nearly impossible to reach, small maintenance jobs become time-consuming and messy. Installers know this cost well. The cabinet should save labor over its lifespan, not just fit the shopping cart.
Locking doors and panels also deserve context. In a public or semi-public area, physical security matters. In a locked comms room or dedicated homelab, easy access may matter more than aggressive locking. There is no universal answer. Choose based on environment and who will touch the equipment.
Matching the cabinet to the deployment
A wall mount rack cabinet for network equipment makes the most sense when floor space is limited, the hardware count is moderate, and the install benefits from being elevated and protected. Small branch offices, hospitality spaces, classrooms, workshop networks, and home utility rooms are common examples.
It is less ideal when the site has substantial UPS requirements, large-core cabling bundles, many active devices, or rapid growth expected within a short period. At that point, the wall cabinet can become a temporary fix that soon feels undersized.
For homelab builders, the decision often comes down to discipline. If the goal is a compact, polished network zone with a switch, router, patching, and maybe a small NVR, a wall cabinet can look outstanding and work beautifully. If the project is drifting toward servers, heavy battery backup, and constant hardware rotation, a floor rack may be the more honest choice.
The details that separate a good buy from a nuisance
Build quality shows up in the hinges, rail adjustment, panel fit, finish, and mounting hardware support. A cabinet does not need luxury features, but it should feel square, stable, and predictable to work with. Poor tolerances waste time. Misaligned doors, flimsy rails, and awkward cable entries tend to create compromises everywhere else.
This is also where curated sourcing matters. Products selected by installers tend to avoid the gimmicks and focus on useful details: sensible depth options, proper ventilation, clean powder coating, removable panels, and rail layouts that make patching straightforward. At NetPatch, that is exactly the point of the product mix - choosing components that help produce organized, serviceable network builds instead of just filling a category page.
Before ordering, verify the cabinet’s usable depth, rail adjustability, maximum load rating, door style, cable entry points, and whether the side panels are removable or lockable. Those specifications affect the installation far more than marketing photos do.
Plan the finished rack, not just the cabinet purchase
The right cabinet is only one part of the outcome. The better question is what the finished rack should feel like to maintain. If you open the door six months from now, will every cable path still make sense? Will the switch have enough airflow? Can a technician replace a patch lead without disturbing five others? Can the next device be added without rebuilding the whole layout?
That is the standard worth buying against. A wall cabinet should reduce friction, protect the equipment, and make the network look as deliberate as it performs. When it does, the rack stops being a hidden utility box and becomes a clean, dependable part of the infrastructure.
